SMC CDQ2B32-60DM CDQ2KB32-35DM Compact Pneumatic Cylinder 32mm Bore Pair

(No reviews yet) Write a Review
SKU:
48120
MPN:
CDQ2B32-60BM / CDQ2KB32-35DM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

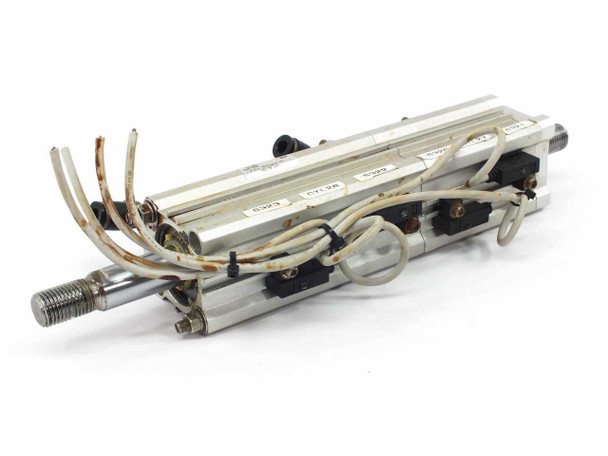

  • SMC CDQ2B32-60DM and CDQ2KB32-35DM compact pneumatic cylinder pair – top angled view showing both cylinders mounted together with wiring leads
  • SMC compact pneumatic cylinder pair – side view showing push-in fittings and pneumatic tubing ports along the bottom
  • SMC CDQ2B32-60DM label closeup – model number, J79L lot code, 1.0 MPa / 10.2 Kgf/cm² / 145 PSI max pressure, Made in Japan
  • SMC CDQ2KB32-35DM label closeup – model number, J79L lot code, 1.0 MPa / 10.2 Kgf/cm² / 145 PSI max pressure, Made in Japan

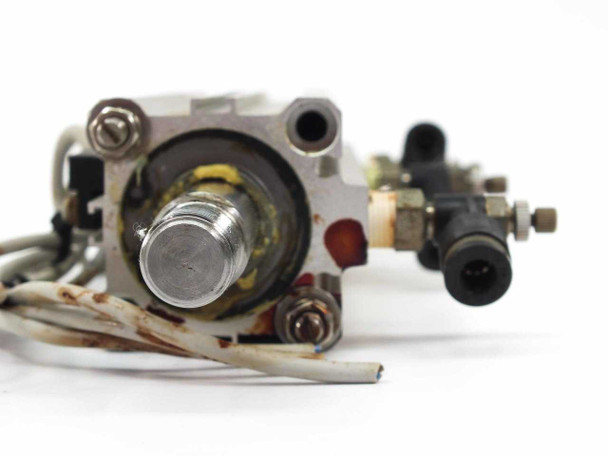

  • SMC pneumatic cylinder rod end closeup – showing threaded piston rod, mounting hardware, and surface rust on end cap and fasteners
  • SMC cylinder side view – push-in pneumatic fittings and flow control valves with visible rust and wear on housing surface
  • SMC compact cylinder opposite rod end – showing piston rod end detail, mounting face, rust on fasteners, and push-in fittings
$95.00
Was: $200.00
Current Stock: 2

Sold Out

Description

SMC CDQ2B32-60DM CDQ2KB32-35DM Compact Pneumatic Cylinder 32mm Bore Pair

This is a matched pair of SMC CQ2 series double-acting compact pneumatic cylinders with 32mm bore diameter. The pair consists of one CDQ2B32-60DM with 60mm stroke and one CDQ2KB32-35DM with 35mm stroke, rated for 1.0 MPa maximum pressure.

Specifications & What's Included

  • Brand: SMC; Series: CQ2 / CQ2K
  • Bore: 32mm; Strokes: 60mm and 35mm
  • Max Pressure: 1.0 MPa (10.2 Kgf/cm² / 145 PSI)
  • Type: Double Acting; Mounting: Basic Through-Hole
  • Quantity: 2 cylinders (matched pair)
  • Origin: Japan; Date Code: J79L
  • Includes push-in fittings and switch leads

Applications

SMC CQ2 compact cylinders are standard actuators in automation, factory machinery, and industrial control systems. These low-pressure units function in clamping, material handling, and positioning applications across manufacturing environments. Compatible with standard pneumatic control systems and air supply networks operating at pressures up to 1.0 MPa.

Condition: Used
This pair of SMC compact pneumatic cylinders — one CDQ2B32-60DM (60mm stroke) and one CDQ2KB32-35DM (35mm stroke) — has been inspected and is in good used condition. Both cylinders are intact and the bodies show general wear consistent with industrial use, including surface rust on the end cap fasteners and mounting hardware, and some discoloration on the cylinder bodies. The push-in fittings and flow control valves appear present and intact. Wiring leads for auto switches are attached. No cracks or major damage to the cylinder bodies are visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDQ2B32-60DM
Secondary Model:
CDQ2KB32-35DM
MPN:
CDQ2B32-60DM / CDQ2KB32-35DM
SKU:
48120
Type:
Compact Pneumatic Cylinder
Series:
CQ2 / CQ2K
Bore Size:
32mm
Stroke 1 (CDQ2B32-60DM):
60mm
Stroke 2 (CDQ2KB32-35DM):
35mm
Max Pressure:
1.0 MPa / 10.2 Kgf/cm² / 145 PSI
Lot Code / Date Code:
J79L
Quantity Included:
2 cylinders (sold as a pair)
Actuator Type:
Double Acting
Mounting Style:
Basic / Through-Hole
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and Pulled from Working Environment
Seller Notes:
Sold as a matched pair: one CDQ2B32-60DM and one CDQ2KB32-35DM
Condition Notes:
SMC CDQ2B32-60DM & CDQ2KB32-35DM compact pneumatic cylinder pair. Both inspected and in good used condition. Surface rust on fasteners and end caps; bodies intact. Push-in fittings and switch leads present.
View AllClose

Related Products

Related Products

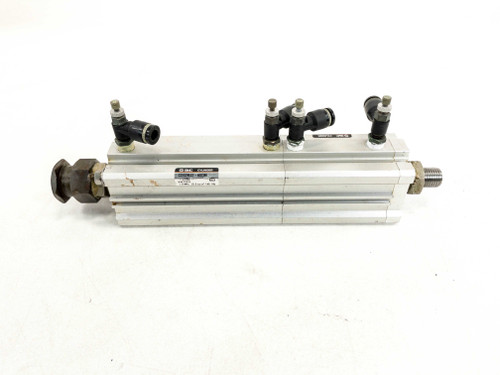

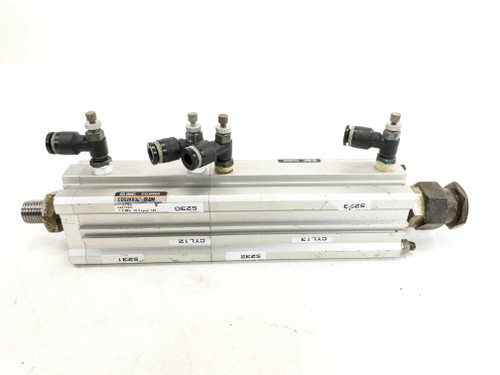

SMC CDQ2KB32-35DM compact pneumatic cylinder – full assembly side view with push-to-connect fittings installed on top ports SMC CDQ2B32-60DM compact pneumatic cylinder – opposite side full view showing top fittings and threaded rod end
