SMC CDQ2KB32-75DM CDQ2B32-60DM Dual Pneumatic Cylinder Assembly 145 PSI

(No reviews yet) Write a Review
SKU:
47962
MPN:
CDQ2B32-60DM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

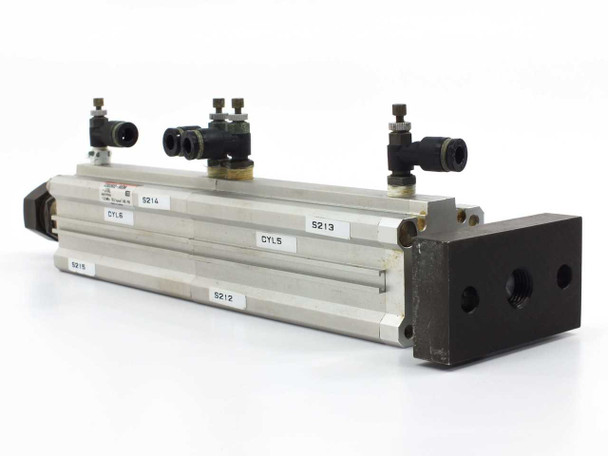

  • SMC CDQ2KB32-75DM CDQ2B32-60DM dual pneumatic cylinder assembly — left side view showing push-to-connect fittings and sensor labels CYL5, CYL6

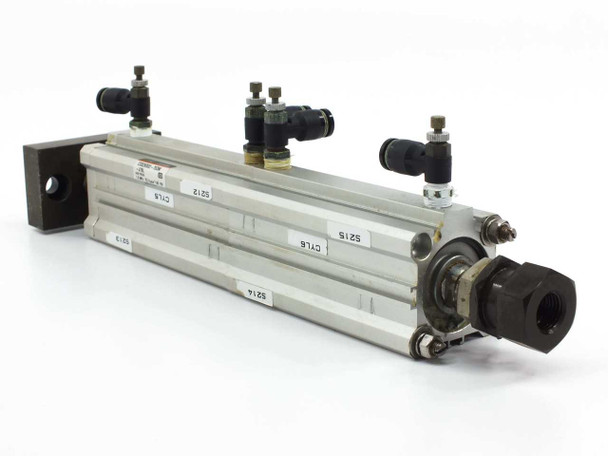

  • SMC dual pneumatic cylinder assembly — right side view showing opposite end with rod extension and mounting block

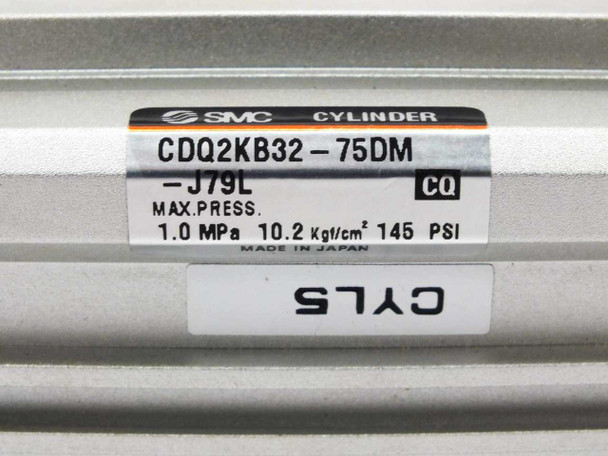

  • SMC CDQ2KB32-75DM label closeup — model number, J79L suffix, 1.0 MPa 10.2 Kgf/cm² 145 PSI max pressure, Made in Japan
  • SMC CDQ2B32-60DM label closeup — model number, J79L suffix, 1.0 MPa 10.2 Kgf/cm² 145 PSI max pressure, CYL6 tag, Made in Japan

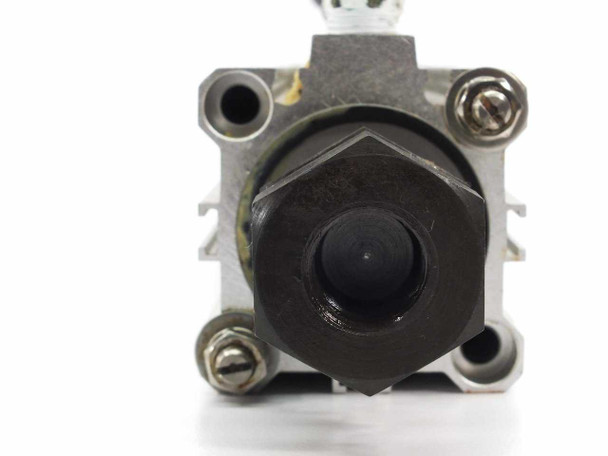

  • SMC pneumatic cylinder assembly — end view of rod end showing hex rod coupling and mounting hardware
  • SMC pneumatic cylinder assembly — end view of rear mounting block with center port and two side mounting holes
$90.00
Was: $175.00
Current Stock: 1

Sold Out

Description

SMC CDQ2KB32-75DM CDQ2B32-60DM Dual Pneumatic Cylinder Assembly 145 PSI

Dual compact pneumatic cylinder assembly from SMC's CDQ2 series. Two cylinders with different stroke lengths mounted on a single end plate block, designed for synchronized or parallel pneumatic actuation in industrial automation systems.

Specifications & What's Included

  • Model: CDQ2KB32-75DM / CDQ2B32-60DM
  • Bore: 32 mm
  • Strokes: 75 mm and 60 mm
  • Max Pressure: 1.0 MPa (145 PSI)
  • Style: Compact thin-profile cylinders
  • Mounting: End plate / flange block
  • Ports: Push-to-connect pneumatic fittings
  • Manufacturer: Japan
  • Includes: End mounting block, push-to-connect fittings

Applications

Dual cylinder assemblies are used in production machinery, material handling, and factory automation where two synchronized or independent linear motions are required. These compact CDQ2 units are commonly found in packaging equipment, assembly machines, and press systems. The push-to-connect design allows quick integration into existing pneumatic control networks without requiring threaded connections.

Condition: Used
This SMC CDQ2KB32-75DM / CDQ2B32-60DM dual pneumatic cylinder assembly has been inspected and is in good used condition. The cylinder bodies are clean and free of visible damage, with labels intact and legible. Push-to-connect fittings are present on both cylinders. The end mounting block and rod-end coupling are intact. Normal light wear consistent with prior industrial use is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDQ2KB32-75DM
Secondary Model:
CDQ2B32-60DM
MPN:
CDQ2KB32-75DM-J79L
SKU:
47962
Type:
Dual Pneumatic Cylinder Assembly
Series:
CDQ2 / CQ2
Bore Size:
32 mm
Max Pressure:
1.0 MPa / 10.2 Kgf/cm² / 145 PSI
Stroke (CDQ2KB32-75DM):
75 mm
Stroke (CDQ2B32-60DM):
60 mm
Cylinder Style:
Compact / Thin
Mounting:
End plate / flange block
Port / Fitting Type:
Push-to-connect pneumatic fittings
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Dual cylinder assembly with push-to-connect fittings and end mounting block included.
Condition Notes:
SMC CDQ2KB32-75DM / CDQ2B32-60DM dual pneumatic cylinder assembly. Inspected and in good used condition. Cylinder bodies clean, fittings present, mounting block intact. Normal light wear from prior use.
