SMC CDA1FN100-G0547-25 Pneumatic Cylinder 1.0MPa 145 PSI Linear Rod w/ Sensors

(No reviews yet) Write a Review
SKU:
46293
MPN:
CDA 1FN100-G0547-25
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
19.00 LBS
Shipping:
Calculated at Checkout

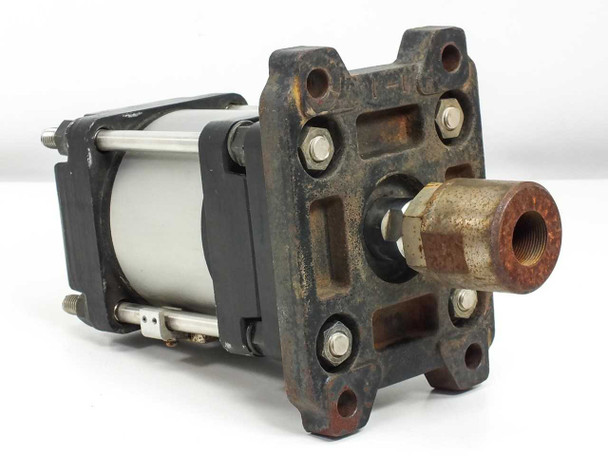

  • SMC CDA1FN100-G0547-25 pneumatic cylinder front-right angle view showing flange mount and threaded rod end
  • SMC CDA1FN100-G0547-25 pneumatic cylinder left-side view showing cylinder body label and push-in fittings
  • SMC CDA1FN100-G0547-25 cylinder label closeup showing model number, 1.0 MPa max pressure, 145 PSI, Made in Japan

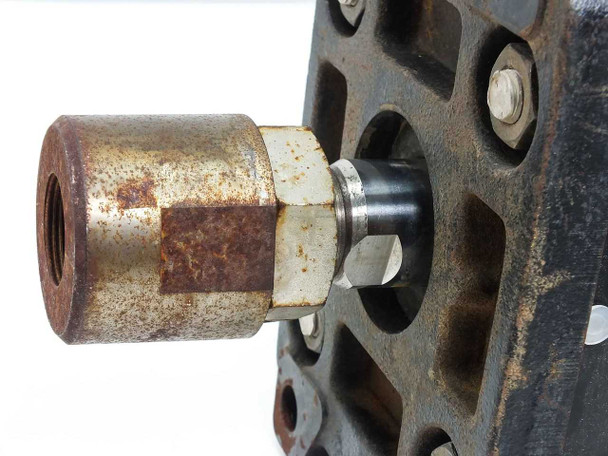

  • SMC CDA1FN100-G0547-25 threaded rod end closeup showing surface rust on bronze/brass hex coupling and black rod

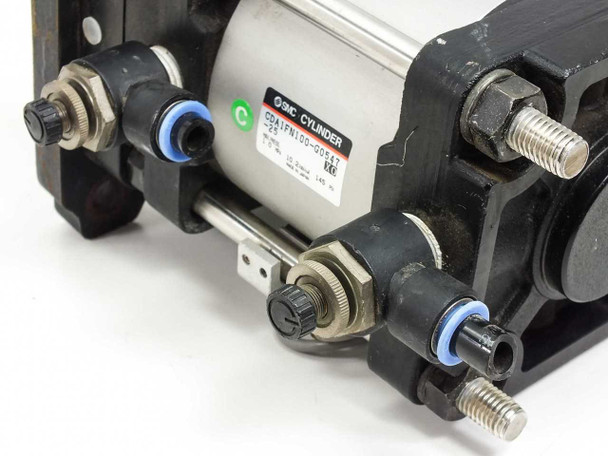

  • SMC CDA1FN100-G0547-25 front panel view showing push-in pneumatic fittings and position sensor mounting on cylinder body

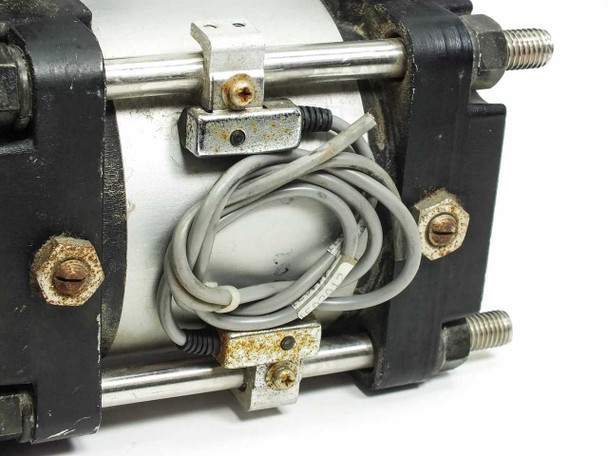

  • SMC CDA1FN100-G0547-25 rear end view showing two magnetic position sensors with grey wiring leads attached to cylinder
  • SMC CDA1FN100-G0547-25 second angle of threaded rod end and flange mount showing rust and wear on hex fitting
$22.70
Was: $80.00
Current Stock: 1

Sold Out

Description

SMC CDA1FN100-G0547-25 Pneumatic Cylinder 1.0MPa 145 PSI Linear Rod w/ Sensors

SMC pneumatic cylinder with 100 mm bore and 25 mm stroke. Operates at 1.0 MPa (145 PSI). Includes two integrated reed/magnetic position sensors with wiring leads for stroke-end detection.

Specifications & What's Included

  • Model: CDA1FN100-G0547-25
  • Bore: 100 mm
  • Stroke: 25 mm
  • Max Pressure: 1.0 MPa (145 PSI / 10.2 kgf/cm²)
  • Mount Style: Flange
  • Rod End: Threaded female with hex nut
  • Position Sensors: 2x reed/magnetic sensors with leads
  • Manufactured: Japan

Applications

SMC CDA cylinders are widely used in factory automation, packaging machinery, assembly lines, and material handling systems. The integrated sensor package supports position feedback for PLC and motion control systems. Linear rod cylinders of this size handle clamping, ejection, and indexing tasks in industrial production environments.

Condition: Used
This SMC CDA1FN100-G0547-25 pneumatic cylinder was pulled from a working industrial environment but has not been tested at our facility. The cylinder body and barrel are in reasonable cosmetic shape. The flange mount and rod-end hex coupling show moderate surface rust and age-related oxidation, as visible in the photos. The two magnetic position sensors with grey wiring leads are still attached and appear intact. Push-in pneumatic fittings are present on both ports. Overall the unit shows normal wear from industrial service. Please view our photo set and contact us if you have any questions.
