SMC

SMC CDLM2L20-100-E-H7A1S Pneumatic Linear Actuator Cylinder 1.0MPa 145PSI

(No reviews yet) Write a Review
SKU:
30983
MPN:
CDLM2L20-100-E
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

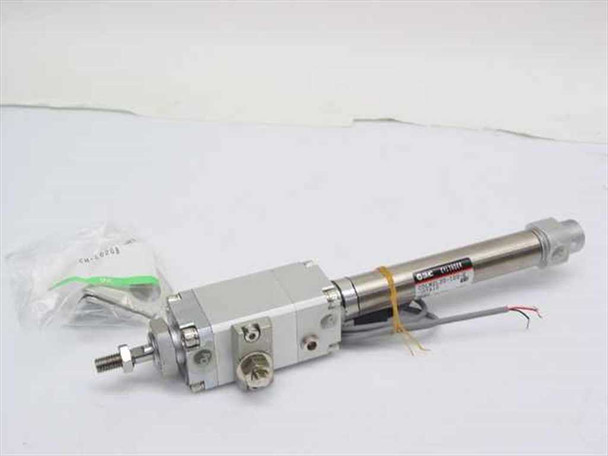

  • SMC CDLM2L20-100-E-H7A1S pneumatic linear actuator cylinder — full assembly with accessory bag, left-side view
  • SMC CDLM2L20-100-E pneumatic cylinder — full assembly showing stainless rod body and aluminum actuator block, right-side view
  • SMC CDLM2L20-100-E linear actuator — opposite-side view showing threaded rod end and cylinder body detail
  • SMC CDLM2L20-100-E-H7A1S cylinder body label — showing full model number, max pressure 1.0MPa, 10.2 kgf/cm², 145PSI, Made in Japan
  • Accessory bag labeled CM-L020B included with SMC CDLM2L20-100-E cylinder
  • Original SMC branded cardboard box for CDLM2L20-100-E linear actuator cylinder
$90.00
Was: $175.00
Current Stock: 1

Sold Out

Description

SMC CDLM2L20-100-E-H7A1S Pneumatic Linear Actuator Cylinder 1.0MPa 145PSI

SMC pneumatic linear actuator cylinder with 20mm bore and 100mm stroke. Operates on compressed air at 1.0 MPa (145 PSI) maximum pressure. Stainless steel and aluminum construction with inline rod-style form factor.

Specifications & What's Included

  • Model: CDLM2L20-100-E-H7A1S
  • Series: CDLM2 (Short Stroke)
  • Bore Size: 20 mm
  • Stroke Length: 100 mm
  • Max Operating Pressure: 1.0 MPa / 145 PSI
  • Media: Compressed Air / Pneumatic
  • Includes: Accessory bag (CM-L020B) and original SMC box
  • Manufactured in Japan

Applications

Short-stroke pneumatic cylinders are standard components in factory automation, assembly lines, and industrial machinery. Typically used for clamping, pushing, positioning, and ejection tasks where controlled linear motion is required. Compatible with standard pneumatic control systems and valve manifolds operating at pressures up to 1.0 MPa.

Condition: New - Open Box
SMC CDLM2L20-100-E-H7A1S pneumatic linear actuator cylinder, new and unused. The stainless steel cylinder body and aluminum actuator block show no signs of wear. Comes with original SMC cardboard box and accessory bag labeled CM-L020B. This unit has not been installed or operated.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDLM2L20-100-E
MPN:
CDLM2L20-100-E-H7A1S
Secondary Model:
CM-L020B
SKU:
30983
Type:
Pneumatic Linear Actuator Cylinder
Series:
CDLM2
Bore Size:
20 mm
Stroke Length:
100 mm
Max Operating Pressure:
1.0 MPa / 145 PSI
Actuator Style:
Short Stroke
Country/Region of Manufacture:
Japan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes accessory bag labeled CM-L020B and original SMC box
Form Factor:
Inline Rod-Style Cylinder
Body Material:
Stainless Steel / Aluminum
Media:
Compressed Air / Pneumatic
Condition Notes:
New/unused SMC pneumatic actuator. Stainless steel cylinder, aluminum block, no wear. Includes original box and CM-L020B accessory bag.
