MTS Level Plus A910750172 Analog Level Temperature Transmitter RTD 75in Probe

(No reviews yet) Write a Review
SKU:
44476
MPN:
Level Plus A910750172
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
100.00 LBS
Shipping:
Calculated at Checkout
  • MTS Level Plus A910750172 analog level temperature transmitter with full 75-inch stainless steel probe, full unit view against white wall
  • MTS Level Plus A910750172 label showing model number, serial number, date code 09/93, length 75in, gradient, and temp code T4
  • MTS Level Plus A910750172 label showing Factory Mutual System approval, intrinsic safety ratings Class I/II/III Div 1, and FM drawing number 650508
  • MTS Level Plus A910750172 transmitter head close-up showing blue housing and attached teal multi-pin cable

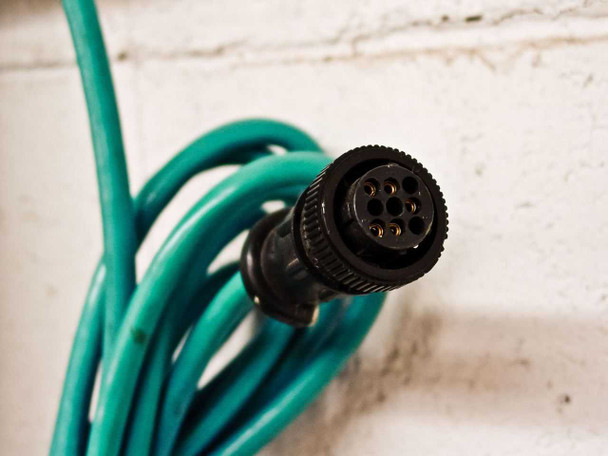

  • Close-up of multi-pin circular connector on teal cable attached to MTS Level Plus A910750172 transmitter
  • Close-up of sanitary tri-clamp style mounting flange on MTS Level Plus A910750172 stainless steel probe rod
  • MTS Level Plus A910750172 stainless steel probe tip with sanitary end cap and cotter pins visible
  • MTS Level Plus A910750172 probe tip detail showing cotter pin retention hardware at rod end

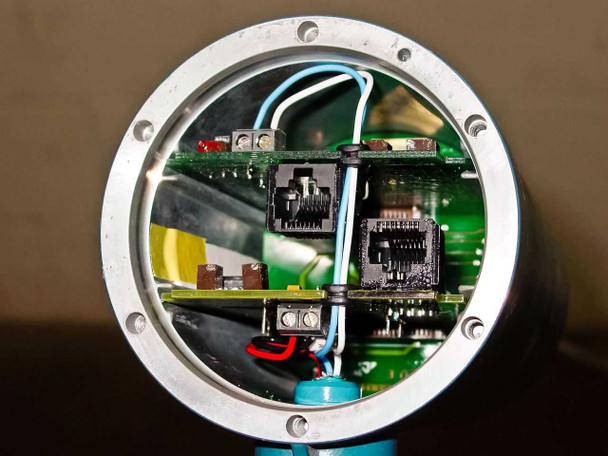

  • MTS Level Plus A910750172 transmitter head interior with housing open, showing PCB, terminal blocks, and internal wiring
$450.00
Was: $900.00
Current Stock: 2

Sold Out

Description

MTS Level Plus A910750172 Analog Level Temperature Transmitter RTD 75in Probe

This is an analog level and temperature transmitter designed for industrial tank monitoring. It combines liquid level measurement with RTD temperature sensing in a single 75-inch stainless steel probe.

Specifications & What's Included

  • Model: A910750172 (MTS Systems Corporation)
  • Probe Length: 75 inches, stainless steel construction
  • Temperature Sensor: RTD (Resistive Temperature Detector), Temp Code T4
  • Output: Analog signal
  • Connector: Multi-pin circular connector with teal cable
  • Mounting: Sanitary mounting connection
  • Intrinsically Safe, FM-approved for Class I Div 1 (Groups C, D), Class II Div 1 (Groups E, F, G), Class III Div 1
  • Max Current: 118 mA; Inductance: 500 µH
  • Date Code: 09/93

Applications

This transmitter was used for continuous liquid level and temperature measurement in industrial storage tanks, particularly in hazardous locations requiring intrinsic safety certification. It interfaces with MTS 70-series tank systems and similar industrial monitoring setups. The RTD sensor provides temperature compensation for accurate level readings across varying process conditions.

Condition: Used
This MTS Level Plus A910750172 Analog Level and Temperature Transmitter has been inspected and is in good condition. The blue transmitter housing shows normal wear consistent with prior use. The 75-inch stainless steel probe rod is intact and straight. The sanitary mounting flange shows minor surface discoloration but no damage. The teal multi-pin cable and circular connector are present and intact. Cotter pin hardware is visible at the probe tip. The interior PCB and terminal connections are visible in the photos and appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
MTS Systems
Model:
A910750172
MPN:
A910750172
Type:
Analog Level and Temperature Transmitter
SKU:
44476
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached teal multi-pin cable with circular connector
Country/Region of Manufacture:
United States
Probe Length:
75 inches
Temperature Sensor:
RTD (Resistive Temperature Detector), Temp Code T4
RTD Location:
8.0 [67.0]
Gradient:
9.20834 pS/in
Date Code:
09/93
Mounting Type:
Sanitary Mounting Connection
Rod Material:
Stainless Steel
Intrinsically Safe:
Yes
Safety Approval:
Factory Mutual (FM) System Approved
Hazardous Location Rating:
Class I Div 1, Groups C, D; Class II Div 1, Groups E, F, G; Class III Div 1
FM Drawing Number:
650508
Max Current (Ii):
118 mA
Capacitance (Ci):
0 nF
Inductance (Li):
500 µH
Output Type:
Analog
Application:
Liquid level and temperature measurement in industrial tanks
Compatible Tank Design:
70-series tank (per original description)
Connector Type:
Multi-pin circular connector (teal cable)
Form Factor:
Insertion / In-Tank Probe
Condition Notes:
MTS Level Plus A910750172 Analog Level and Temperature Transmitter. Inspected and in good condition. Blue housing shows normal wear. 75-inch SS probe intact. Teal cable and multi-pin connector included. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
