MTS

MTS Level Plus A910750172 Analog Level Temp Transmitter 75in RTD NEMA 4

(No reviews yet) Write a Review
SKU:
44516
MPN:
Level Plus A910750172
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

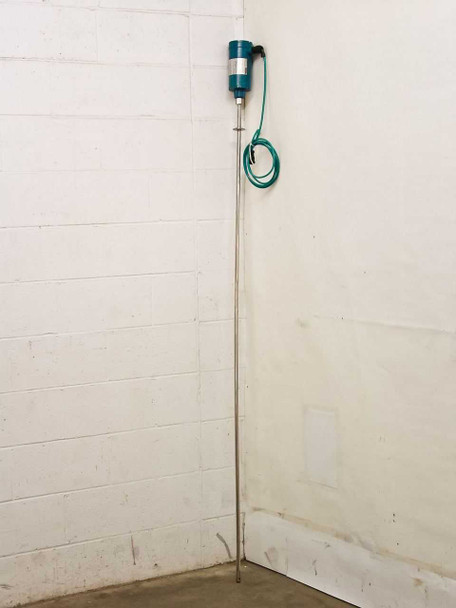

  • MTS Level Plus A910750172 analog level temperature transmitter full-length view with 75-inch stainless steel rod mounted against wall
  • MTS Level Plus A910750172 label showing model number, serial number, date code 09-93K, rod length 75 in, gradient 9.21250 µS/in, and RTD location

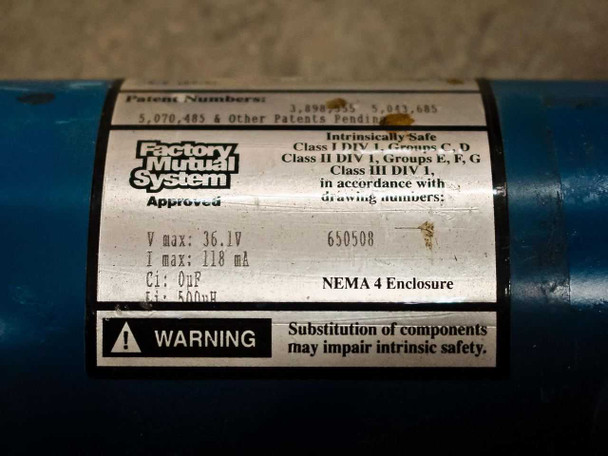

  • MTS Level Plus A910750172 label showing Factory Mutual intrinsically safe approval, NEMA 4 enclosure rating, V max 36.1V, I max 118 mA, and hazardous location classifications

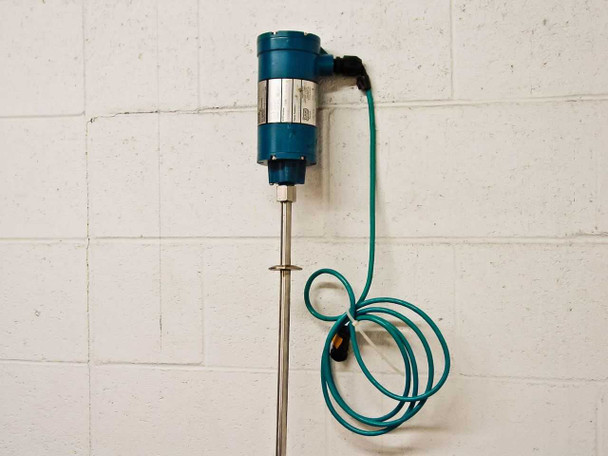

  • MTS Level Plus A910750172 transmitter head and upper rod section mounted to wall with coiled green cable

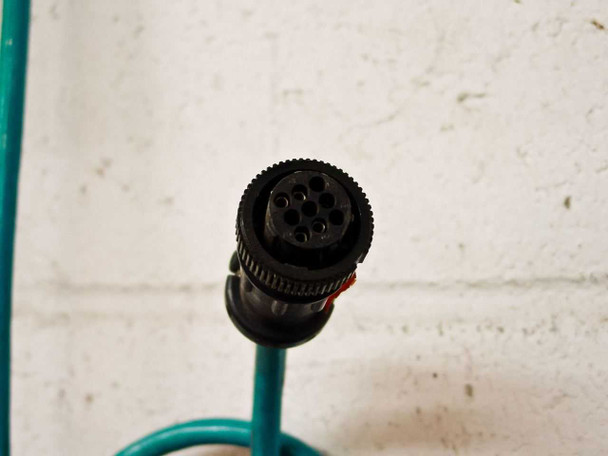

  • MTS Level Plus A910750172 multi-pin circular connector at end of green cable
  • MTS Level Plus A910750172 stainless steel rod showing sanitary flange mounting collar detail

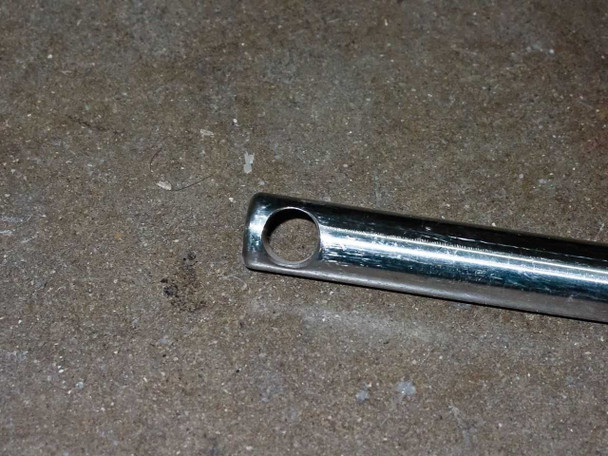

  • MTS Level Plus A910750172 tip of stainless steel rod showing cotter pin hole — buoy and cotter pin absent

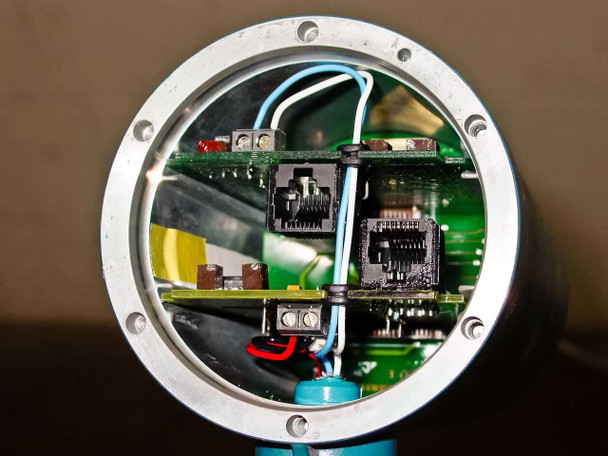

  • MTS Level Plus A910750172 transmitter head interior showing PCB, terminal blocks, and internal wiring with housing cover removed
$425.00
Was: $850.00
Current Stock: 1

Sold Out

Description

MTS Level Plus A910750172 Analog Level Temp Transmitter 75in RTD NEMA 4

Magnetostrictive level and temperature transmitter with 75-inch stainless steel rod and integrated RTD sensor. Produces analog output for process monitoring in hazardous locations.

Specifications & What's Included

  • Model A910750172, Series Level Plus
  • 75-inch probe length with RTD at 8.0 inches from tip
  • Stainless steel construction with sanitary mounting connection
  • NEMA 4 enclosure, Factory Mutual approved for Class I Div 1 Groups C,D and Class II Div 1 Groups E,F,G
  • Analog output, 36.1V max, 118 mA max
  • RTD temperature sensor, T4 code
  • Includes transmitter head, rod, and cable

Applications

Level and temperature transmitters of this type are used in industrial and process control systems to monitor liquid levels and temperatures in tanks and vessels. Magnetostrictive technology provides reliable measurement in demanding environments. The hazardous location certifications make this unit suitable for use in classified areas such as refineries, chemical processing, and other facilities with explosive atmospheres.

Condition: Used
This MTS Level Plus A910750172 analog level and temperature transmitter has been inspected and is in good used condition overall. The transmitter head, stainless steel rod, and cable are all present. Note that the float buoy and cotter pin are missing — the rod tip hole is visible in the photos and confirms their absence. The cable is secured with electrical tape at the transmitter head. The internal PCB and wiring are visible in the photos and appear intact. Normal light surface wear is present on the housing and rod consistent with prior installation use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
MTS Systems
Model:
A910750172
MPN:
A910750172
Type:
Analog Level and Temperature Transmitter
SKU:
44516
Seller Notes:
Missing buoy and cotter pin. Electrical tape securing cord. Rod and transmitter head present.
Country/Region of Manufacture:
United States
Product Series:
Level Plus
Probe / Rod Length:
75 inches
Temperature Sensor Type:
Resistive Temperature Detector (RTD)
RTD Location:
8.0 in from tip / 67.0 in from flange
Gradient:
9.21250 µS/in
Temp Code:
T4
Enclosure Rating:
NEMA 4
Intrinsically Safe:
Yes — Factory Mutual Approved
Hazardous Location Rating:
Class I DIV 1 Groups C,D; Class II DIV 1 Groups E,F,G; Class III DIV 1
V max:
36.1V
I max:
118 mA
Ci:
0 nF
Li:
500 µH
Approval / Certification:
Factory Mutual (FM) Approved — Drawing 650508
Rod / Probe Material:
Stainless Steel
Mounting Connection:
Sanitary (hygienic) mounting connection
Operating Technology:
Magnetostrictive
Output Type:
Analog
Date Code:
09-93K
Serial Number (Internal):
51359-01-002
Condition:
Used – Inspected; missing buoy and cotter pin
Condition Notes:
MTS Level Plus A910750172 level/temp transmitter inspected, good used condition. Missing float buoy and cotter pin. Cable secured with electrical tape. Transmitter head, rod, and cable present. Normal wear from prior use.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
