MTS Level Plus A910410172 Analog Level Temp Transmitter RTD 41in SS Rod Buoy

MTS Level Plus A910410172 Analog Level Temp Transmitter RTD 41in SS Rod Buoy

The MTS Level Plus A910410172 is an analog magnetostrictive level and temperature transmitter designed for continuous liquid level measurement in industrial tanks. It combines level sensing via the magnetostrictive Level Plus technology with a built-in Resistive Temperature Detector (RTD) in a single stainless steel probe assembly, providing dual-output measurement from one insertion point. The unit is Factory Mutual System approved as intrinsically safe for use in hazardous locations.

Specifications & What's Included

• Brand: MTS Systems Corporation — Level Plus Gauging Systems Division
• Model: A910410172
• Series: Level Plus
• Output Type: Analog
• Rod Length: 41 inches
• Rod Material: Stainless steel

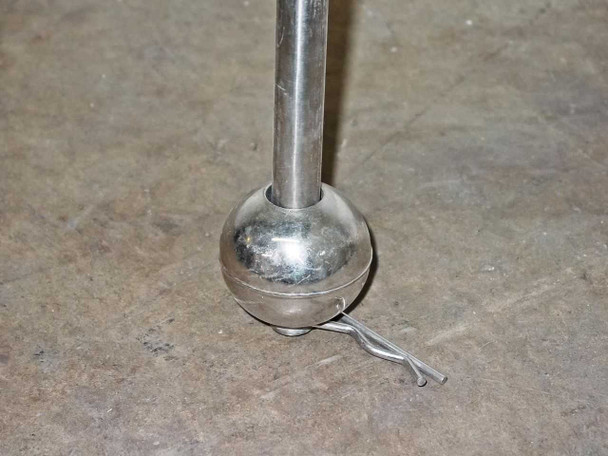

• Float / Buoy: Round spherical stainless steel buoy, secured with cotter pin
• Temperature Sensing: Built-in RTD (Resistive Temperature Detector)
• RTD Location: 8.0 in from tip / 33.0 in from flange
• Gradient: 9.23612 µS/in
• Temp Code: T4
• Date Code: 06/94

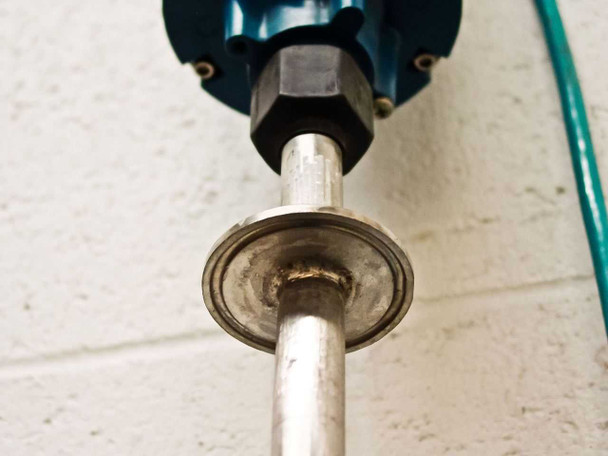

• Mounting Connection: Sanitary (tri-clamp style flange)

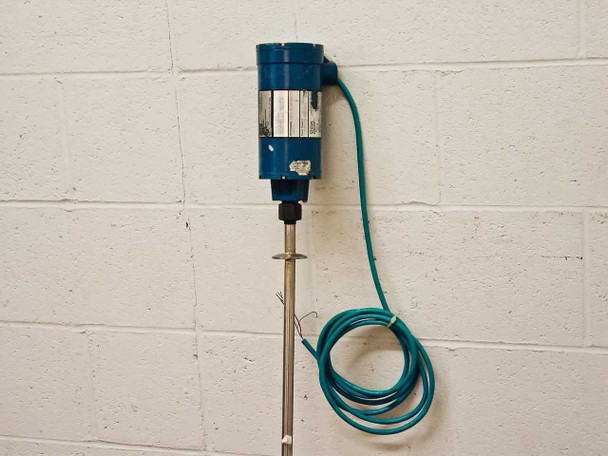

• Enclosure Rating: NEMA 4
• Intrinsically Safe: Yes — Factory Mutual System Approved
• Safety Classification: Class I Division 1, Class II Division 1
• Maximum Voltage (Vmax): 36.1V
• Maximum Current (Imax): 118 mA
• Ci: 0nF
• Li: 500µH
• Housing Color: Blue

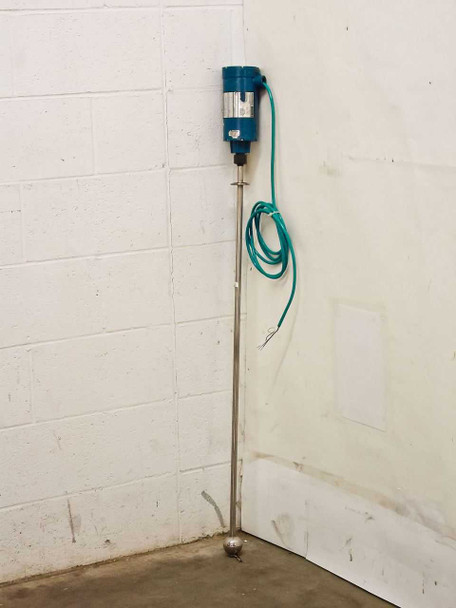

• Included: Transmitter assembly with 41-in SS rod, round buoy float, cotter pin retainer, and teal multi-conductor flying lead output cable (bare wire ends)

Applications

MTS Level Plus magnetostrictive transmitters are used for continuous liquid level and temperature measurement in process tanks across food and beverage, chemical, pharmaceutical, and other industrial applications. The magnetostrictive operating principle provides non-contact, high-resolution level sensing: the buoy float follows the liquid surface along the stainless steel rod, and the transmitter electronics convert its position to an analog output signal with high repeatability and no moving parts inside the sensing element. The built-in RTD allows simultaneous temperature measurement without a separate probe, making it well suited for processes where both level and temperature need to be monitored at the same point — such as batch processing tanks, ingredient storage vessels, or sanitary dairy and food-grade tanks. The sanitary tri-clamp flange mount is standard in hygienic process installations where clean-in-place compatibility and easy removal for inspection are required. The Factory Mutual intrinsic safety approval allows installation in Class I and Class II Division 1 hazardous locations, including tanks containing flammable or combustible liquids or dusts. This unit dates from June 1994, a period when MTS Level Plus probes were becoming widely adopted across both sanitary and general industrial tank gauging applications as an alternative to float-and-tape or ultrasonic level sensors.
