MTS A910410172 Level Plus Gauging System RTD 41in SS Rod Intrinsically Safe T4

MTS A910410172 Level Plus Gauging System RTD 41in SS Rod Intrinsically Safe T4

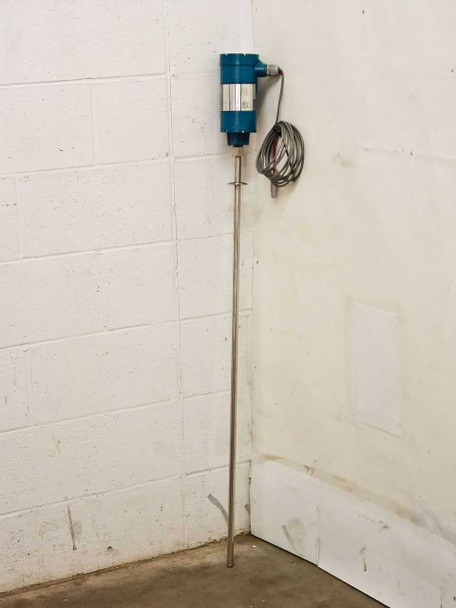

The MTS A910410172 is a magnetostrictive level transmitter from MTS Systems Corporation's Level Plus Gauging Systems product line. It combines continuous liquid level measurement with a built-in Resistive Temperature Detector (RTD) in a single stainless steel probe assembly, allowing simultaneous level and temperature monitoring from one process penetration. The transmitter head mounts via a sanitary tri-clamp connection, and the 41-inch stainless steel rod extends into the tank to provide level sensing across the full tank depth.

Specifications & What's Included

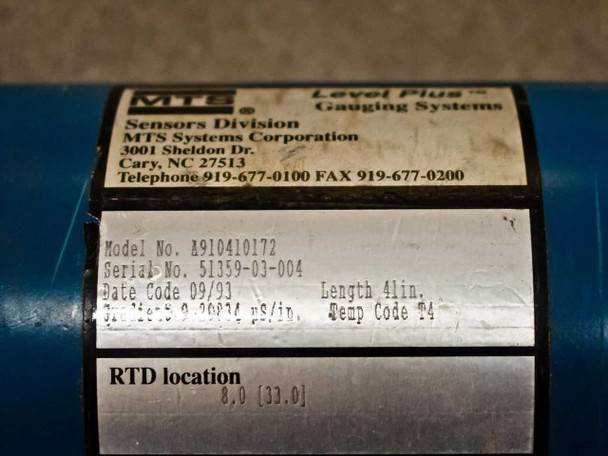

• Model: A910410172
• Product Line: MTS Level Plus Gauging Systems (MTS Sensors Division, MTS Systems Corporation)
• Rod Length: 41 inches
• Rod Material: Stainless steel
• Temperature Code: T4
• RTD Location: 8 [33.0]
• RTD Type: Resistive Temperature Detector (RTD) — built-in

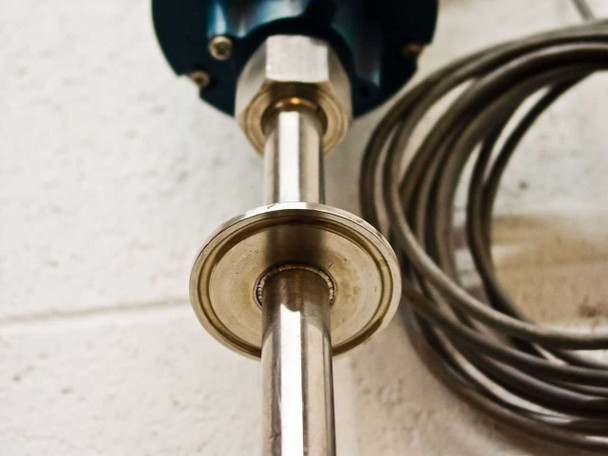

• Mounting: Sanitary tri-clamp flange connection
• Tank Compatibility: Designed for 36-inch tank

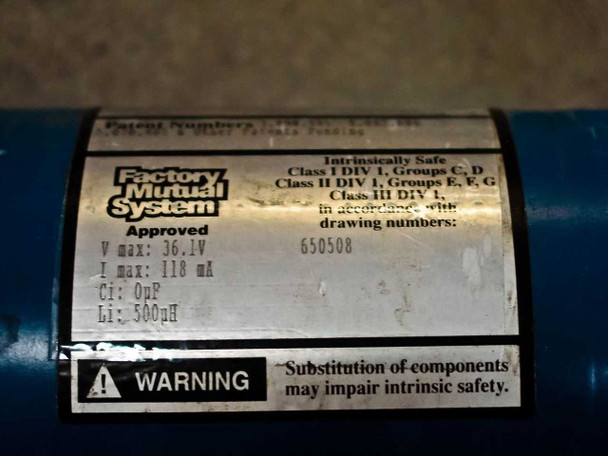

• Hazardous Area Rating: Intrinsically Safe — Factory Mutual (FM) Approved
• FM Classification: Class I Div 1 Groups C, D; Class II Div 1 Groups E, F, G; Class III Div 1
• FM Drawing Number: 650508
• V max: 36.1V
• I max: 118 mA
• Ci: 0 µF
• Li: 500 µH
• Date Code: 09/93

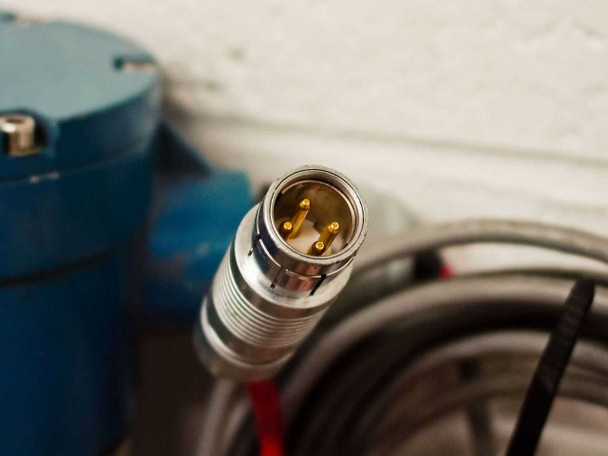

• Connector: Multi-pin circular locking connector on signal cable
• Included: Unit with attached signal cable and connector; no additional accessories

Applications

The MTS Level Plus system is a well-established magnetostrictive technology used for precise, continuous level and temperature measurement in storage tanks, process vessels, and bulk liquid containers across a wide range of industries. Magnetostrictive gauging works by sending a current pulse down the sensing rod; a magnetic float on the rod creates a return torsional pulse, and the time-of-flight between pulses determines float position to very high accuracy — typically to within a millimeter. The built-in RTD allows simultaneous temperature compensation or independent temperature logging without a separate probe. The intrinsically safe Factory Mutual rating makes this unit suitable for use in hazardous locations where flammable liquids or gases may be present, including petroleum storage, chemical processing, and solvent handling facilities. The sanitary tri-clamp mounting is common in food, beverage, dairy, and pharmaceutical applications where hygienic process connections are required. Manufactured in the early 1990s, this generation of MTS Level Plus probes established a form factor and wiring convention still widely referenced in tank gauging installations today, and replacement units and spare probes of this type remain actively sought for legacy systems still in service.
