Motorola

Motorola SGPN4018A 0109942T03 Microcite Cell Site Power Supply 27.6V ABB CEAG

(No reviews yet) Write a Review
SKU:
12202
MPN:
0109942T03
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • Motorola SGPN4018A 0109942T03 Microcite Cell Site Power Supply – front panel view showing fan, status indicators, ADJ and ADT controls, and ALARMS LEDs
  • Motorola SGPN4018A 0109942T03 Microcite Power Supply – rear view showing perforated chassis, multi-pin connector, and rectangular edge connector

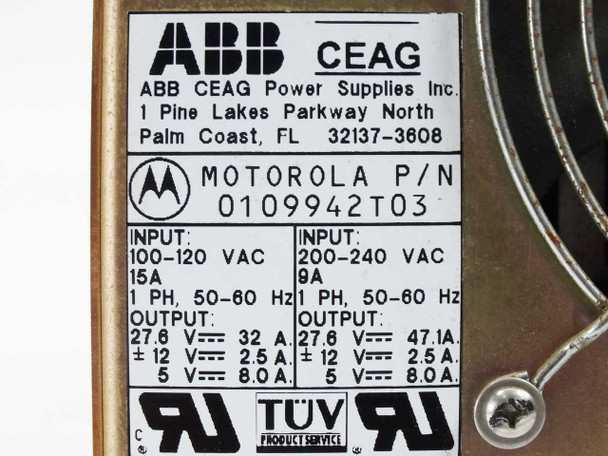

  • ABB CEAG power supply label showing Motorola P/N 0109942T03, input 100-120V/200-240V, outputs 27.6V 32A / ±12V 2.5A / 5V 8.0A, UL and TÜV certifications

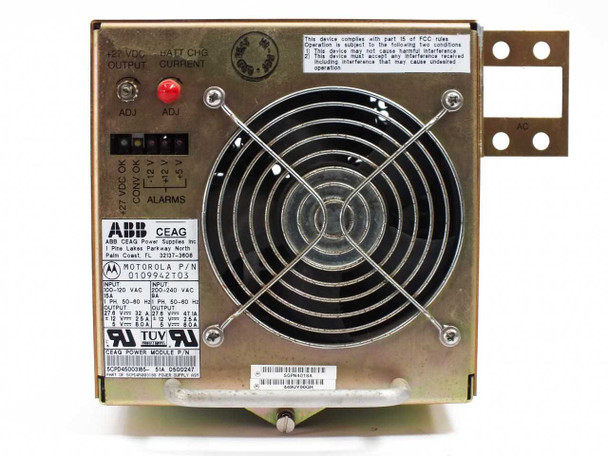

  • Motorola SGPN4018A Microcite Power Supply – front face closeup showing ADJ trimmers, alarm LED indicators, fan grille, and ABB CEAG branding label
  • Motorola SGPN4018A Microcite Power Supply – bottom/side panel view showing iridescent anodized metal chassis with mounting hardware and cable exit
  • Motorola SGPN4018ALine Card Microcite Power Supply Card Cell Site 0109942T03
$125.00
Was: $325.00
Current Stock: 1

Sold Out

Description

Motorola SGPN4018A 0109942T03 Microcite Cell Site Power Supply 27.6V ABB CEAG

AC/DC power supply module designed for Motorola Micro CITE cell sites and C25HDM01H7AF base stations. Converts single-phase AC input to multiple DC output voltages for cell site equipment operation.

Specifications & What's Included

  • Model: SGPN4018A | MPN: 0109942T03
  • Outputs: 27.6V DC @ 32A, ±12V DC @ 2.5A, 5V DC @ 8.0A
  • Input: 100-120V AC 15A or 200-240V AC 9A, 1PH, 50-60Hz
  • Form Factor: Card/Module
  • Cooling: Fan-cooled
  • Certifications: UL, TÜV
  • Manufactured by ABB CEAG Power Supplies Inc., USA
  • Unit only — no accessories included

Applications

Used in Motorola cellular base stations and cell site equipment requiring regulated DC power distribution.

Condition: Used
This Motorola SGPN4018A Microcite cell site power supply has been visually inspected and shows the iridescent discoloration typical of anodized telecom equipment housings — no cracks or physical damage observed. It has not been bench-tested or powered up at our facility. Sold in as-found condition. Please view our photos and reach out with any questions prior to purchase.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Manufacturer:
ABB CEAG Power Supplies Inc.
Model:
SGPN4018A
MPN:
0109942T03
SKU:
12202
Condition:
Used – Inspected
Form Factor:
Card / Module
Compatible With:
Motorola Micro CITE Cell Site
Compatible With 2:
Motorola C25HDM01H7AF Base Station
Application:
Cell Site Power Supply
Output Voltage 1:
27.6V DC @ 32A
Output Voltage 2:
±12V DC @ 2.5A
Output Voltage 3:
5V DC @ 8.0A
Input Voltage (Low Range):
100-120V AC, 15A, 1PH, 50-60Hz
Input Voltage (High Range):
200-240V AC, 9A, 1PH, 50-60Hz
Cooling:
Fan-cooled
Certifications:
UL, TÜV
Country of Manufacture:
United States
Seller Notes:
Unit only — no accessories included.
Condition Notes:
This Motorola SGPN4018A Microcite cell site power supply has been visually inspected and shows the iridescent discoloration typical of anodized telecom equipment housings — no cracks or physical damage observed.
View AllClose

Related Products

Related Products

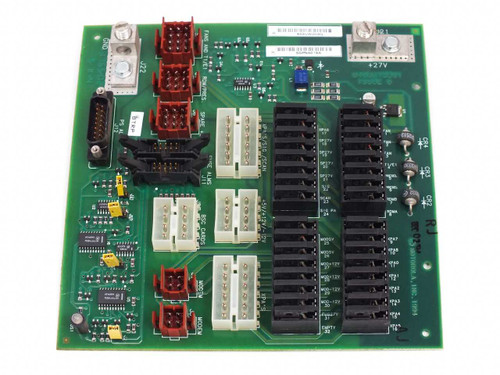

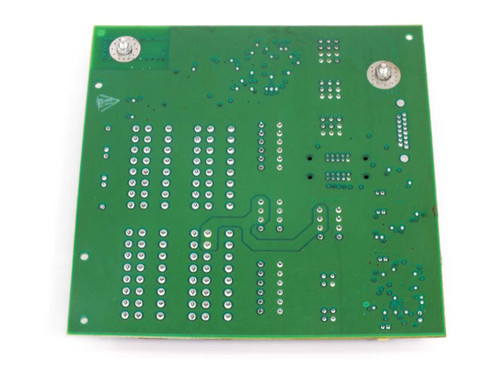

Motorola SGPN4019A Microcite Line Power Board — front component side showing red, white, and black multi-pin connectors, D-sub connector, and ICs on green PCB Motorola SGPN4019A Microcite Line Power Board — rear/solder side showing solder pads, vias, and bare green PCB
Add to Cart
Quick view

Motorola Microcite SGPN4019A Line Power Board C25HDM01H7AF Cell Site Card

Motorola

$150.00
Was: $350.00
Motorola Microcite SGPN4019A Line Power Board C25HDM01H7AF Cell Site Card This is a line power board from the Motorola Microcite base station system. The board distributes power throughout the cell...
12204
SKU:
12204
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Brand:
Motorola
Model:
SGPN4019A
MPN:
SGPN4019A
Secondary Model:
449UW009Q
SKU:
12204
Condition:
Used – Inspected
Seller Notes:
Line power board only; no enclosure or accessories included.
Form Factor:
Card / PCB Module
Compatible With:
Motorola C25HDM01H7AF Microcite Base Station
Compatible With 2:
Motorola Microcite Cell Site Systems
Country of Manufacture:
United States
Application:
Cellular base station power distribution
Connector Types:
Multi-pin board connectors, D-sub, red/white/black polarized headers
Condition Notes:
This Motorola SGPN4019A Microcite Line Power Board was pulled from a C25HDM01H7AF Microcite base station. The board shows normal signs of use and appears cosmetically intact with no obvious physical damage observed.
Motorola Microcite SGF4013A cell site line card – angled top view showing model label 91R09623U01 and multiple SMA connector studs on top surface Motorola Microcite SGF4013A line card – side view showing SMA RF IN and OUT connectors on end panel with Motorola label and barcode
Add to Cart
Quick view

Motorola Microcite SGF4013A Cell Site Line Card 91R09623U01 SMA RF

Motorola

$120.00
Was: $325.00
Motorola Microcite SGF4013A Cell Site Line Card 91R09623U01 SMA RF This is an RF line card module for Motorola Microcite cell site systems. It processes RF signals for cellular base station...
12206
SKU:
12206
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Brand:
Motorola
Model:
SGF4013A
Secondary Model:
91R09623U01
MPN:
91R09623U01
SKU:
12206
Condition:
Used – Pulled from Working Environment
Seller Notes:
Line card only; no additional accessories included.
Form Factor:
Card/Module
Compatible With:
Motorola Microcite / Micro CITE Cell Site Systems
Country of Manufacture:
United States
Connector Type:
SMA (RF IN and OUT)
Application / Use Case:
Cellular base station / cell site RF signal processing
Interface Type:
SMA RF
Number of Ports:
2 (SMA IN, SMA OUT)
Product Type:
Cell Site Line Card / RF Module
Condition Notes:
Motorola Microcite SGF4013A Cell Site Line Card pulled from working environment. Shows normal wear from field service. Ready for redeployment or testing.
Motorola SGLN5278A TRN9595C Microcite SCC card – front panel view showing alarm LED, in-use indicator, reset and test buttons Motorola SGLN5278A SCC controller card – card-edge backplane connector detail
Add to Cart
Quick view

Motorola SGLN5278A TRN9595C Microcite SCC Cell Site Controller HDII NAMPS

Motorola

$100.00
Was: $200.00
Motorola SGLN5278A TRN9595C Microcite SCC Cell Site Controller HDII NAMPSThe Motorola SGLN5278A (also designated TRN9595C) is a Site Controller Card (SCC) module designed for the Motorola Microcite...
48358
SKU:
48358
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Motorola
Model:
SGLN5278A
Secondary Model:
TRN9595C
MPN:
SGLN5278A
SKU:
48358
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only. No accessories included. Pulled from working Motorola base station.
Form Factor:
Plug-in PCB Card Module
Compatible With:
Motorola Microcite C25HDM01H7AF Base Station
Country of Manufacture:
United States
Application:
Cellular base station site control and switching
Part Number (Alt):
84D84704ROI
Card Type:
SCC – Site Controller Card
System Compatibility:
HDII / NAMPS Cellular Infrastructure
Faceplate Indicators:
Alarm (red LED), In Use (green LED), Reset (pushbutton), Test (pushbutton)
Connector Type:
Multi-pin Card-Edge Backplane
Condition Notes:
Motorola SGLN5278A TRN9595C Microcite SCC Site Controller Card, used, pulled from working Motorola base station. Normal field service wear. Card only, no accessories. Ready for redeployment or refurbishment.
Type:
Site Controller Card (SCC) Module
Front Panel Indicators:
Alarm (red LED), In Use (green LED), Reset, Test
Country/Region of Manufacture:
United States

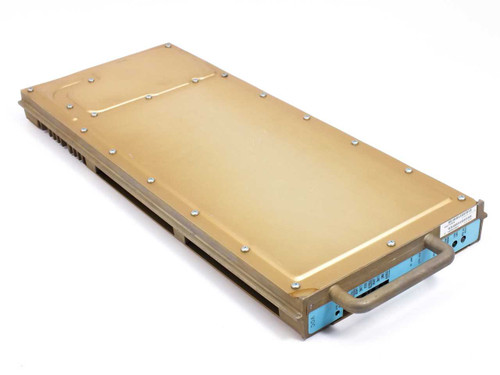

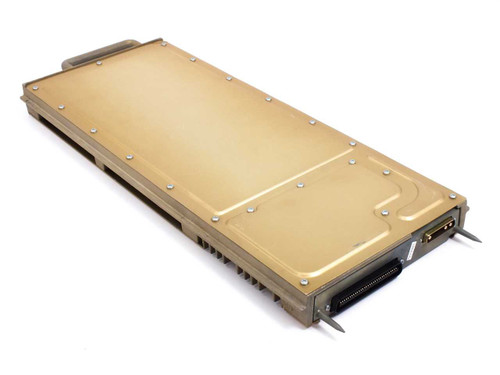

Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card – top view showing gold anodized enclosure with carry handle and label on right edge Motorola SGLF1059A Microcite Voice XPA Card – rear three-quarter view showing large multi-pin backplane connector and gold module housing
