ICP DAS I-8041W 32-Channel Isolated Digital Output Module I-8000 Series

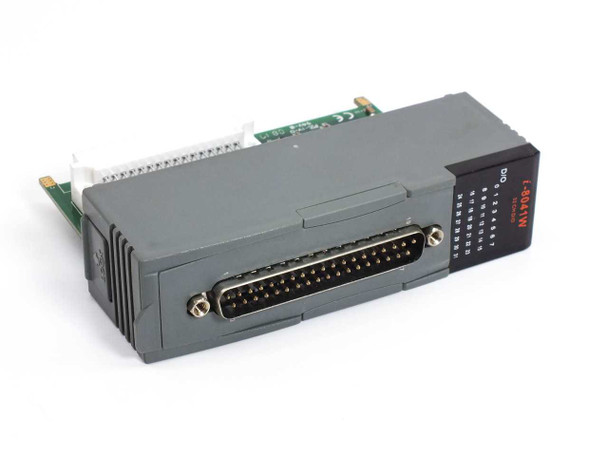

The ICP DAS I-8041W is a 32-channel optically isolated digital output module designed for use with the ICP DAS I-8000 series programmable automation controller (PAC) backplane systems. It provides a high-density bank of 32 independent isolated DO channels accessible via a DB37 (D-Sub 37-pin) connector, making it well suited for controlling relays, solenoids, LEDs, and other digital loads in industrial automation applications. The module plugs directly into an I-8000 series slot and communicates via the parallel I-8000 bus.
Specifications & What's Included
- Model: ICP DAS I-8041W
- Type: 32-Channel Isolated Digital Output (DO) Module

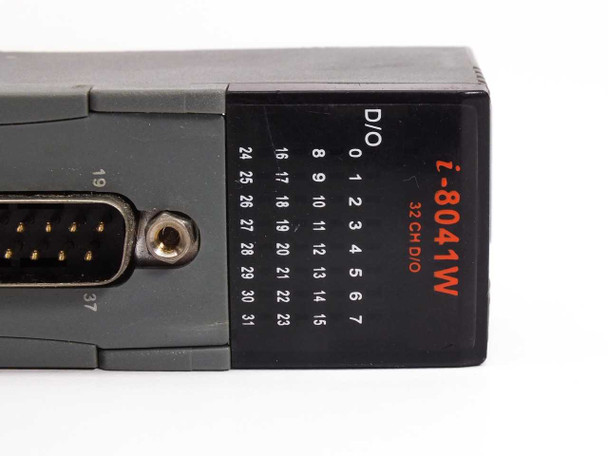

- Number of Output Channels: 32 (labeled D/O 0–31)
- Output Isolation: Optically isolated channels
- I/O Connector: DB37 (D-Sub 37-pin) on front face
- Bus Interface: ICP DAS I-8000 series parallel bus edge connector
- Compatible Backplane: ICP DAS I-8000 series PAC systems
- Form Factor: I-8000 plug-in module (card/module)
- Certifications: CE marked (visible on PCB)
- Included: Module only
Applications
The ICP DAS I-8000 series is a line of modular programmable automation controllers widely used in factory automation, machine control, building automation, and data acquisition systems. The I-8041W fills an I/O expansion slot on the I-8000 backplane and gives the host controller 32 additional isolated digital output points — a configuration common in applications that need to drive multiple relays, motor starters, indicator lights, or solenoid valves from a single slot. Optical isolation on each channel protects the controller backplane from voltage transients and ground loops on the field wiring side, which is important in electrically noisy industrial environments. The module is compatible with ICP DAS PAC controllers that accept I-8000 series parallel-bus expansion modules and is programmed through the controller's standard I/O API. These modules remain in active use in legacy I-8000 system installations and are sought as spares and replacements by maintenance engineers keeping those systems running.

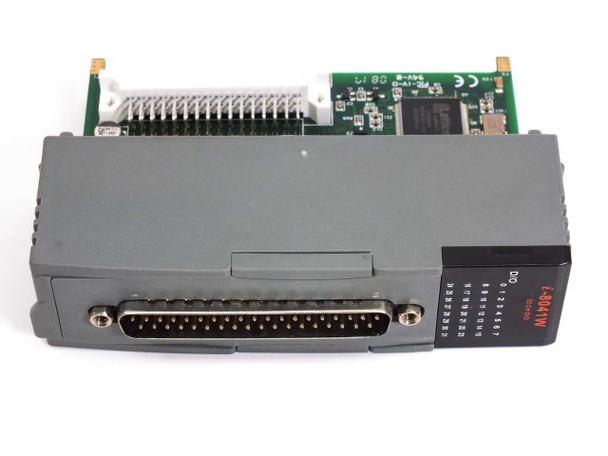

This ICP DAS I-8041W 32-Channel Isolated Digital Output Module has been inspected and appears to be in good condition. The housing is intact with no cracks or significant damage. The DB37 connector and I-8000 bus edge connector look clean and undamaged. Normal light handling marks may be present on the exterior. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
ICP DAS |
Model: |
I-8041W |
MPN: |
I-8041W |
Type: |
Isolated Digital Output Module |
SKU: |
49500 |
Number of Channels: |
32 |
Channel Type: |
Digital Output (DO) |
Isolation: |
Optically Isolated |
Connector Type: |
DB37 (D-Sub 37-pin) |
Form Factor: |
Card/Module |
Compatible With: |
ICP DAS I-8000 Series PAC Backplane |
Bus Interface: |
I-8000 Series Parallel Bus |
Certifications: |
CE |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Module only; inspected and in good condition. |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
ICP DAS I-8041W 32-Ch Isolated Digital Output Module. Inspected and in good condition. Housing intact, DB37 and bus connectors clean. Normal light handling wear. Please contact us with any questions. |
