Description
ICP DAS i-8088W 8-Ch PWM Output 8-Ch Isolated DI Module i-8000 Series PLC
The ICP DAS i-8088W is a combination I/O module providing 8 channels of PWM (Pulse Width Modulation) output and 8 channels of isolated digital input (DI) in a single i-8000 series backplane-compatible form factor. It is designed to plug directly into ICP DAS i-8000 or Wincon/LinCon PAC backplanes, expanding the host controller's ability to drive PWM-controlled loads and read isolated discrete signals simultaneously from one module slot.
Specifications & What's Included
- Model: ICP DAS i-8088W

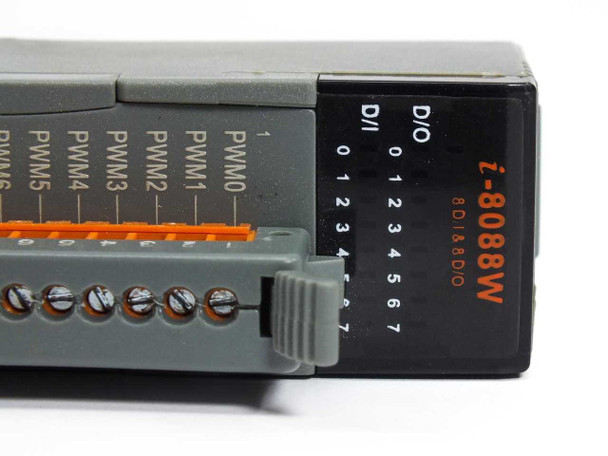

- PWM Output Channels: 8 (labeled PWM0–PWM7 on terminal block)
- Digital Input Channels: 8 isolated DI channels (labeled DI/O 0–7 on module label)
- Backplane Interface: i-8000 series multi-pin backplane edge connector

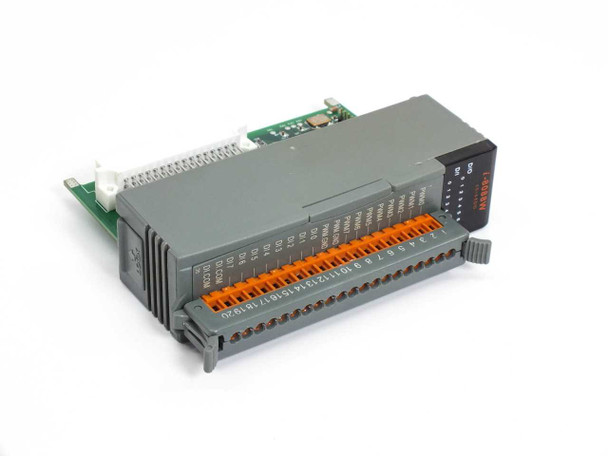

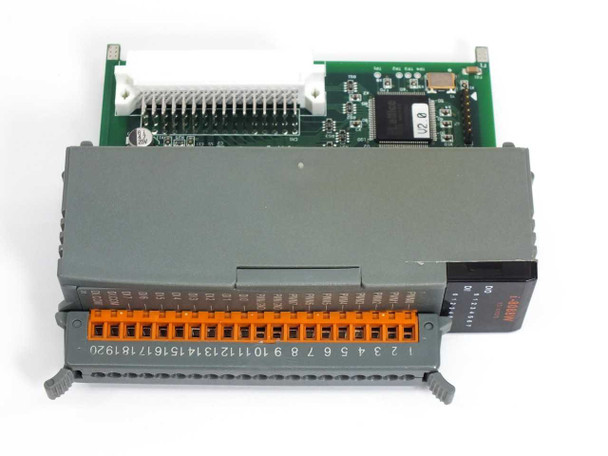

- Terminal Block: Orange screw-terminal block, numbered 1–20, for field wiring of PWM outputs and DI inputs
- Form Factor: i-8000 series plug-in module (card/module)
- PCB Revision: CR (visible on PCB silkscreen)
- Country of Manufacture: Taiwan
- Included: Module only
Applications
The i-8088W is used in industrial automation and machine control applications where PWM-driven outputs are needed alongside isolated digital feedback — common examples include motor speed control via PWM signals, LED or lamp dimming, solenoid valve cycling, and reading isolated discrete sensor or switch inputs within the same I/O slot. It slots into ICP DAS i-8000 series Programmable Automation Controllers (PACs), which are widely used in factory automation, building control, process control, and embedded machine applications. The i-8000 platform from ICP DAS — a Taiwanese industrial automation manufacturer — gained traction from the late 1990s onward as a modular, rack-based PAC architecture that competes with conventional PLC backplane systems. Combining PWM output and isolated DI in a single module reduces slot count and wiring complexity in space-constrained control panels.
This ICP DAS i-8088W 8-channel PWM Output and 8-channel Isolated DI Module has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The module housing shows normal light wear consistent with field installation; the terminal block connectors and backplane edge connector appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
ICP DAS |
Model: |
i-8088W |
MPN: |
i-8088W |
Type: |
PWM Output & Isolated Digital Input Module |
SKU: |
49502 |
Number of PWM Output Channels: |
8 |
Number of DI Channels: |
8 |
Input Type: |
Isolated Digital Input (DI) |
Output Type: |
PWM (Pulse Width Modulation) |
Compatible With: |
ICP DAS i-8000 Series PAC/PLC Backplane |
Form Factor: |
Module / Card |
Interface: |
i-8000 Series Backplane Connector |
Application: |
Industrial Automation, Motion Control, PLC I/O |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Module only; pulled from working environment |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
ICP DAS i-8088W PWM/DI module inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Terminal block and backplane connector intact. Please contact us with any questions. |
