Sharp

Sharp JW-32S DC Output Module 5/12/24V PLC I/O Card JW Series 1A/PNT 8A/COM

(No reviews yet) Write a Review
SKU:
47761
MPN:
JW-32S
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

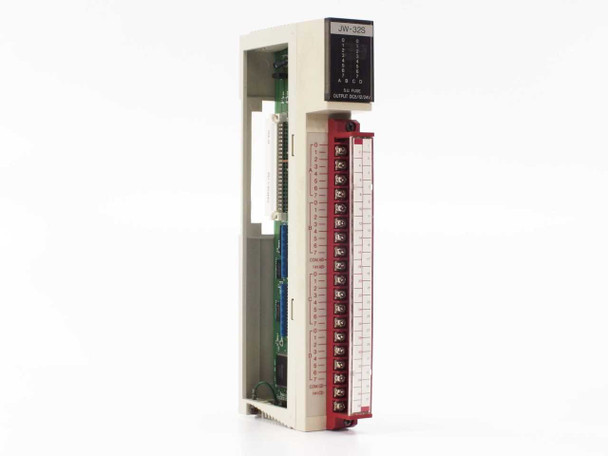

  • Sharp JW-32S DC Output Module — left-side angled view showing terminal block and module housing
  • Sharp JW-32S PLC output module — right-side angled view showing backplane connector and label
  • Sharp JW-32S top label close-up showing model number, S.U. FUSE, and OUTPUT DC5/12/24V marking
  • Sharp JW-32S front panel view showing 32-point output terminal strip and module body
  • Sharp JW-32S internal PCB view showing output relay/transistor circuitry and backplane connector
  • Sharp JW-32S — bottom edge view showing backplane connector interface
  • Sharp JW-32S — close-up of internal backplane connector and PCB edge
$90.00
Was: $175.00
Current Stock: 5

Sold Out

Description

Sharp JW-32S DC Output Module 5/12/24V PLC I/O Card JW Series 1A/PNT 8A/COM

DC output module for Sharp JW Series programmable logic controllers. Provides digital output switching capabilities across multiple voltage levels for industrial automation and control applications.

Specifications & What's Included

  • 32 output points across 4 groups (A, B, C, D)
  • Output voltage: 5 VDC, 12 VDC, or 24 VDC
  • 1A per output point / 8A per common
  • S.U. Fuse protection
  • Module only; no accessories included

Applications

This module serves as an I/O interface card in Sharp JW Series PLC systems, handling discrete output control for industrial machinery, automation equipment, and process control systems. It was used to switch solenoids, relays, indicator lights, and other low-voltage DC loads in manufacturing and telecom environments. The 32-point configuration supports modular expansion within compatible JW Series control cabinets.

Condition: Used
This Sharp JW-32S DC Output Module has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The housing and terminal block are clean with normal wear consistent with industrial service. The PCB and backplane connector appear intact with no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sharp
Model:
JW-32S
MPN:
JW-32S
Type:
DC Output Module
SKU:
47761
Output Voltage:
5 VDC / 12 VDC / 24 VDC
Output Current per Point:
1A
Output Current per Common:
8A
Number of Output Points:
32
Output Groups:
4 groups (A, B, C, D)
Fuse Type:
S.U. Fuse
Compatible With:
Sharp JW Series PLC Systems
Form Factor:
Card/Module
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; no additional accessories included.
Country/Region of Manufacture:
Japan
Condition Notes:
Sharp JW-32S DC Output Module inspected and in good used condition. Pulled from a working environment where it was in active use. Housing and PCB appear intact with no visible damage. Please contact us with any questions.
