Sharp

Sharp JW-2DA Analog Output Module 2-Channel PLC JW Series Screw Terminal

(No reviews yet) Write a Review
SKU:
47767
MPN:
JW-2DA
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

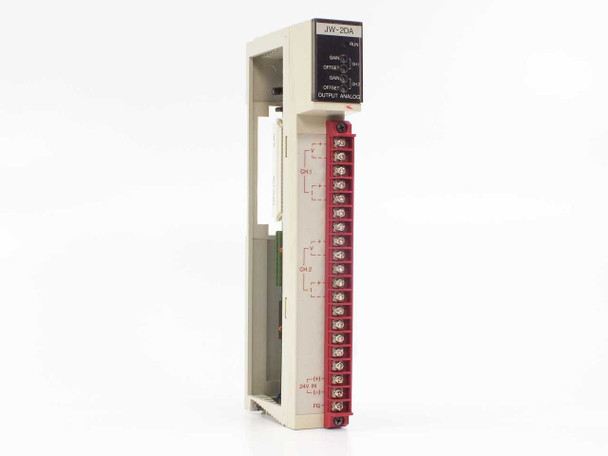

  • Sharp JW-2DA Analog Output PLC Module – right-side angled view showing screw terminal strip and front panel label
  • Sharp JW-2DA PLC Analog Output Module – left-side view showing backplane connector and module label on housing
  • Sharp JW-2DA front panel close-up showing RUN indicator, Gain and Offset trim pots for CH.1 and CH.2, and OUTPUT ANALOG label
  • Sharp JW-2DA Analog Output Module – front view showing full screw terminal strip with CH.1 and CH.2 wiring diagrams on housing
  • Sharp JW-2DA – interior PCB view showing circuit board components, IC chips, and backplane edge connector
  • Sharp JW-2DA Analog Output Module
  • Sharp JW-2DA Analog Output Module
$50.00
Was: $100.00
Current Stock: 2

Sold Out

Description

Sharp JW-2DA Analog Output Module 2-Channel PLC JW Series Screw Terminal

The Sharp JW-2DA is a 2-channel analog output expansion module designed for use in Sharp JW Series programmable logic controller systems. It provides two independently adjustable analog output channels (CH.1 and CH.2), each with front-panel Gain and Offset trim potentiometers for signal calibration. The module connects to the PLC backplane via an edge connector and uses a screw terminal strip for field wiring. A RUN status indicator is present on the front panel.

Specifications & What's Included

  • Model: JW-2DA
  • Brand: Sharp
  • Type: Analog Output Expansion Module
  • Channels: 2 (CH.1, CH.2)
  • Adjustments: Gain and Offset trim per channel
  • Wiring: Screw terminal strip
  • Interface: PLC backplane edge connector
  • Compatible with: Sharp JW Series PLC systems
  • Includes: Module only

Applications

Analog output PLC modules of this type are used in industrial automation systems to convert digital control signals to analog voltage or current outputs for driving actuators, variable-speed drives, valves, and other process control devices.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Sharp JW-2DA Analog Output PLC Module shows normal wear consistent with prior industrial use. The housing is intact and the screw terminal strip and front-panel trim controls appear undamaged. The module has not been powered up or bench-tested at our facility. Please view our photos and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sharp
Model:
JW-2DA
MPN:
JW-2DA
SKU:
47767
Condition:
Used – Inspected
Seller Notes:
Module only; no external accessories included
Form Factor:
Card / Module
Compatible With:
Sharp JW Series PLC Systems
Country of Manufacture:
Japan
Number of Channels:
2
Output Type:
Analog Output
Connector Type:
Screw Terminal
Adjustment Controls:
Gain and Offset trim per channel (CH.1, CH.2)
Module Type:
Analog Output Expansion Module
Series:
JW Series
Condition Notes:
This Sharp JW-2DA Analog Output PLC Module shows normal wear consistent with prior industrial use. The housing is intact and the screw terminal strip and front-panel trim controls appear undamaged.
View AllClose
