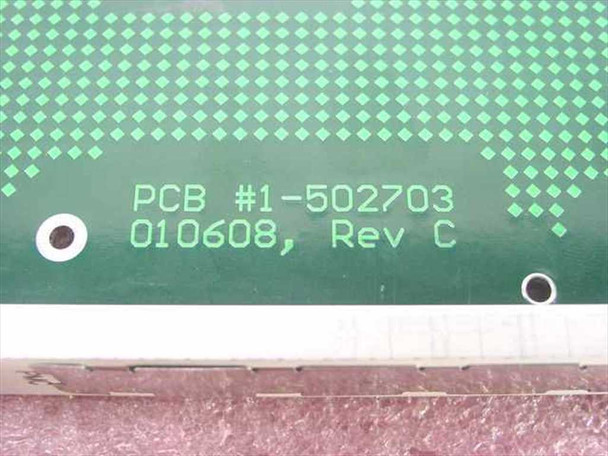

GNP PDSi cPCI IDE Hard Drive PMC Card 1-502703 Rev C J1 J3 J5 CompactPCI

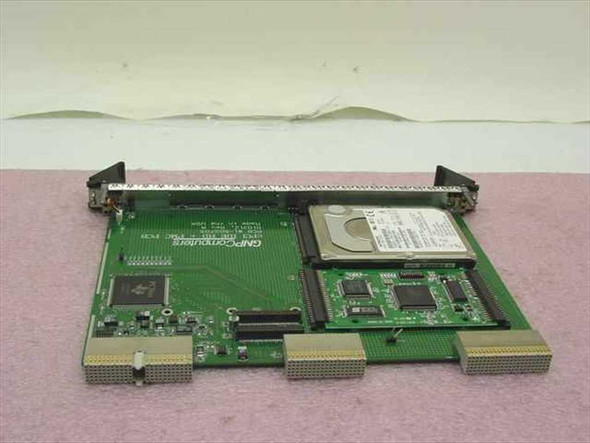

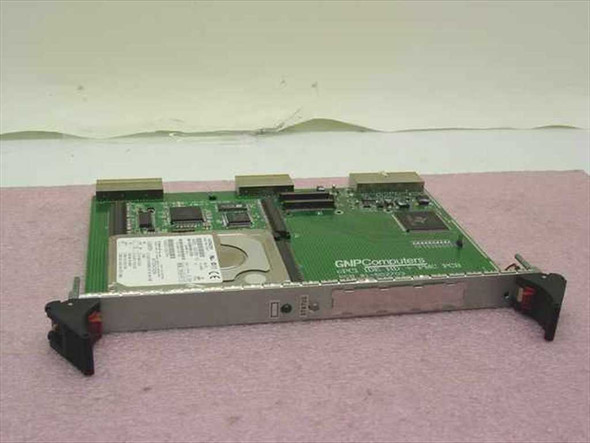

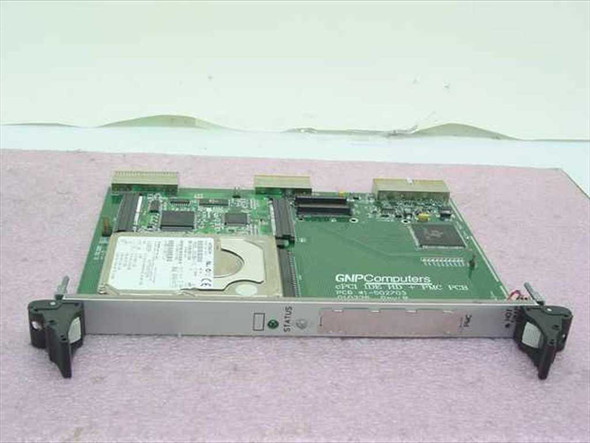

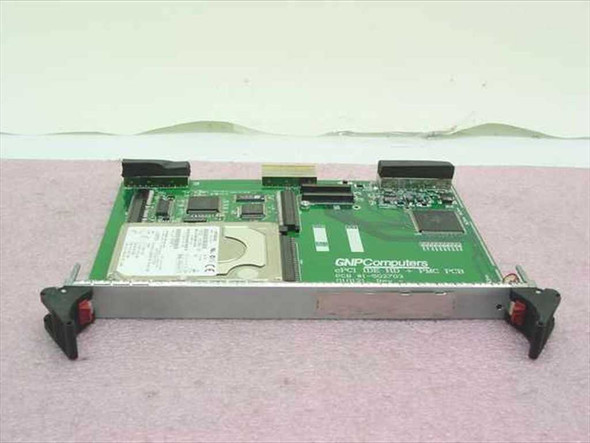

CompactPCI IDE hard drive storage module with Hitachi drives installed. Functions as a PMC (PCI Mezzanine Card) for embedded and industrial computing systems using the cPCI standard bus architecture.
Specifications & What's Included
- Model: GNP PDSi 1-502703 Rev C
- Form Factor: CompactPCI (cPCI) card with J1, J3, J5 connectors
- Interface: IDE (ATA) / PMC standard

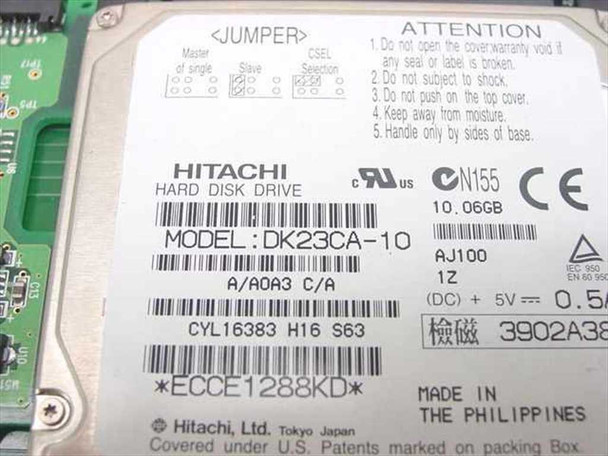

- Installed Drives: Four Hitachi DK23CA-10 (10.06 GB each), one DK23DA-20F, one DK23BA-10
- HDD Type: 2.5-inch laptop form factor IDE
- Power: +5V DC @ 0.5A per drive
- Manufacture: USA (PCB), Philippines (Hitachi HDDs)
Applications
This card type was used in CompactPCI-based industrial control systems, telecommunications equipment, and GNP PDSi embedded platforms requiring IDE storage expansion. The PMC module format allows installation into cPCI backplane slots in systems from the 1990s–2000s era. Typical applications include data logging, embedded computing, and telecom infrastructure requiring modular storage solutions.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This GNP PDSi CompactPCI IDE Hard Drive & PMC PCB Card (1-502703, Rev C) has been inspected and is in good used condition. The PCB shows normal handling wear consistent with prior installation in an embedded CompactPCI system. The Hitachi IDE hard drives are installed on the board. The cPCI faceplate and ejector handles are intact, and the J1, J3, and J5 backplane connectors appear clean and undamaged. Please review our photo set for a detailed look at this specific unit and contact us with any questions.
Warranty Information
Additional Information
Brand: |
GNP PDSi (GNP Computers) |
Model: |
1-502703 |
Secondary Model: |
010608 |
MPN: |
1-502703 |
SKU: |
24329 |
Hardware Revision: |
Rev C |
Condition: |
Used – Inspected |
Seller Notes: |
Includes Hitachi IDE hard drives installed on cPCI PMC PCB card |
Form Factor: |
CompactPCI (cPCI) Card / Module |
Bus Type: |
CompactPCI (cPCI) Standard Bus |
Connector Types: |
J1, J3, J5 (cPCI standard backplane connectors) |
Interface Type: |
IDE (ATA) / PMC (PCI Mezzanine Card) |
Included HDD 1: |
Hitachi DK23CA-10, 10.06 GB IDE (x4 units documented) |
Included HDD 2: |
Hitachi DK23DA-20F (x1 unit documented) |
Included HDD 3: |
Hitachi DK23BA-10 (x1 unit documented) |
HDD Capacity: |
10.06 GB (Hitachi DK23CA-10) |
HDD Interface: |
IDE (ATA), 2.5-inch laptop form factor |
Country of Manufacture: |
USA (PCB); HDD: Philippines (Hitachi) |
Compatible With: |
CompactPCI (cPCI) systems, GNP PDSi embedded platforms |
Power Requirements: |
(DC) +5V — per Hitachi HDD label (0.5A) |
Condition Notes: |
GNP PDSi cPCI IDE HD & PMC Card 1-502703 Rev C. Inspected and in good used condition. PCB shows normal handling wear. Hitachi HDDs installed. J1/J3/J5 connectors intact. Please contact us with any questions. |
