GNP Computers 1-502516 cPCI IDE Drive Carrier Board Hitachi DK23BA-10 10GB

(No reviews yet) Write a Review
SKU:
24363
MPN:
1-502516
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

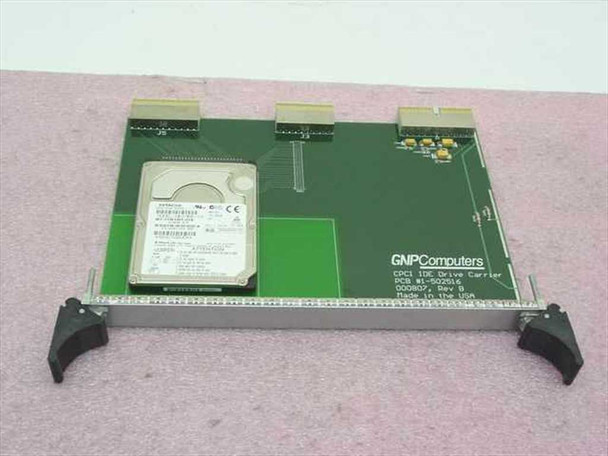

  • GNP Computers 1-502516 cPCI IDE Drive Carrier Board with Hitachi DK23BA-10 hard drive installed — front view showing board, drive, and ejector handles
  • GNP Computers label close-up showing CPCI IDE Drive Carrier, PCB #1-502516, 000807 Rev B, Made in the USA

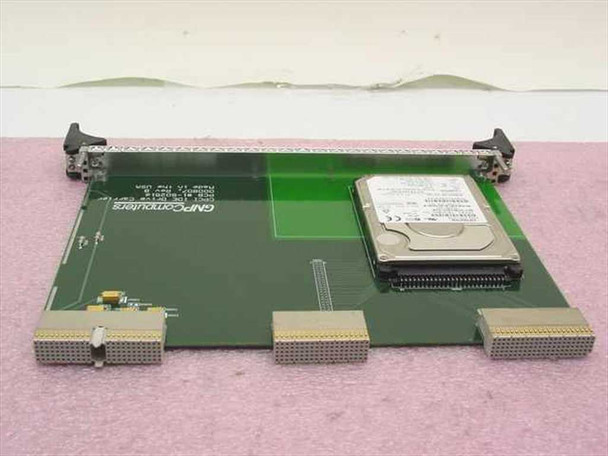

  • GNP Computers 1-502516 cPCI IDE Drive Carrier Board — rear/underside view showing cPCI edge connectors and CompactPCI connector array

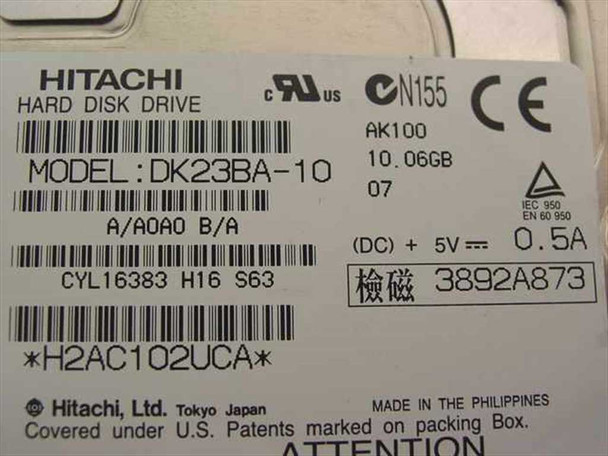

  • Hitachi DK23BA-10 hard drive label showing 10.06GB capacity, 5V 0.5A power, model number, and certification markings
$45.00
Was: $90.00
Current Stock: 3

Sold Out

Description

GNP Computers 1-502516 cPCI IDE Drive Carrier Board Hitachi DK23BA-10 10GB

CompactPCI IDE drive carrier board with integrated Hitachi DK23BA-10 10GB hard drive. Designed for use in CompactPCI chassis and backplane systems requiring mass storage capability.

Specifications & What's Included

  • Model: GNP Computers 1-502516 (Rev B)
  • Form Factor: CompactPCI (cPCI) Card/Module
  • Interface: IDE (ATA)
  • Included Hard Drive: Hitachi DK23BA-10, 10.06GB
  • Power Requirements: 5V DC, 0.5A
  • Date Code: 000807
  • Manufactured in United States

Applications

CompactPCI IDE carrier boards were used in embedded computing systems, industrial controllers, telecommunications equipment, and rugged server applications. This module provides direct IDE storage integration into CompactPCI chassis. Compatible with standard CompactPCI backplanes and systems supporting cPCI card modules. The 10GB Hitachi drive was typical for storage-constrained embedded environments from the early 2000s.

Condition: Used
This GNP Computers 1-502516 cPCI IDE Drive Carrier Board has been inspected and is in good condition. The board is complete with the Hitachi DK23BA-10 10GB IDE hard drive installed. The board and drive show normal light wear consistent with prior use. No cracks, damage, or missing components are visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP Computers
Model:
1-502516
MPN:
1-502516
Secondary Model:
DK23BA-10
Type:
CompactPCI IDE Drive Carrier Board
SKU:
24363
Revision:
Rev B
PCB Number:
PCB #1-502516
Date Code:
000807
Form Factor:
CompactPCI (cPCI) Card/Module
Interface Type:
IDE (ATA)
Bus Type:
CompactPCI (cPCI)
Included Hard Drive Model:
Hitachi DK23BA-10
Hard Drive Capacity:
10.06 GB
Hard Drive Interface:
IDE
Hard Drive Manufacturer:
Hitachi, Ltd.
Hard Drive Power:
5V DC, 0.5A
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes carrier board with Hitachi DK23BA-10 10GB IDE hard drive installed
Compatible With:
CompactPCI (cPCI) chassis and backplanes
Condition Notes:
GNP Computers 1-502516 cPCI IDE Drive Carrier Board inspected and in good condition. Includes Hitachi DK23BA-10 10GB IDE HDD installed. Light wear from prior use. No damage or missing components visible.
View AllClose

Related Products

Related Products

GNP Computers cPCI IDE HD PMC PCB 1-502703 Rev A — top-side view showing Hitachi DK23BA-10 hard drive and PMC mezzanine module mounted on the green PCB with front panel ejector handles GNP Computers cPCI IDE HD PMC PCB 1-502703 — bottom-side view showing CompactPCI connector fingers, onboard ICs, and Hitachi IDE hard drive from the reverse angle
Add to Cart
Quick view

GNP Computers cPCI IDE HD PMC PCB 1-502703 010312 Rev A w/ Hitachi DK23BA-10

GNP

$60.00
Was: $125.00
GNP Computers cPCI IDE HD PMC PCB 1-502703 010312 Rev A w/ Hitachi DK23BA-10CompactPCI (cPCI) storage card with integrated IDE hard drive for embedded computing systems. Features a PMC (PCI Mezzanine...
24366
SKU:
24366
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Brand:
GNP Computers
Model:
1-502703
MPN:
1-502703
Secondary Model:
010312
Revision:
Rev A
Type:
CompactPCI (cPCI) IDE Hard Drive + PMC PCB Card
SKU:
24366
Form Factor:
CompactPCI (cPCI) Card
Interface:
IDE (CompactPCI / cPCI bus)
Mezzanine Site:
PMC (PCI Mezzanine Card) slot onboard
Included Hard Drive Model:
Hitachi DK23BA-10
Included Hard Drive Capacity:
10.06 GB
Included Hard Drive Interface:
IDE
Included Hard Drive Manufacturer:
Hitachi, Ltd.
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Hitachi DK23BA-10 10.06GB IDE hard drive mounted on board
Compatible With:
CompactPCI (cPCI) 6U embedded computing systems
Bus Type:
CompactPCI (cPCI)
Storage Type:
IDE Hard Disk Drive (HDD)
Condition Notes:
GNP Computers cPCI IDE HD PMC PCB 1-502703 Rev A inspected, good used condition. Normal handling wear. Hitachi DK23BA-10 10GB HDD included on board. No visible damage. Contact us with questions.

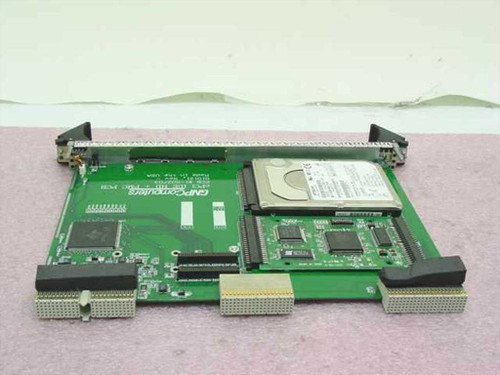

GNP Computers cPCI IDE HD PMC PCB Card 1-502703 – top side view showing installed Hitachi hard drive and PMC mezzanine area with front panel handles GNP Computers cPCI IDE HD PMC PCB Card 1-502703 – bottom side view showing rear connector edge, ICs, and board layout with front panel brackets
