GNP Computers cPCI IDE HD PMC PCB 1-502703 010312 Rev A w/ Hitachi DK23BA-10

(No reviews yet) Write a Review
SKU:
24366
MPN:
1-502703 010312010312
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • GNP Computers cPCI IDE HD PMC PCB 1-502703 Rev A — top-side view showing Hitachi DK23BA-10 hard drive and PMC mezzanine module mounted on the green PCB with front panel ejector handles
  • GNP Computers cPCI IDE HD PMC PCB 1-502703 — bottom-side view showing CompactPCI connector fingers, onboard ICs, and Hitachi IDE hard drive from the reverse angle

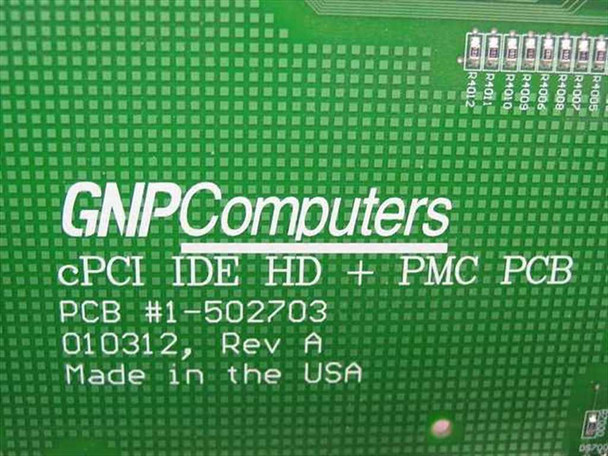

  • GNP Computers PCB label closeup reading cPCI IDE HD + PMC PCB, PCB #1-502703, 010312 Rev A, Made in the USA

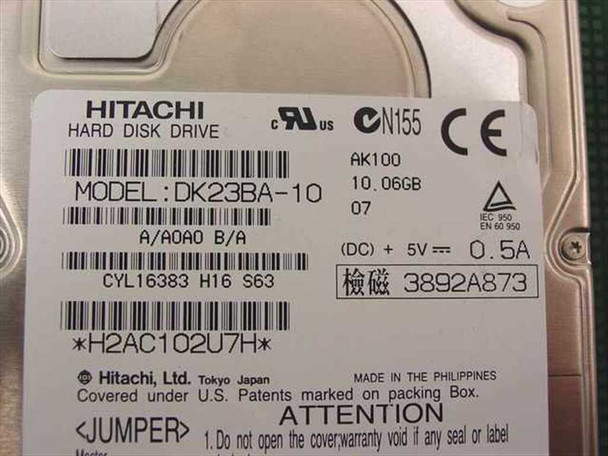

  • Hitachi DK23BA-10 hard drive label showing 10.06GB capacity, 5V 0.5A, AK100, made in the Philippines — included with the GNP cPCI IDE PCB
$60.00
Was: $125.00
Current Stock: 10

Sold Out

Description

GNP Computers cPCI IDE HD PMC PCB 1-502703 010312 Rev A w/ Hitachi DK23BA-10

CompactPCI (cPCI) storage card with integrated IDE hard drive for embedded computing systems. Features a PMC (PCI Mezzanine Card) slot interface and includes a Hitachi DK23BA-10 10.06GB IDE hard drive mounted on the board.

Specifications & What's Included

  • Model: 1-502703 (Rev A)
  • Form Factor: CompactPCI (cPCI) Card
  • Interface: IDE via CompactPCI bus with PMC mezzanine slot
  • Hard Drive: Hitachi DK23BA-10, 10.06GB IDE HDD
  • Compatibility: CompactPCI 6U embedded computing systems
  • Manufactured: United States

Applications

CompactPCI storage cards were used in industrial and telecommunications embedded computing systems, military applications, and aerospace equipment requiring ruggedized, modular storage solutions. This card provides IDE-based mass storage for 6U cPCI chassis, common in data acquisition, telecommunications infrastructure, and real-time processing applications. Compatible with systems using standard CompactPCI backplanes with PMC support.

Condition: Used
This GNP Computers cPCI IDE Hard Drive & PMC PCB (PCB #1-502703, Rev A) has been inspected and appears to be in good used condition. The board shows normal handling wear consistent with prior system use. The Hitachi DK23BA-10 10.06GB IDE hard drive is mounted on the board and included. No cracks, broken connectors, or obvious damage are visible on the PCB or its ejector handles. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
