GNP

GNP Computers cPCI IDE HD PMC PCB Card 1-502703 Hitachi DK23BA-60 6GB

(No reviews yet) Write a Review
SKU:
24369
MPN:
1-502703 010121
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

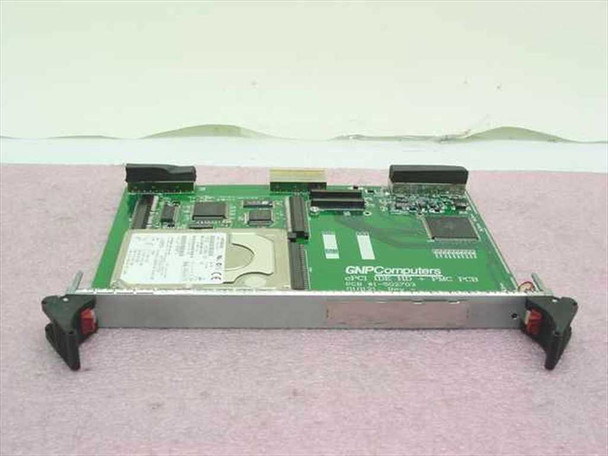

  • GNP Computers cPCI IDE HD PMC PCB Card 1-502703 – top side view showing installed Hitachi hard drive and PMC mezzanine area with front panel handles
  • GNP Computers cPCI IDE HD PMC PCB Card 1-502703 – bottom side view showing rear connector edge, ICs, and board layout with front panel brackets

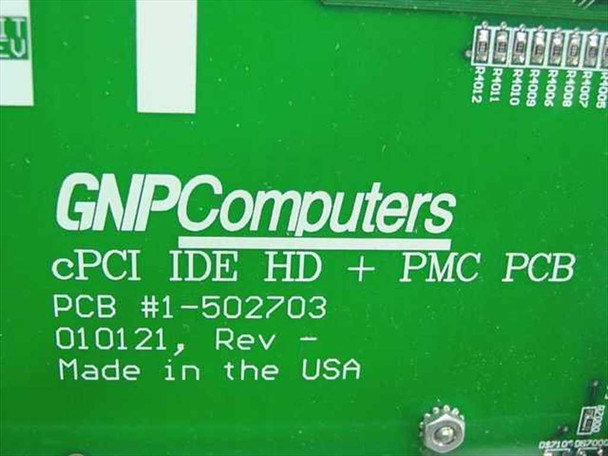

  • GNP Computers cPCI IDE HD PMC PCB Card close-up of silkscreen label showing PCB number 1-502703, revision 010121 Rev –, and Made in the USA marking

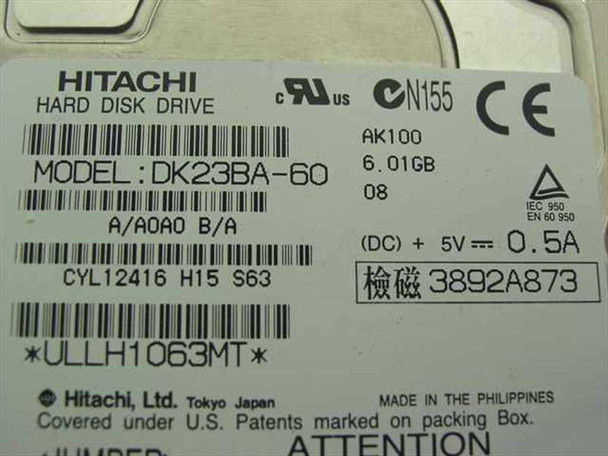

  • Hitachi DK23BA-60 hard disk drive label showing 6.01GB capacity, 5V 0.5A power rating, and AK100 firmware revision
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

GNP Computers cPCI IDE HD PMC PCB Card 1-502703 Hitachi DK23BA-60 6GB

CompactPCI storage controller card with integrated 6GB IDE hard drive. Designed for embedded computing systems requiring onboard mass storage in a cPCI form factor with PMC mezzanine slot support.

Specifications & What's Included

  • Model: GNP Computers 1-502703
  • Form Factor: CompactPCI (cPCI) Card
  • Interface: CompactPCI, IDE, PMC
  • Installed Hard Drive: Hitachi DK23BA-60
  • Drive Capacity: 6.01 GB IDE
  • Manufactured: United States

Applications

cPCI storage cards were used in telecommunications, industrial automation, and embedded computing systems that required local mass storage within a standardized CompactPCI chassis. The PMC slot allows mezzanine card expansion. Hitachi DK23BA-60 drives were deployed in ruggedized environments and legacy telecom infrastructure. Compatible with CompactPCI embedded computing systems with PMC mezzanine capability.

Condition: Used
This GNP Computers cPCI IDE HD + PMC PCB Card (P/N 1-502703) has been inspected and is in good used condition. The board shows normal handling and shelf wear consistent with prior use in an embedded computing environment. The Hitachi DK23BA-60 6.01GB IDE hard drive is installed on the card. No cracked traces, broken connectors, or significant physical damage are visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP Computers
Model:
1-502703
MPN:
1-502703
Secondary Model:
010121
Type:
CompactPCI IDE HD + PMC PCB Card
SKU:
24369
Form Factor:
CompactPCI (cPCI) Card
Interface Type:
CompactPCI (cPCI), IDE, PMC
Included Hard Drive Model:
Hitachi DK23BA-60
Included Hard Drive Capacity:
6.01 GB
Included Hard Drive Interface:
IDE
Included Hard Drive Manufacturer:
Hitachi
PCB Revision:
Rev –
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Hitachi DK23BA-60 6.01GB IDE hard drive installed on board
Compatible With:
CompactPCI embedded computing systems with PMC mezzanine slot
Condition Notes:
GNP Computers cPCI IDE HD PMC PCB Card 1-502703 inspected and in good used condition. Hitachi DK23BA-60 6GB IDE drive installed. Normal shelf/handling wear. No visible damage. Please contact us with any questions.
