Endress-Hauser

Endress+Hauser CM42 CM42-MPA001EAE00 Liquiline M Two-Wire Transmitter HART

(No reviews yet) Write a Review
SKU:
52927
MPN:
CM-42-MPA001EAE00
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Endress+Hauser CM42 Liquiline M two-wire transmitter front view showing LCD display, navigation buttons, rotary selector, and Memosens sensor port with conduit
  • Endress+Hauser CM42 Liquiline M transmitter rear and top view showing blue housing with conduit and mounting plate attached
  • Endress+Hauser CM42-MPA001EAE00 side label showing order code, device version, I/O specs, HART output, IP66/67 rating, and hazardous area approvals
  • Endress+Hauser CM42 Liquiline M transmitter back panel view showing mounting plate hardware and conduit attachment
  • Endress+Hauser CM42 transmitter bottom view showing cable entry glands and conduit port configuration

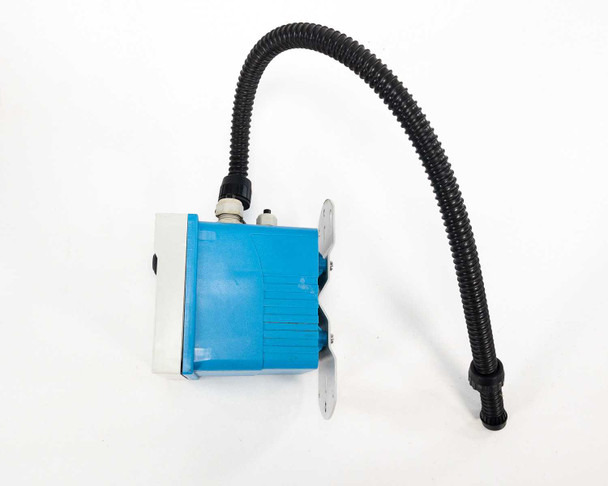

  • Endress+Hauser CM42 Liquiline M transmitter side view showing conduit routing and mounting plate bracket

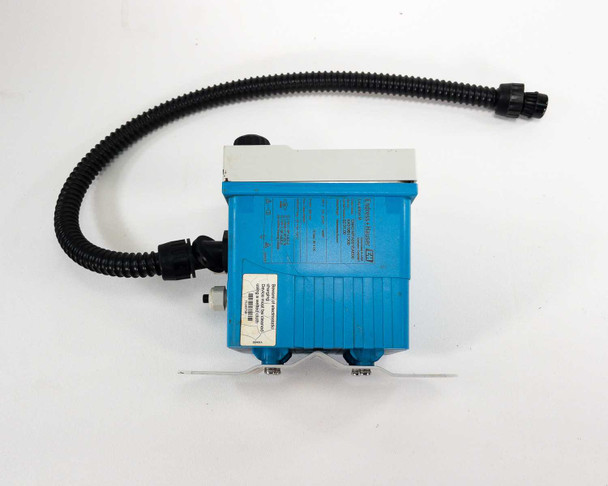

  • Endress+Hauser CM42 transmitter bottom/side view showing rating label and mounting bracket feet
$475.00
Was: $950.00
Current Stock: 3

Sold Out

Description

Endress+Hauser CM42 CM42-MPA001EAE00 Liquiline M Two-Wire Transmitter HART

Two-wire process transmitter for liquid analysis and Memosens sensor measurement. Outputs 3.6–22 mA HART signal over a single cable pair, reducing wiring complexity in industrial process installations.

Specifications & What's Included

  • Model: CM42-MPA001EAE00 (Device Version 02.01.00)
  • Protocols: HART, FOUNDATION Fieldbus, PROFIBUS PA
  • Supply: 30 V DC max; 88 mW power consumption
  • Output: 3.6–22 mA HART
  • Enclosure: IP66/67; Hazardous Area Class I Div 1 GP A,B,C,D; Class I Zone 0 GP IIC T6
  • Operating Temperature: -20°C and above
  • Includes mounting plate; no sensor, cable, or cover

Applications

Two-wire transmitters are standard in process control loops for remote monitoring of liquid properties. This model integrates with HART-capable control systems, DCS platforms, and fieldbus networks common in water treatment, chemical processing, and pharmaceutical manufacturing. Designed for direct wall or field mounting in hazardous areas.

Condition: Used
This Endress+Hauser CM42 Liquiline M two-wire transmitter has been inspected and appears to be in good used condition. It was pulled from a working process environment where it was in active service. The blue housing and display enclosure show normal wear consistent with field use; no cracks or significant damage are visible. The LCD and front panel controls look intact. The mounting plate is included. No sensor, sensor cable, or weather protection cover is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Endress+Hauser
Model:
CM42
MPN:
CM42-MPA001EAE00
Secondary Model:
CM42-MPA001EAE00
Type:
Two-Wire Process Transmitter
SKU:
52927
Device Version:
02.01.00
Series:
Liquiline M
Measurement Type:
Liquid Analysis / Memosens Sensor
Output Signal:
3.6–22 mA (HART)
Protocol:
HART, FOUNDATION Fieldbus, PROFIBUS PA
Max Supply Voltage:
30 V DC
Max Power Consumption:
88 mW
Enclosure Rating:
IP66/67
Ambient Temperature Range:
-20°C and above (per label)
Hazardous Area Rating:
Class I Div 1 GP A,B,C,D; Class I Zone 0 GP IIC T6
Additional Approval:
Class I Div 2 GP A,B,C,D
Control Drawing:
139680
Pollution Degree:
3
Form Factor:
Field-Mount / Wall-Mount
Interface Type:
HART / FOUNDATION Fieldbus / PROFIBUS PA
Seller Notes:
Includes mounting plate. No sensor, sensor cable, or weather protection cover.
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Germany
Condition Notes:
Endress+Hauser CM42 Liquiline M two-wire transmitter. Inspected, in good used condition. Pulled from a working process environment. Includes mounting plate. No sensor, sensor cable, or weather protection cover.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
