Foxboro

Foxboro E99-FAIN pH Transmitter 4-20mA Output 120VAC 60Hz 8.5W CS-E/FN-A

(No reviews yet) Write a Review
SKU:
45857
MPN:
E99-FAIN
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
26.00 LBS
Shipping:
Calculated at Checkout
  • Foxboro E99-FAIN pH Transmitter – front-left view showing gray enclosure, analog pH meter face, and red banana jack connections

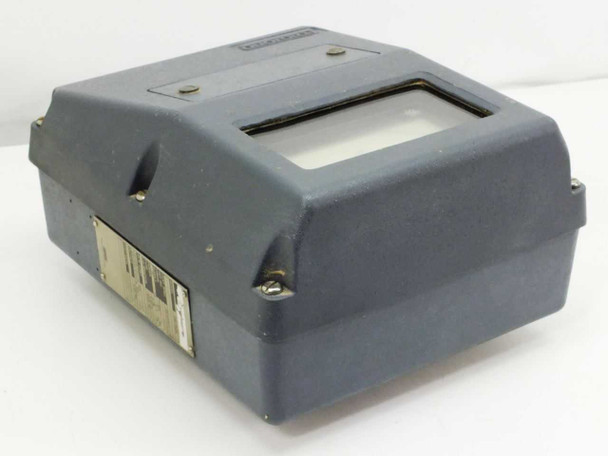

  • Foxboro E99-FAIN pH Transmitter – rear-right view showing rating label and gray molded enclosure

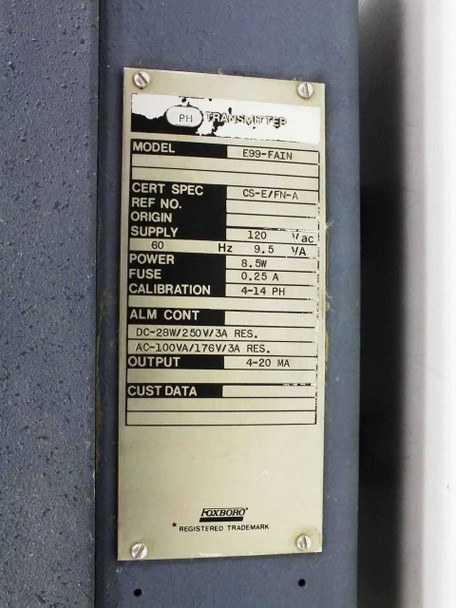

  • Foxboro E99-FAIN pH Transmitter – rating plate showing model E99-FAIN, 120VAC 60Hz 9.5VA, 8.5W, 4-20mA output, calibration 4-14 pH, Cert Spec CS-E/FN-A
  • Foxboro E99-FAIN pH Transmitter – close-up of analog pH meter face showing 4-14 pH scale

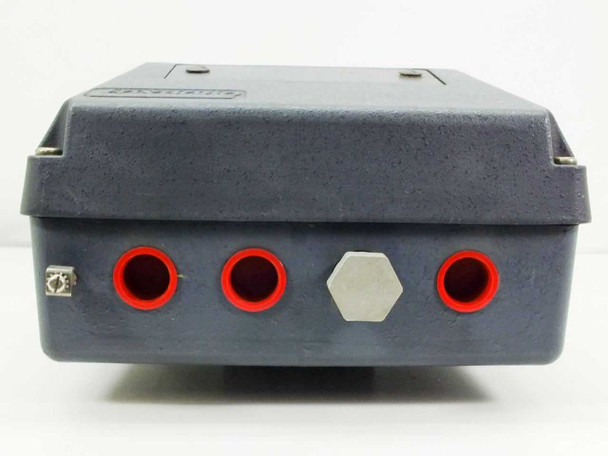

  • Foxboro E99-FAIN pH Transmitter – front panel view showing four red banana jack input connections and conduit knockout

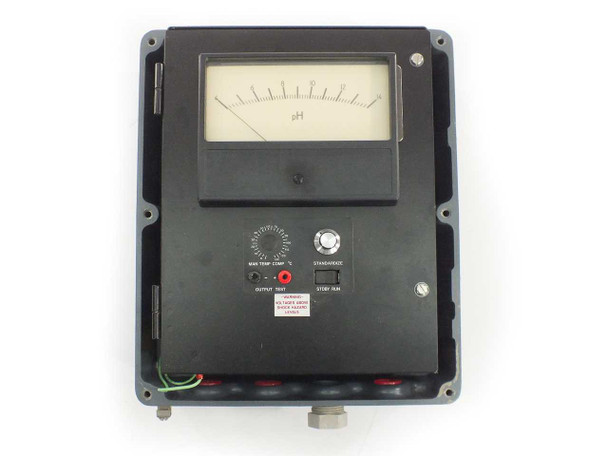

  • Foxboro E99-FAIN pH Transmitter – interior front panel open showing large analog pH meter, manual temp comp and standardize controls, output and start run switches
  • Foxboro E99-FAIN pH Transmitter – interior circuit board view showing analog PCBs, blue terminal block labeled IN-1 BLK, IN-2 WHT, SH.1, SOL, GND, SH.2
  • Foxboro E99-FAIN pH Transmitter – close-up of interior PCBs showing analog components, transistors, capacitors, and blue SH.1/SOL/GND/SH.2 terminal block

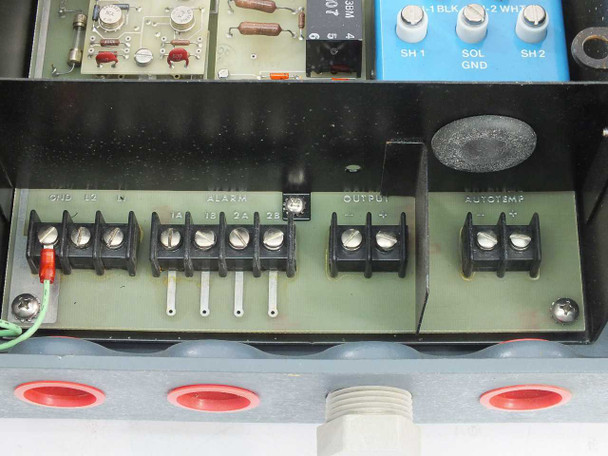

  • Foxboro E99-FAIN pH Transmitter – interior bottom terminal strip showing GND, IN, ALARM (1A, 1B, 2A, 2B), OUTPUT, and AUTOCOMP screw terminals
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

Foxboro E99-FAIN pH Transmitter 4-20mA Output 120VAC 60Hz 8.5W CS-E/FN-A

Industrial pH transmitter for continuous monitoring and measurement of pH levels in process streams. Outputs 4-20mA signal for direct connection to control systems and data acquisition equipment.

Specifications & What's Included

  • Output Signal: 4-20 mA
  • Input Voltage: 120V AC, 60Hz
  • Power Consumption: 8.5W / 9.5VA
  • Calibration Range: 4-14 pH
  • Alarm Contacts: DC-28W / 250V / 3A Resistive; AC-100VA / 176V / 3A Resistive
  • Fuse Rating: 0.25A
  • Form Factor: Benchtop / Wall Mount
  • Unit only — no probe or accessories included

Applications

pH transmitters are used in water treatment, chemical processing, wastewater management, and laboratory environments for real-time pH monitoring. The 4-20mA output integrates with standard industrial control systems, PLCs, and analog input modules. Foxboro units are commonly deployed in process automation and environmental monitoring applications.

Condition: Used
This Foxboro E99-FAIN pH Transmitter has been powered on at our facility with 120V AC — the analog pH meter responds and moves to a non-zero position on power-up. We were not able to test it further (no pH probe or reference solution available), so full calibration and output accuracy have not been verified. The gray enclosure shows general surface dirt and wear consistent with field or industrial use, visible across the exterior. The front-panel banana jacks and interior terminal strips appear intact. The internal PCBs are present and appear undamaged in photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Foxboro
Model:
E99-FAIN
MPN:
E99-FAIN
Type:
pH Transmitter
SKU:
45857
Cert Spec:
CS-E/FN-A
Output Signal:
4-20 mA
Input Voltage:
120V AC, 60Hz
Power Consumption:
8.5W / 9.5VA
Calibration Range:
4-14 pH
Fuse Rating:
0.25A
Alarm Contact Output (DC):
DC-28W / 250V / 3A Resistive
Alarm Contact Output (AC):
AC-100VA / 176V / 3A Resistive
Measurement Type:
pH
Form Factor:
Benchtop / Wall Mount
Condition:
Used – Powers On, Meter Responds; Further Testing Limited
Country/Region of Manufacture:
United States
Seller Notes:
Unit only — no probe or accessories included.
Condition Notes:
Foxboro E99-FAIN pH Transmitter powers on with 120VAC — analog meter responds on startup. Full testing not possible (no probe available). Enclosure shows surface dirt and wear. Internal PCBs appear intact. Please contact us with questions.
View AllClose

Related Products

Related Products

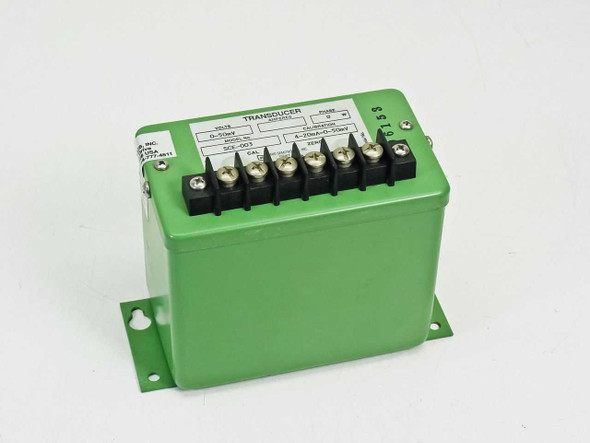

Ohio Semitronics SCE-003 green voltage transducer — front and top angled view showing label and screw terminal block Ohio Semitronics SCE-003 transducer — rear and side angled view showing mounting flanges and terminal wiring positions
Add to Cart
Quick view

Ohio Semitronics SCE-003 Voltage Transducer 0-50mV Input 4-20mA Output

Ohio Semitronics Inc

$85.00
Was: $175.00
Ohio Semitronics SCE-003 Voltage Transducer 0-50mV Input 4-20mA OutputThe Ohio Semitronics SCE-003 is a single-phase voltage transducer that converts a low-level DC millivolt input signal (0–50mV)...
44134
SKU:
44134
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Ohio Semitronics
Model:
SCE-003
MPN:
SCE-003
Type:
Voltage Transducer / Signal Conditioner
SKU:
44134
Input Signal:
0-50mV DC (Volts)
Output Signal:
4-20mA
Calibration:
4-20mA = 0-50mV
Input Range:
0-50mV
Phase:
Single Phase
Enclosure Color:
Green
Connection Type:
Screw Terminal Block (6 terminals)
Country/Region of Manufacture:
United States
Form Factor:
Panel Mount / DIN-style enclosure
Adjustments:
CAL (Calibration) and ZERO trimmer potentiometers
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included.
Condition Notes:
Ohio Semitronics SCE-003 voltage transducer in good used condition. Pulled from a working environment. Enclosure is clean with light surface wear. Label legible; terminals and trimmers intact.

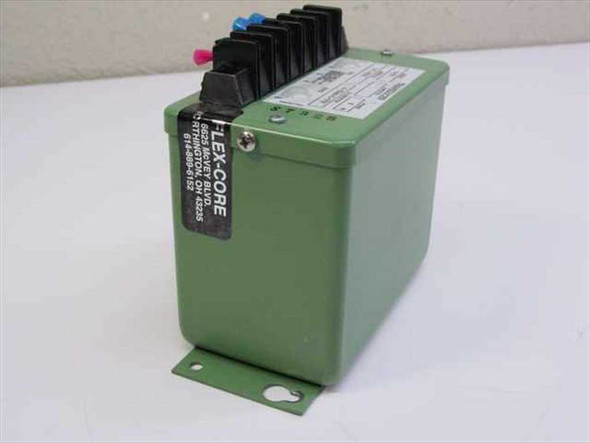

Flex-Core VT7-003E AC voltage transducer — front and top view showing green enclosure, screw terminal block with color-coded wiring, and wiring diagram label Flex-Core VT7-003E transducer — left-side view showing Flex-Core manufacturer label and green enclosure with mounting bracket
