Endress+Hauser CM42 CM42-MPA001EAE00 Liquiline M Two-Wire Transmitter HART
Endress-Hauser
$475.00Was: $950.00Endress+Hauser CM42 CM42-MPA001EAE00 Liquiline M Two-Wire Transmitter HARTTwo-wire process transmitter for liquid analysis and Memosens sensor measurement. Outputs 3.6–22 mA HART signal over a single...52927- SKU:
- 52927
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Endress+Hauser
- Model:
- CM42
- MPN:
- CM42-MPA001EAE00
- Secondary Model:
- CM42-MPA001EAE00
- Type:
- Two-Wire Process Transmitter
- SKU:
- 52927
- Device Version:
- 02.01.00
- Series:
- Liquiline M
- Measurement Type:
- Liquid Analysis / Memosens Sensor
- Output Signal:
- 3.6–22 mA (HART)
- Protocol:
- HART, FOUNDATION Fieldbus, PROFIBUS PA
- Max Supply Voltage:
- 30 V DC
- Max Power Consumption:
- 88 mW
- Enclosure Rating:
- IP66/67
- Ambient Temperature Range:
- -20°C and above (per label)
- Hazardous Area Rating:
- Class I Div 1 GP A,B,C,D; Class I Zone 0 GP IIC T6
- Additional Approval:
- Class I Div 2 GP A,B,C,D
- Control Drawing:
- 139680
- Pollution Degree:
- 3
- Form Factor:
- Field-Mount / Wall-Mount
- Interface Type:
- HART / FOUNDATION Fieldbus / PROFIBUS PA
- Seller Notes:
- Includes mounting plate. No sensor, sensor cable, or weather protection cover.
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- Germany
- Condition Notes:
- Endress+Hauser CM42 Liquiline M two-wire transmitter. Inspected, in good used condition. Pulled from a working process environment. Includes mounting plate. No sensor, sensor cable, or weather protection cover.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$475.00Was: $950.00 -
Endress+Hauser Promag 10 10W2F Electromagnetic Flowmeter HART I-Out Pulse Out
Endress-Hauser
$425.00Was: $850.00Endress+Hauser Promag 10 10W2F Electromagnetic Flowmeter HART I-Out Pulse OutThe Endress+Hauser Promag 10 is a two-component electromagnetic flowmeter system consisting of the Promag 10 transmitter...52323- SKU:
- 52323
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- Endress+Hauser
- Model:
- Promag 10
- MPN:
- 10W2F
- Order Code:
- 10W2F-ULGA1RG2B5AA
- Type:
- Electromagnetic Flowmeter (Magmeter)
- SKU:
- 52323
- Seller Notes:
- Includes transmitter head and Promag W sensor with connecting cable.
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Remote Mount (Transmitter + Sensor)
- Power Requirements:
- 11-40VDC / 20-28VAC, 50-60Hz, 8VA/6W
- Output Type:
- I-Out (HART 4-20mA), Pulse Output
- Communication Protocol:
- HART
- Enclosure Rating:
- NEMA/Type 4X
- Hazardous Area Classification:
- FM: CL I, DIV.2, GP ABCD; CL II, DIV.1
- Temperature Range:
- -20°C to +60°C (-4°F to +140°F)
- Display:
- LCD with 3-button keypad (Esc, -, +, E)
- Certifications:
- CE, FM Approved, CSA, NI2895
- Approvals:
- Dust-Ignitionproof CL II DIV.1; CL I Zone 2 IIC T4A
- Application:
- Water and wastewater flow measurement
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Endress+Hauser Promag 10 10W2F electromagnetic flowmeter in good used condition. Pulled from a working environment where it was in active service. Light surface wear on housing. LCD and keypad intact. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$425.00Was: $850.00 -

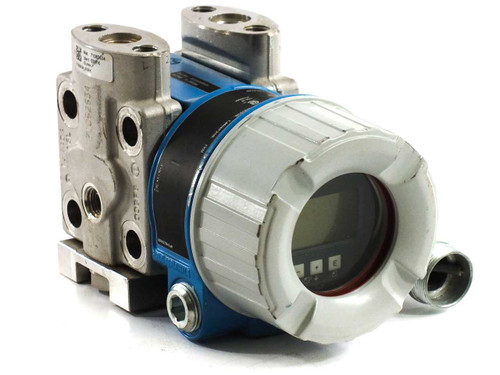

Endress+Hauser PMD55 Deltabar Differential Pressure Transmitter 0-200 PSI HART
Endress-Hauser
$600.00Was: $1,200.00Endress+Hauser PMD55 Deltabar Differential Pressure Transmitter 0-200 PSI HARTField-mounted differential pressure transmitter for process and environmental monitoring. Measures pressure differential...52318- SKU:
- 52318
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 14.00 LBS
- Brand:
- Endress+Hauser
- Model:
- PMD55
- MPN:
- PMD55-ED80/101
- Secondary Model:
- PMD55-CD21BD67LGJHAJA1A+AAF
- Material Number:
- 71082634
- Ident:
- 033FK
- SKU:
- 52318
- Type:
- Differential Pressure Transmitter
- Condition:
- Used – Pulled from Working Environment
- Output Signal:
- 4–20mA HART
- Pressure Range:
- 0–200 PSI
- Calibration/Adjustment Range:
- 0...200 PSI
- Span:
- 12/240 PSI
- Supply Voltage:
- 11.5...45V DC
- Sensor Type:
- Piezoresistive, welded metallic membrane
- Safety Integrity Level:
- SIL2 per IEC 61508 / IEC 61511
- Display:
- Integrated LCD display with keypad
- Enclosure Type:
- TYPE4X/6P
- Certifications:
- CSA, CE, Ex (intrinsically safe)
- Measurement Medium:
- Liquids, vapors, gases
- Application:
- Process and environmental differential pressure measurement
- Country/Region of Manufacture:
- USA (Endress+Hauser, Greenwood, IN)
- Form Factor:
- Field-mount transmitter
- Seller Notes:
- Unit only; no accessories. Pulled from a facility that closed operations.
- Condition Notes:
- Endress+Hauser PMD55 Deltabar DP transmitter inspected and in good used condition. Pulled from a facility that closed operations. Light service wear; LCD window clear. No damage noted. Contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00
