Endress+Hauser Promag 10 10W2F Electromagnetic Flowmeter HART I-Out Pulse Out

Endress+Hauser Promag 10 10W2F Electromagnetic Flowmeter HART I-Out Pulse Out

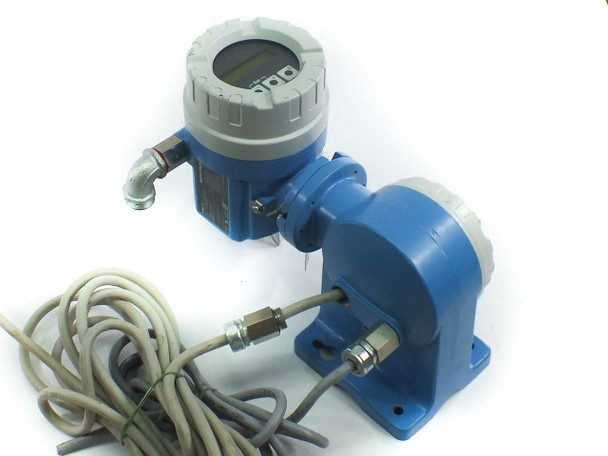

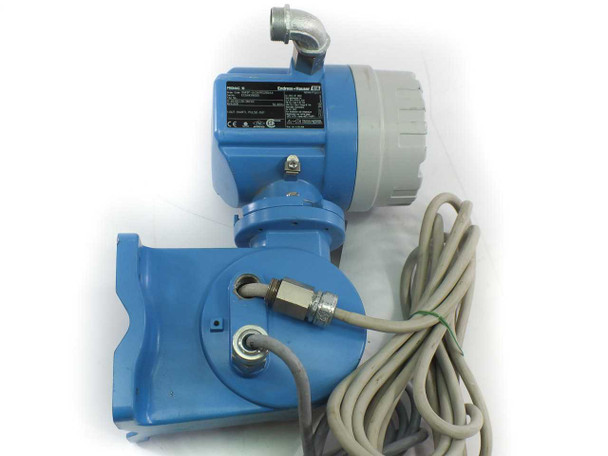

The Endress+Hauser Promag 10 is a two-component electromagnetic flowmeter system consisting of the Promag 10 transmitter head and the Promag W flow sensor. The unit operates on the principle of electromagnetic induction (Faraday's law) to measure the volumetric flow of electrically conductive liquids — with no moving parts and no obstruction in the flow path. This is a remote-mount configuration, with the transmitter connected to the sensor via coaxial signal cable.

Specifications & What's Included

• Manufacturer: Endress+Hauser
• Product Family: Promag 10
• Sensor Series: Promag W (optimized for water and wastewater applications)

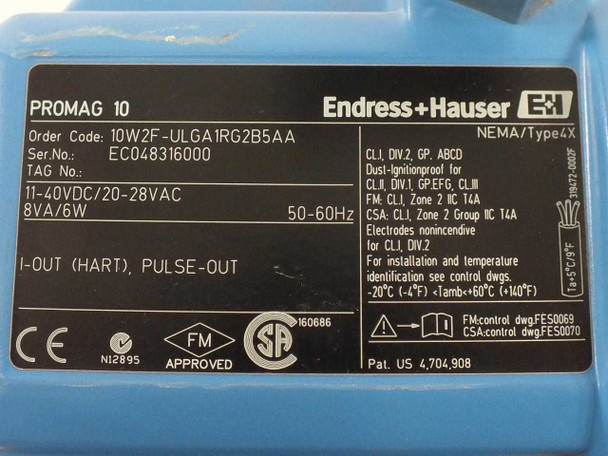

• Order Code: 10W2F-ULGA1RG2B5AA
• Output: I-Out (HART 4–20 mA) and Pulse Output
• Communication Protocol: HART
• Power Supply: 11–40 VDC / 20–28 VAC, 50–60 Hz
• Power Consumption: 8 VA / 6 W
• Enclosure Rating: NEMA/Type 4X (weather- and dust-resistant)
• Ambient Temperature Range: −20°C to +60°C (−4°F to +140°F)
• Display: LCD with 3-button keypad (Esc, −, +, E) for local configuration
• Hazardous Area: FM Class I, Div. 2, Groups ABCD; Class II, Div. 1, Groups EFG, CLIII
• CSA: Class I, Zone 2 Group IIC T4A; non-incendive for Class I, Div. 2
• Certifications: CE, FM Approved, CSA, NI2895

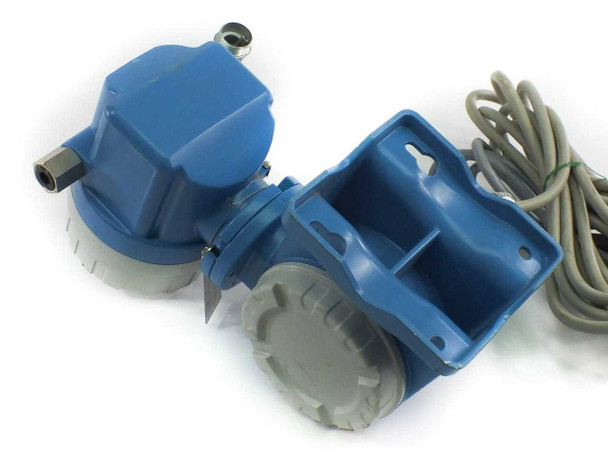

• Configuration: Remote mount — transmitter head and Promag W sensor included with connecting coaxial cable

Applications

Electromagnetic flowmeters like the Promag 10 are widely used to measure the flow of conductive liquids in industrial and municipal water systems — including drinking water distribution, wastewater treatment, irrigation, and process water loops. Because the sensor introduces no moving parts and no pressure drop in the pipe, it is well suited for continuous flow measurement in applications where maintenance access is limited. The HART output makes it compatible with plant-wide control and monitoring systems (DCS, SCADA, PLCs) that support the HART protocol, while the pulse output can drive mechanical or digital totalizers directly. The Promag W sensor is specifically designed for water-industry media, including chemically treated water and mildly aggressive process liquids. The NEMA 4X / IP65-equivalent housing allows installation in wet, hose-down, or outdoor environments, and the FM/CSA hazardous-area ratings (Class I Div. 2) make it suitable for locations with intermittent presence of flammable vapors. The Promag 10 platform was introduced by Endress+Hauser as an entry-level magmeter transmitter designed for straightforward flow measurement tasks where full digital fieldbus communication is not required, making it a cost-effective solution for water and wastewater infrastructure.
