Daedal Pneumatic Clamp Assembly w/ Transducer Blue Lever Knurled Wheel Benchtop

(No reviews yet) Write a Review
SKU:
26975
MPN:
Pneumatic
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

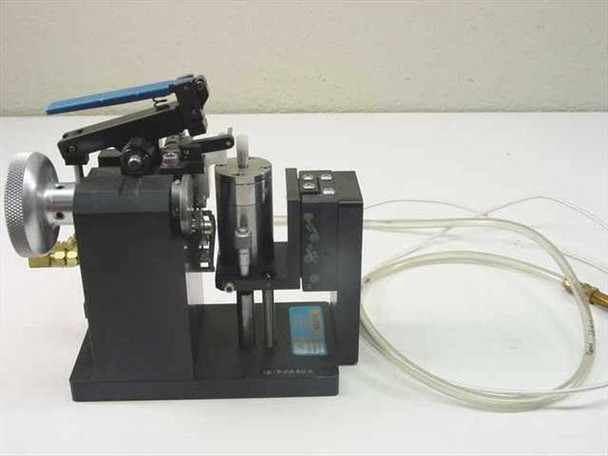

  • Daedal pneumatic clamp assembly left side view showing black anodized frame, blue lever, knurled wheel, and clear tubing with multi-pin cable
  • Daedal pneumatic clamp assembly right side view showing Daedal Inc label on black module, blue lever, pneumatic cylinder, and brass fittings
  • Close-up of Daedal clamp assembly carriage showing precision clamp jaws, adjustment screws, black levers, and cylindrical actuator piston
  • Close-up of blue anodized lever with part marking ID-P2030-A, spring return mechanism, and clamping block on black anodized frame
  • Close-up of brass pneumatic fittings and compression connectors on the base of the Daedal clamp assembly with clear tubing
  • Close-up of cylindrical transducer module mounted in carriage clamp on Daedal assembly with Daedal Inc label visible in background
  • Multi-pin circular signal connector at end of braided cable included with Daedal pneumatic clamp assembly
  • Brass threaded pneumatic fitting at end of clear tubing line included with Daedal clamp assembly
$225.00
Was: $450.00
Current Stock: 1

Sold Out

Description

Daedal Pneumatic Clamp Assembly w/ Transducer Blue Lever Knurled Wheel Benchtop

Pneumatic clamp assembly with integrated transducer cylinder for precision positioning and clamping applications. Features blue anodized aluminum lever with silver knurled adjustment wheel and black anodized aluminum frame.

Specifications & What's Included

  • Model: ID-P2030-A
  • Benchtop form factor with black anodized aluminum frame
  • Blue anodized lever with knurled wheel fine adjustment
  • Pneumatic cylinder actuator with transducer module
  • Brass compression fittings with clear tubing
  • Multi-pin circular connector signal cable included
  • Made in United States

Applications

Used in precision lab test fixtures, automation systems, and benchtop positioning rigs. Compatible with Daedal positioning stages and custom laboratory setups requiring pneumatic clamping control. The integrated transducer provides feedback for process monitoring in testing and manufacturing environments where repeatable positioning is required.

Condition: Used
This Daedal pneumatic clamp assembly has been inspected and is in good used condition with minimal wear. The black anodized frame, blue lever, knurled adjustment wheel, and brass fittings all look clean and show only light handling marks consistent with prior lab use. The transducer cylinder and multi-pin signal cable are included and show no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Daedal
Model:
Pneumatic Clamp Assembly
MPN:
ID-P2030-A
Type:
Pneumatic Clamp / Actuator Assembly
SKU:
26975
Condition:
Used – Inspected and Tested
Seller Notes:
Includes transducer cylinder, multi-pin signal cable, and brass pneumatic fittings
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Frame Material:
Black anodized aluminum
Lever Color:
Blue anodized aluminum
Lever Part Marking:
ID-P2030-A
Actuator Type:
Pneumatic cylinder
Fine Adjustment:
Silver knurled wheel
Transducer:
Cylindrical transducer module (Sensotec / similar)
Signal Cable:
Multi-pin circular connector cable included
Pneumatic Fittings:
Brass compression fittings, clear tubing
Application:
Precision clamping, lab test fixtures, automation
Compatible With:
Daedal positioning stages, custom lab/test rigs
Condition Notes:
This Daedal pneumatic clamp assembly has been inspected and is in good used condition with minimal wear. Frame, lever, fittings, transducer, and signal cable are included and show no visible damage. Please contact us with any questions.
View AllClose

Related Products

Related Products

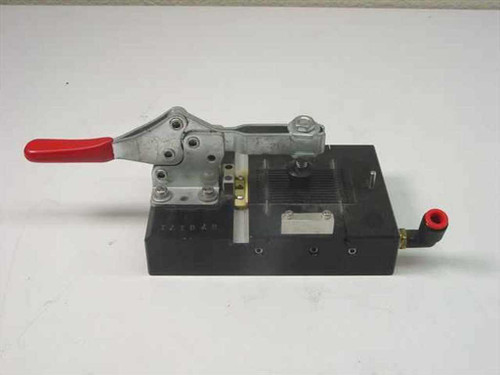

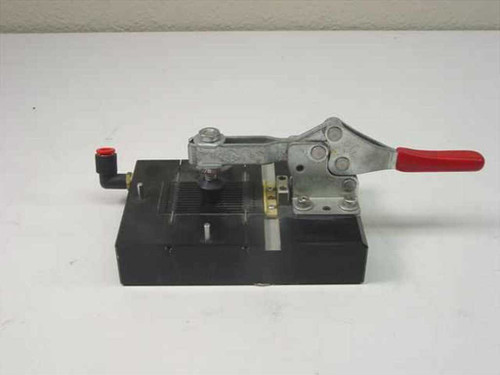

Pneumatic toggle clamp fixture assembly – left-side view showing red-handle toggle clamp over black aluminum base with push-in elbow air fitting Pneumatic toggle clamp fixture assembly – right-side view showing toggle clamp mechanism, brass hardware, and opposite-side push-in fitting
Add to Cart
Quick view

Pneumatic Toggle Clamp Fixture Assembly Industrial Automation Vacuum Chuck

Custom

$75.00
Was: $150.00
Pneumatic Toggle Clamp Fixture Assembly Industrial Automation Vacuum ChuckPneumatic toggle clamp fixture assembly for benchtop workholding applications. Features a black anodized aluminum base with...
26977
SKU:
26977
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Unbranded
Model:
Custom Pneumatic Toggle Clamp Fixture
Type:
Pneumatic Toggle Clamp Fixture Assembly
SKU:
26977
Condition:
Used – Inspected
Seller Notes:
Sold as pictured; one pneumatic toggle clamp fixture assembly
Application / Use Case:
Industrial automation workholding, semiconductor, PCB handling
Actuation:
Pneumatic / Manual Toggle Clamp
Base Material:
Black anodized aluminum block
Clamp Type:
Horizontal toggle clamp with red handle
Pneumatic Fitting Type:
Push-in elbow fitting (red/black), approx 6mm OD
Work Surface Feature:
Slotted vacuum chuck / grid surface on base top
Mounting Pins:
Two locating / guide pins visible on base top
Contact Pad:
Rubber tip / spindle screw on clamp arm
Form Factor:
Benchtop fixture
Interface / Connection:
Push-in pneumatic tube fittings
Condition Notes:
This pneumatic toggle clamp fixture assembly has been inspected and is in good used condition. Toggle clamp moves freely, fittings present, base block solid with normal use wear on the slotted chuck surface.
Daedal linear slide custom inspection assembly – front-left three-quarter view showing anodized black base, micrometer adjuster, and multi-axis mounting hardware Daedal linear slide custom inspection assembly – rear-right three-quarter view showing Daedal label on slide block, threaded lead screw, and clamping fixture detail
Add to Cart
Quick view

Daedal Linear Slide Custom Inspection Assembly with Micrometer Adjuster

Unbranded

$125.00
Was: $250.00
Daedal Linear Slide Custom Inspection Assembly with Micrometer AdjusterThis is a custom-built inspection and positioning assembly constructed around a Daedal linear slide. The assembly integrates a...
26989
SKU:
26989
Availability:
Usually ships within 1–2 business days.
Weight:
10.00 LBS
Brand:
Daedal
Model:
Custom Inspection Assembly
MPN:
Not Assigned
Type:
Linear Slide Inspection Assembly
SKU:
26989
Condition:
Used – Pulled from Working Environment
Seller Notes:
Custom assembly with Daedal linear slide and micrometer adjuster
Form Factor:
Benchtop / Freestanding
Primary Component:
Daedal Linear Slide
Adjustment Type:
Micrometer Fine Adjust
Base Material:
Anodized Aluminum / Black Hardcoat
Axis Configuration:
Linear with fine-adjust micrometer
Application:
Precision Inspection, Optical, Lab Positioning
Compatible With:
Optical bench, lab inspection, metrology setups
Country/Region of Manufacture:
United States
Condition Notes:
Daedal linear slide inspection assembly inspected and in good used condition. Micrometer and slide functional. Surface rust on some fasteners — cosmetic. Pulled from working environment. Photos available.

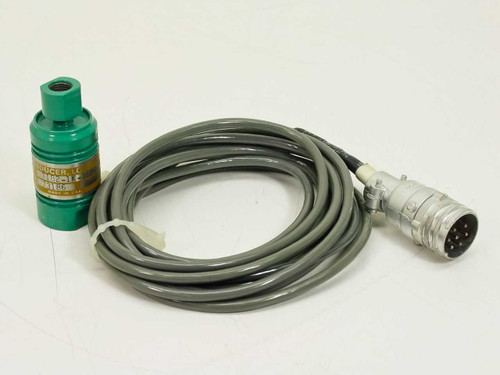

Load Cell Transducer TI82-1K-10P1 green cylindrical body with full gray multi-pin cable laid out — front view Load Cell Transducer TI82-1K-10P1 green body and cable with circular multi-pin connector — side profile view
