Description

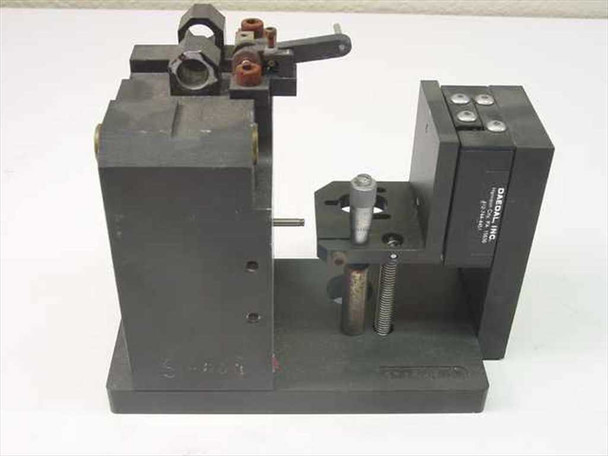

Daedal Linear Slide Custom Inspection Assembly with Micrometer Adjuster
This is a custom-built inspection and positioning assembly constructed around a Daedal linear slide. The assembly integrates a fine-adjustment micrometer with the linear slide mechanism, allowing controlled, repeatable linear positioning of a workpiece or fixture. The base and upright structure are machined from anodized aluminum with a black hardcoat finish. A pivoting clamp and bracket system is mounted to the upper portion of the assembly for securing components during inspection or measurement operations.
Specifications & What's Included
- Primary component: Daedal linear slide

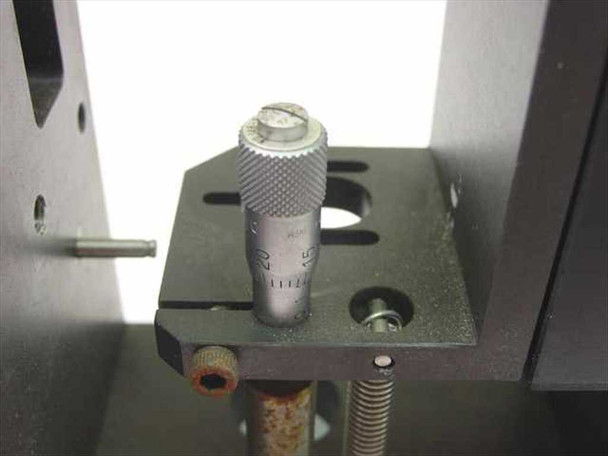

- Fine adjustment: knurled micrometer adjuster with graduated scale
- Base/frame material: anodized aluminum, black hardcoat finish

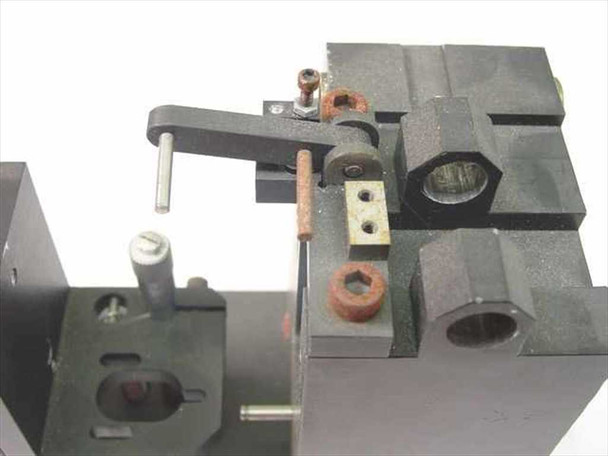

- Upper fixture: pivoting clamp and bracket assembly with mounting hardware
- Lead screw: visible threaded rod for coarse linear positioning
- Mounting: multiple threaded holes and slots in base for bench or fixture mounting
- Condition note: surface rust present on several fasteners and bracket hardware
Applications
Daedal (now part of Parker Hannifin) has been a long-standing manufacturer of precision linear motion stages, positioning tables, and slide assemblies used in laboratory, semiconductor, metrology, and optical applications. Assemblies of this type are used wherever a component must be positioned along a linear axis with fine, repeatable control — common in incoming inspection stations, optical alignment setups, contact measurement fixtures, and small-part quality control. The combination of a threaded lead screw for coarse travel and a micrometer for fine adjustment is a classic design found in lab and precision manufacturing environments from the 1970s onward. These custom assemblies are often purpose-built for a specific inspection task and can be adapted for use on an optical bench, a metrology station, or a custom test fixture where sub-millimeter positioning accuracy is needed.
This Daedal Linear Slide Custom Inspection Assembly has been inspected and appears to be in good used condition overall. The anodized aluminum base and slide components are intact, and the micrometer adjuster and linear slide move as expected. Some surface rust is visible on several fasteners and mounting bracket hardware — cosmetic in nature and typical for a piece of surplus lab equipment. The assembly was pulled from a working environment where it was in active use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Daedal |
Model: |
Custom Inspection Assembly |
MPN: |
Not Assigned |
Type: |
Linear Slide Inspection Assembly |
SKU: |
26989 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Custom assembly with Daedal linear slide and micrometer adjuster |
Form Factor: |
Benchtop / Freestanding |
Primary Component: |
Daedal Linear Slide |
Adjustment Type: |
Micrometer Fine Adjust |
Base Material: |
Anodized Aluminum / Black Hardcoat |
Axis Configuration: |
Linear with fine-adjust micrometer |
Application: |
Precision Inspection, Optical, Lab Positioning |
Compatible With: |
Optical bench, lab inspection, metrology setups |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Daedal linear slide inspection assembly inspected and in good used condition. Micrometer and slide functional. Surface rust on some fasteners — cosmetic. Pulled from working environment. Photos available. |
