Communication Techniques Inc.

CTI Communication Techniques P-13162 RF Filter 1042.5 MHz Satcom XTAL

(No reviews yet) Write a Review
SKU:
50435
MPN:
P-13162
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

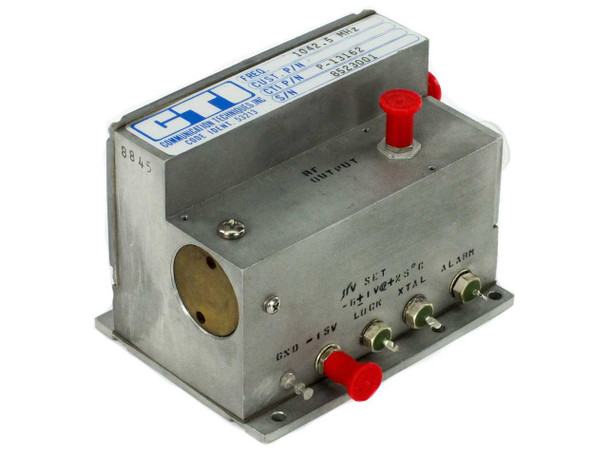

  • CTI Communication Techniques P-13162 RF Filter 1042.5 MHz – angled front-left view showing CTI logo label, RF Output port with red caps, and bottom-panel controls including JV SET, GSD +5V, LOCK, XTAL, and ALARM connectors
  • CTI P-13162 RF Filter – front face showing label with FREQ 1042.5 MHz, CTI P/N P-13162, S/N 8523001, Code Ident 53213, and RF OUTPUT SMA port with red protective cap
  • CTI Communication Techniques P-13162 RF Filter – rear/side view showing XTAL TUNE port, XTAL BOX label, FREQ-MHz 1042.25 sticker, circular input port, and 'Made in U.S.A.' marking on aluminum housing
$85.00
Was: $175.00
Current Stock: 1

Sold Out

Description

CTI Communication Techniques P-13162 RF Filter 1042.5 MHz Satcom XTAL

Crystal bandpass RF filter operating at 1042.5 MHz, designed for satellite communications applications. Aluminum shielded housing with SMA output connector and circular waveguide-style coaxial input connector for panel or benchtop mounting.

Specifications & What's Included

  • Manufacturer: Communication Techniques Inc. (CTI)
  • Model: P-13162 | MPN: P-13162
  • Type: RF Crystal (XTAL) Bandpass Filter
  • Center Frequency: 1042.5 MHz
  • Output Connector: SMA
  • Input Connector: Circular waveguide-style coaxial
  • Housing: Aluminum shielded with mounting flange
  • Manufactured: United States
  • Unit only; pulled from working environment

Applications

Crystal filters of this type are used in satellite communications systems for signal conditioning and interference rejection. The 1042.5 MHz frequency falls within typical Satcom receive/transmit bands. This filter was pulled from an active satcom installation where it provided bandpass filtering for RF signal chains requiring selective frequency response and low insertion loss in L-band operations.

Condition: Used
This Communication Techniques Inc. CTI P-13162 RF Filter (1042.5 MHz) has been inspected and is in good used condition. It was pulled from a working satcom environment where it was actively in use. The aluminum housing shows light surface wear consistent with field service use. The SMA RF output port and all panel-mount connectors appear clean and undamaged, with protective red caps still in place. The label is fully legible with all part number and frequency information intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Communication Techniques Inc. (CTI)
Model:
P-13162
MPN:
P-13162
Type:
RF Crystal Filter
SKU:
50435
Frequency:
1042.5 MHz
Filter Type:
Crystal (XTAL) Bandpass Filter
RF Output Connector:
SMA (visible on unit)
Input Connector:
Circular waveguide-style coaxial (front)
Code Ident:
53213
Serial Number Reference:
8523001
Application:
Satellite Communications (Satcom)
Enclosure:
Aluminum shielded housing with mounting flange
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; pulled from working satcom environment
Condition:
Used – Pulled from Working Environment
Form Factor:
Benchtop / Panel Mount Module
Condition Notes:
CTI P-13162 RF Filter 1042.5 MHz inspected and in good used condition. Pulled from a working satcom environment where it was in active use. Housing shows light wear; all connectors clean with caps intact. Photos available.
View AllClose

Related Products

Related Products

CPI Satcom P/P Controller Circuit Board 01026350 — top angled view showing full PCB with blue terminal connectors and main FPGA/processor IC CPI Satcom P/P Controller Board 01026350 — side-angled view showing capacitors, crystal oscillator, and blue latch connectors along board edges
Add to Cart
Quick view

CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave Satellite

CPI

$50.00
Was: $100.00
CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave SatelliteP/P controller circuit board assembly for CPI RF microwave satellite ground station systems. This PCB module manages power...
51819
SKU:
51819
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
CPI (Communications & Power Industries)
Model:
01026350
MPN:
01026350
Secondary Model:
59782-010263354-00-8
SKU:
51819
Type:
P/P Controller Circuit Board
Application:
RF Microwave Satellite Ground Station
Form Factor:
PCB / Card Module
Assembly Number:
ASSY 01026350
Compatible System:
CPI Satcom RF Microwave Satellite System
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only, no enclosure. Pulled from working satcom system.
Country/Region of Manufacture:
United States
Condition Notes:
CPI Satcom P/P Controller Board 01026350 pulled from a working RF microwave satellite system. Inspected and in good condition with no obvious damage. Normal handling wear. Board only.

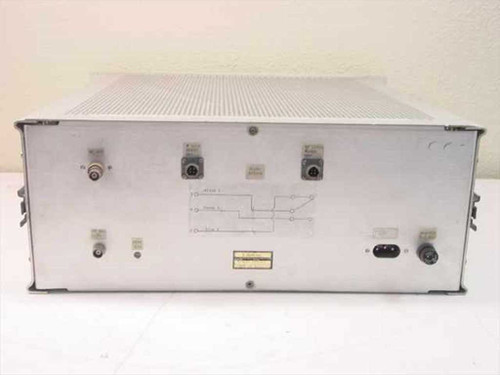

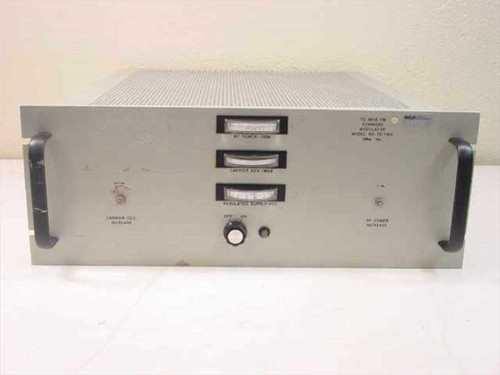

3dbm Inc 70FMO 70 MHz FM Command Modulator — front panel view showing three panel meters and OFF/ON rotary switch 3dbm Inc 70FMO FM Command Modulator — rear panel view showing BNC connectors, circular alarm relay connectors, IEC AC inlet, and hand-drawn wiring diagram
