CPI

CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave Satellite

(No reviews yet) Write a Review
SKU:
51819
MPN:
01026350
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

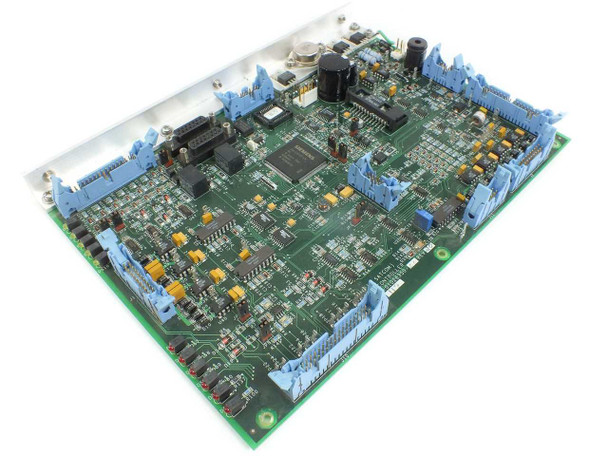

  • CPI Satcom P/P Controller Circuit Board 01026350 — top angled view showing full PCB with blue terminal connectors and main FPGA/processor IC
  • CPI Satcom P/P Controller Board 01026350 — side-angled view showing capacitors, crystal oscillator, and blue latch connectors along board edges

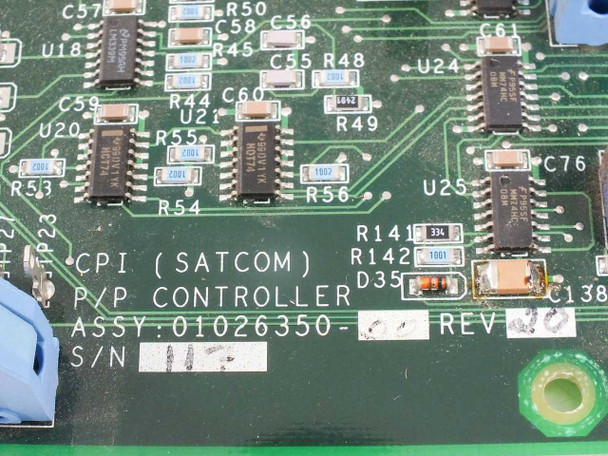

  • CPI Satcom P/P Controller PCB close-up of silkscreen label reading CPI (SATCOM) P/P CONTROLLER ASSY 01026350 with REV marking and serial number

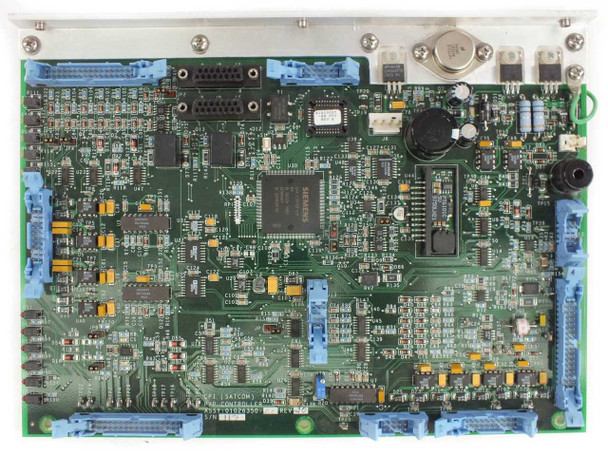

  • CPI Satcom 01026350 Controller Board — underside/reverse view showing DB-style connector header, TO-220 power transistors, and full component layout
  • CPI Satcom P/P Controller Board 01026350 — edge rail close-up showing secondary part number 59782-010263354-00-8 stamped on aluminum carrier frame
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave Satellite

P/P controller circuit board assembly for CPI RF microwave satellite ground station systems. This PCB module manages power and protocol functions within satcom RF transmission equipment.

Specifications & What's Included

  • Brand: CPI (Communications & Power Industries)
  • Model/MPN: 01026350
  • Secondary Model: 59782-010263354-00-8
  • Type: P/P Controller Circuit Board Assembly
  • Form Factor: PCB/Card Module
  • Application: RF Microwave Satellite Ground Station
  • Manufactured in United States
  • Board only, no enclosure included

Applications

P/P controller boards manage power distribution and protocol management in satellite communication ground station equipment. This assembly was used in CPI satcom RF microwave systems for transmit/receive operations. Compatible with CPI satellite RF microwave ground station platforms. Typically integrated into larger satcom transmission and reception systems requiring precision power and signal control.

Condition: Used
This CPI Satcom P/P Controller Circuit Board (Assy 01026350) was pulled from a working RF microwave satellite system and has been inspected. It appears to be in good condition with no obvious physical damage. The PCB shows typical light handling wear consistent with prior installation in a rack system. The blue terminal latch connectors are intact and the board is free of visible corrosion or burnt components. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CPI (Communications & Power Industries)
Model:
01026350
MPN:
01026350
Secondary Model:
59782-010263354-00-8
SKU:
51819
Type:
P/P Controller Circuit Board
Application:
RF Microwave Satellite Ground Station
Form Factor:
PCB / Card Module
Assembly Number:
ASSY 01026350
Compatible System:
CPI Satcom RF Microwave Satellite System
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only, no enclosure. Pulled from working satcom system.
Country/Region of Manufacture:
United States
Condition Notes:
CPI Satcom P/P Controller Board 01026350 pulled from a working RF microwave satellite system. Inspected and in good condition with no obvious damage. Normal handling wear. Board only.
View AllClose

Related Products

Related Products

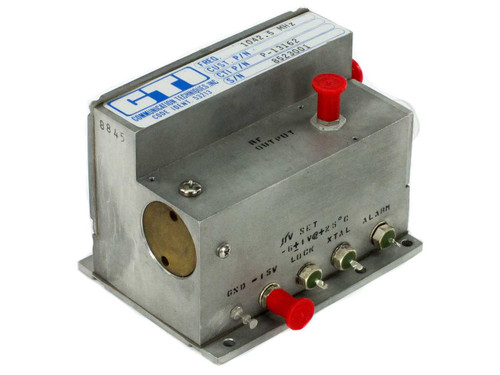

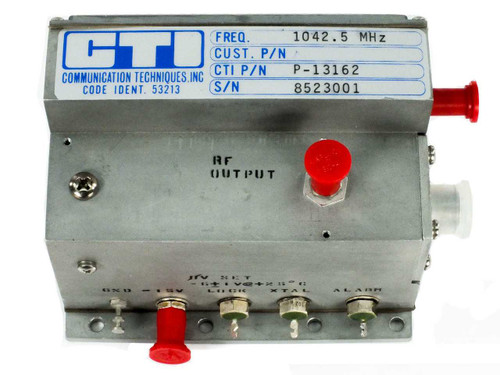

CTI Communication Techniques P-13162 RF Filter 1042.5 MHz – angled front-left view showing CTI logo label, RF Output port with red caps, and bottom-panel controls including JV SET, GSD +5V, LOCK, XTAL, and ALARM connectors CTI P-13162 RF Filter – front face showing label with FREQ 1042.5 MHz, CTI P/N P-13162, S/N 8523001, Code Ident 53213, and RF OUTPUT SMA port with red protective cap
