CPI
-
CPI VZC-6964A4 400W C-Band TWTA Satellite Amplifier 5.85-6.65 GHz For Parts
CPI
$1,200.00Was: $2,400.00CPI VZC-6964A4 400W C-Band TWTA Satellite Amplifier 5.85-6.65 GHz For Parts Traveling wave tube amplifier (TWTA) designed for C-band satellite uplink applications. Operates across 5.85–6.65 GHz with...52287- SKU:
- 52287
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 67.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- VZC-6964A4
- Secondary Model:
- VZC-6964
- MPN:
- 01018590-02
- SKU:
- 52287
- Type:
- Traveling Wave Tube Amplifier (TWTA)
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Fans spin on power-up.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount, 3U
- Frequency Band:
- C-Band
- Frequency Range:
- 5.850 – 6.650 GHz
- Output Power:
- 400 W
- Application:
- Satellite Uplink / Earth Station
- Signal Type:
- Wideband, Single- and Multi-Carrier
- TWT Type:
- Dual-Depressed Collector Helix TWT
- Interface:
- Local/Remote Control, CIF
- Rear Connectors:
- D-Sub (2x), DB-25, BNC (RF), Multi-pin
- Standards Compliance:
- EN60215
- Division:
- CPI Satcom Division (formerly Varian)
- Compatible With:
- Fixed and transportable earth stations
- Control:
- Microprocessor-controlled with computer interface
- Condition Notes:
- CPI VZC-6964A4 400W C-Band TWTA sold as-is for parts or repair. Came from an earth station, reported non-working. Fans spin on power-up. Not bench-tested by us. No functionality guaranteed.
$1,200.00Was: $2,400.00 -
CPI VZC-6964A4 400W C-Band SATCOM TWT Amplifier CMPA 5.85-6.65 GHz For Parts
CPI
$2,000.00Was: $4,000.00CPI VZC-6964A4 400W C-Band SATCOM TWT Amplifier CMPA 5.85-6.65 GHz For Parts The CPI VZC-6964A4 is a compact medium power amplifier (CMPA) designed for C-Band satellite uplink service, covering the...52286- SKU:
- 52286
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 75.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- VZC-6964A4
- MPN:
- 01018590-02
- Type:
- C-Band Compact Medium Power TWT Amplifier (CMPA)
- SKU:
- 52286
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair due to failed traveling wave tube (TWT).
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount, 3U
- Frequency Band:
- C-Band, 5.850–6.650 GHz
- Output Power:
- 400W
- Amplifier Technology:
- Traveling Wave Tube (TWT) — Dual-Depressed Collector Helix
- Application:
- SATCOM Earth Station, Satellite Uplink
- Control Interface:
- Microprocessor-controlled; local/remote CIF
- Standards Compliance:
- EN60215
- Metering:
- Digital LED — RF Output, Helix V, Helix I, Attenuator, Reflected RF
- Fault Indicators:
- 20-point fault matrix — TWT, SSPA, DC Bus, Interlock, Arc faults
- Formerly / Also Known As:
- Varian (formerly Varian MEP / Satcom Division)
- Fault Status:
- TWT tube failed / TWT Arc Fault noted on unit label
- Compatible With:
- Fixed and transportable C-Band earth station systems
- Condition Notes:
- CPI VZC-6964A4 400W C-Band TWT Amplifier sold AS-IS for parts/repair. Failed TWT (arc fault confirmed on unit label). Chassis powers on, fan runs, OED self-test passes — no RF output. Do not plug in per Panatron warning label.
$2,000.00Was: $4,000.00 -
CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave Satellite
CPI
$50.00Was: $100.00CPI Satcom P/P Controller Circuit Board Assy 01026350 RF Microwave SatelliteP/P controller circuit board assembly for CPI RF microwave satellite ground station systems. This PCB module manages power...51819- SKU:
- 51819
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 3.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- 01026350
- MPN:
- 01026350
- Secondary Model:
- 59782-010263354-00-8
- SKU:
- 51819
- Type:
- P/P Controller Circuit Board
- Application:
- RF Microwave Satellite Ground Station
- Form Factor:
- PCB / Card Module
- Assembly Number:
- ASSY 01026350
- Compatible System:
- CPI Satcom RF Microwave Satellite System
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only, no enclosure. Pulled from working satcom system.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- CPI Satcom P/P Controller Board 01026350 pulled from a working RF microwave satellite system. Inspected and in good condition with no obvious damage. Normal handling wear. Board only.
$50.00Was: $100.00 -
CPI K4U 01029240-05 Rev.6 Kyltron 2.45kW Gen IV Satcom Power Supply 480V 3Ph
CPI
$900.00Was: $1,800.00CPI K4U 01029240-05 Rev.6 Kyltron 2.45kW Gen IV Satcom Power Supply 480V 3Ph High-power DC power supply designed for satellite ground station transmit/receive equipment. Converts 480V three-phase AC...50441- SKU:
- 50441
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 116.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- K4U
- MPN:
- 01029240-05
- Secondary Model:
- 01029240-05 Rev.6
- Type:
- Satcom High-Power DC Power Supply
- SKU:
- 50441
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Unit has failed.
- Country/Region of Manufacture:
- United States
- Series:
- Kyltron Gen IV
- Power Rating:
- 2.45 kW
- Input Voltage:
- 480V
- Input Phase:
- 3-Phase
- AC Input Voltage Range:
- 200/220V, 350/380/415V, 480V 60Hz; 200V 50Hz
- Compatible With:
- CPI 01026310-03 S/N 1001
- Revision:
- Rev.6
- Division:
- CPI Satcom Division
- Form Factor:
- Rackmount / Chassis
- Application:
- Satellite Ground Station, TWTA Power Supply
- Condition Notes:
- CPI K4U Kyltron 2.45kW Satcom Power Supply 01029240-05 has failed and is sold AS-IS for parts or repair only. Not functional, no guarantee of operability. For technicians/repair. View photos; contact us with questions.
$900.00Was: $1,800.00 -

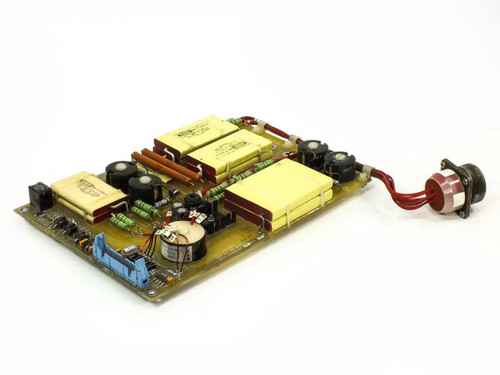

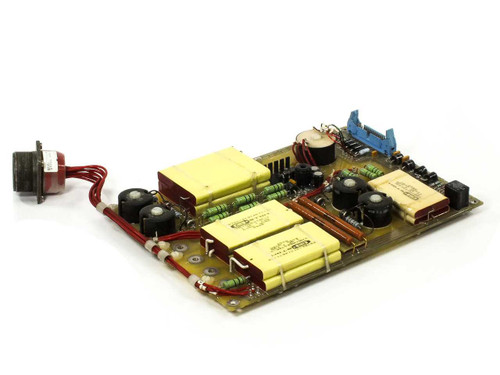

CPI Satcom Gen IV HV Module High Power KPA Assembly 01026320 Rev 13
CPI
$750.00Was: $1,500.00CPI Satcom Gen IV HV Module High Power KPA Assembly 01026320 Rev 13High voltage power supply module designed for satellite communications high power klystron power amplifier (KPA) systems. This PCB...50361- SKU:
- 50361
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- CPI (Communications & Power Industries)
- Model:
- 01026320
- MPN:
- 01026320-00
- Secondary Model:
- Gen IV HV Module
- Revision:
- Rev 13
- Type:
- High Voltage Power Supply Module
- Application:
- High Power KPA (Klystron Power Amplifier) Satcom
- Form Factor:
- PCB / Board Module
- Connector Type:
- Military-style circular multi-pin connector (8-pin)
- Key Components:
- Custom wound HV capacitors, toroidal HV transformer, HV rectifier network
- HV Capacitors:
- Custom KMR1A6607SP-2, 0.1uF ±10%, 6000V DC (x2 visible)
- Transformer Part Number:
- CPU026324-00, Rev A
- VMEP Code:
- VMEP T59
- SKU:
- 50361
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only with attached HV output connector harness
- Country/Region of Manufacture:
- United States
- Condition Notes:
- CPI Satcom Gen IV HV Module Assy 01026320 Rev 13. Pulled from a working environment where it was in active use. Board inspected and appears in good condition. HV capacitors, transformer, and connector harness intact with no visible damage.
$750.00Was: $1,500.00
