CPI Satcom Gen IV HV Module High Power KPA Assembly 01026320 Rev 13

(No reviews yet) Write a Review
SKU:
50361
MPN:
Assy 01026320
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

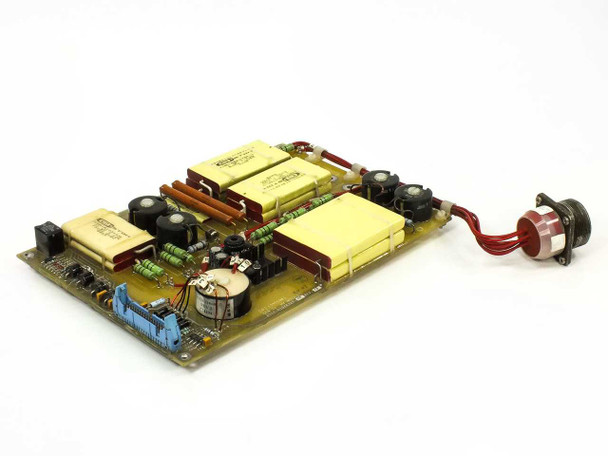

  • CPI Satcom Gen IV HV Module Assy 01026320 – three-quarter view showing PCB with yellow HV capacitors and attached 8-pin circular connector on red wire harness
  • CPI Satcom Gen IV HV Module 01026320 – opposite three-quarter angle showing underside component layout with large yellow transformer and capacitor banks
  • CPI Satcom Gen IV HV Module label closeup – reads CPI (SATCOM) GEN IV HV MODULE ASSY 01026320-00 REV 13 with VMEP T59 stamp and serial number 117
  • CPI Satcom Gen IV HV Module 01026320 – top-down view showing full PCB layout with yellow wound HV capacitors, toroidal transformer, and blue edge connector
  • CPI Satcom Gen IV HV Module 01026320 – macro detail of Custom wound toroidal transformer area with green power resistors and electrolytic capacitors
  • CPI Satcom Gen IV HV Module 01026320 – macro closeup of two Custom KMR1A6607SP-2 yellow HV capacitors rated 0.1uF 6000V DC, part number E97S2-01014671-2
  • CPI Satcom Gen IV HV Module 01026320 – corner view showing blue edge connector, numbered terminal block, potentiometer, and second label reading GEN IV HV MODULE ASSY 01026320
  • CPI Satcom Gen IV HV Module 01026320 – macro detail of large yellow wound HV transformer section and associated HV rectifier components
  • CPI Satcom Gen IV HV Module 01026320 – macro view of toroidal transformer CPU026324-00 Rev A with numbered wire harness connections (leads 1,4,6,7,9,10)
  • CPI Satcom Gen IV HV Module 01026320 – closeup of 8-pin military circular connector face showing red pin inserts and four-hole mounting flange
  • CPI Assy 01026320 Gen IV HV Module Satcom for High Power KPA
  • CPI Assy 01026320 Gen IV HV Module Satcom for High Power KPA
$750.00
Was: $1,500.00
Current Stock: 2

Sold Out

Description

CPI Satcom Gen IV HV Module High Power KPA Assembly 01026320 Rev 13

High voltage power supply module designed for satellite communications high power klystron power amplifier (KPA) systems. This PCB assembly generates and regulates the high voltage required to operate klystron tubes in uplink transmission applications.

Specifications & What's Included

  • Model: 01026320 Rev 13 (Gen IV HV Module)
  • Manufacturer: CPI (Communications & Power Industries)
  • Type: High Voltage Power Supply Module for Satcom KPA
  • Connector: Military-style 8-pin circular multi-pin connector with attached output harness
  • Key Components: Custom wound HV capacitors (KMR1A6607SP-2, 0.1µF, 6000V DC x2), toroidal HV transformer (CPU026324-00 Rev A), HV rectifier network
  • Form Factor: PCB board module
  • Origin: United States

Applications

This module type is used in satellite earth station transmission equipment, specifically in high power uplink amplifiers. Gen IV HV modules were deployed in commercial and government satcom ground terminals for C-band and Ku-band transmission systems. The assembly supplies the high voltage bias and operational voltage required by klystron power tubes in transponder uplinking and bent-pipe satellite relay applications.

Condition: Used
This CPI Satcom Gen IV HV Module (Assy 01026320 Rev 13) was pulled from a working environment where it was in active use. The board has been inspected and appears to be in good condition. The PCB shows typical light handling wear consistent with service use. The yellow HV capacitors, toroidal transformer, and component population all look intact with no obvious damage, burn marks, or missing parts visible in the photos. The 8-pin military circular connector and red wire harness are attached and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CPI (Communications & Power Industries)
Model:
01026320
MPN:
01026320-00
Secondary Model:
Gen IV HV Module
Revision:
Rev 13
Type:
High Voltage Power Supply Module
Application:
High Power KPA (Klystron Power Amplifier) Satcom
Form Factor:
PCB / Board Module
Connector Type:
Military-style circular multi-pin connector (8-pin)
Key Components:
Custom wound HV capacitors, toroidal HV transformer, HV rectifier network
HV Capacitors:
Custom KMR1A6607SP-2, 0.1uF ±10%, 6000V DC (x2 visible)
Transformer Part Number:
CPU026324-00, Rev A
VMEP Code:
VMEP T59
SKU:
50361
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only with attached HV output connector harness
Country/Region of Manufacture:
United States
Condition Notes:
CPI Satcom Gen IV HV Module Assy 01026320 Rev 13. Pulled from a working environment where it was in active use. Board inspected and appears in good condition. HV capacitors, transformer, and connector harness intact with no visible damage.
