Scientific Atlanta

Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30 MHz Satcom

(No reviews yet) Write a Review
SKU:
31636
MPN:
286426 Rev A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
  • Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30MHZ
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

Scientific Atlanta 286426 Rev A IF Filter Amplifier Board 30 MHz Satcom

The Scientific Atlanta 286426 Rev A is an IF (Intermediate Frequency) Filter Amplifier board designed for use in satellite communications ground equipment. The module filters and amplifies an IF signal at a 30 MHz center frequency with a 30 MHz bandwidth, providing level monitoring via front-panel alarm indicators and an ALC (Automatic Level Control) level-set adjustment. It is a card-style module that mounts into a chassis or card cage typical of Scientific Atlanta satcom rack systems.

Specifications & What's Included

  • Manufacturer: Scientific Atlanta
  • Part Number: 286426 / P286426
  • Revision: Rev A
  • Type: IF Filter Amplifier Board (card/module)
  • Center Frequency: 30 MHz

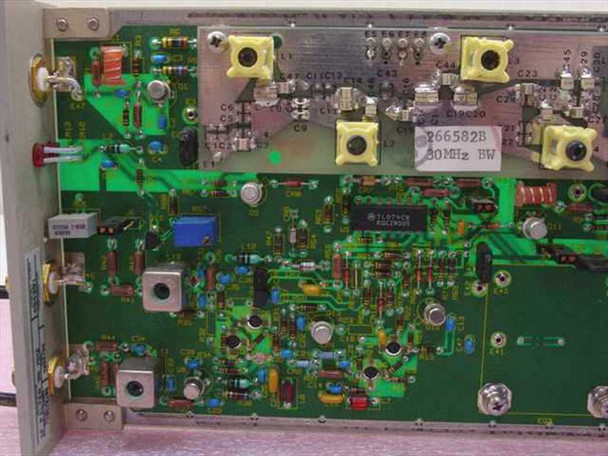

  • Bandwidth: 30 MHz BW (per PCB label P66582B 30MHz BW)

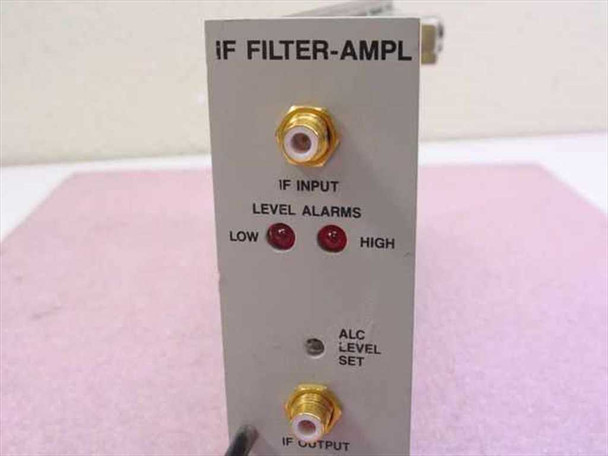

  • Front panel: IF INPUT SMA connector (gold-plated), IF OUTPUT SMA connector (gold-plated)
  • Front panel: OUTPUT MONITOR connector
  • Front panel: LOW and HIGH level alarm LED indicators
  • Front panel: ALC LEVEL SET trimmer adjustment
  • PCB sub-assembly label: Description
    Condition: Used
    This Scientific Atlanta 286426 Rev A IF Filter Amplifier Board has been inspected and is in good used condition. It was pulled from a working satcom environment where it was previously in active use. The board shows normal handling wear consistent with field service. The front panel SMA connectors and panel-mount hardware appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Scientific Atlanta
Model:
286426
MPN:
286426
Secondary Model:
P286426 Rev A
Type:
IF Filter Amplifier Board
SKU:
31636
Revision:
Rev A
Frequency:
30 MHz
Form Factor:
Card / Module
Connector Type:
SMA (gold-plated)
Interface:
IF Input, IF Output, Output Monitor
Features:
ALC Level Set, Low/High Level Alarms
Application / Use Case:
Satellite Communications (Satcom) Ground Equipment
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working satcom equipment
Country/Region of Manufacture:
United States
Condition Notes:
Scientific Atlanta 286426 Rev A IF Filter Amplifier Board, 30 MHz. Inspected and in good used condition. Pulled from a working satcom environment. Please contact us with any questions.
View AllClose

Related Products

Related Products

Scientific Atlanta 286426 30MHz IF Filter Amplifier plug-in module — front panel and PCB assembly, three-quarter view showing SMA connectors and board components Scientific Atlanta 286426 IF Filter Amplifier — front panel close-up showing IF Input SMA connector, Level Alarms LOW and HIGH LEDs, and ALC Level Set indicator
Add to Cart
Quick view

Scientific Atlanta 286426 Rev C 30MHz IF Filter Amplifier Plug-In Module 454382

Scientific Atlanta

$65.00
Was: $125.00
Scientific Atlanta 286426 Rev C 30MHz IF Filter Amplifier Plug-In Module 454382IF filter amplifier plug-in module designed for 30MHz intermediate frequency applications. Provides signal conditioning...
31630
SKU:
31630
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
Scientific Atlanta
Model:
286426
MPN:
286426
Secondary Model:
454382
SKU:
31630
Type:
IF Filter Amplifier Plug-In Module
Revision:
Rev C
Frequency:
30 MHz
Connector Type:
SMA (gold-plated)
Ports / Connectors:
IF Input, IF Output, Output Monitor (SMA)
Front Panel Indicators:
Level Alarms: Low, High LEDs; ALC Level Set
Form Factor:
Plug-In Module / Card
Date Code:
03/16/93
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; pulled from working satellite ground station equipment.
Country/Region of Manufacture:
United States
Condition Notes:
Scientific Atlanta 286426 30MHz IF Filter Amplifier module inspected and in good condition. Pulled from a working environment where it was in use and functional. SMA connectors clean, no obvious damage.
Scientific Atlanta 362272 30MHz IF Filter Amplifier plug-in module — three-quarter front/side view showing front panel and internal PCB with yellow toroids and SMA connectors Scientific Atlanta 362272 IF Filter Amplifier front panel — IF INPUT SMA port, LEVEL LOW/HIGH and ALARMS LEDs, ALC ON/MANUAL switch, MAN GAIN ADJ pot, IF OUTPUT SMA port, and 30MHZ B.W. label
Add to Cart
Quick view

Scientific Atlanta 362272 30MHz IF Filter Amplifier Plug-In Module 30MHZ BW

Scientific Atlanta

$65.00
Was: $125.00
Scientific Atlanta 362272 30MHz IF Filter Amplifier Plug-In Module 30MHZ BWIntermediate frequency (IF) filter and amplifier module designed for telecom and RF signal processing equipment. Provides IF...
31633
SKU:
31633
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Scientific Atlanta
Model:
362272
MPN:
362272
Secondary Model:
PN336786E
SKU:
31633
Type:
IF Filter / Amplifier Plug-In Module
Frequency:
30 MHz
Bandwidth:
30 MHz
Function:
IF Filtering and Amplification with ALC
ALC Mode:
ALC On / Manual selectable
Gain Control:
Manual Gain Adjust (MAN GAIN ADJ)
Indicators:
Level Low/High LEDs, Alarms LED
Connector Type:
SMA (gold-plated)
Ports:
IF Input, IF Output, Output Monitor
Form Factor:
Plug-In Module / Card
Board Part Number:
PN336786E
Date Code:
CiR 28/88
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Module only; no chassis or additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Scientific Atlanta 362272 30MHz IF Filter/Amplifier Plug-In Module. Inspected and in good condition. Front panel clean; SMA connectors show normal wear; PCB appears intact. Please view photos and contact us with questions.

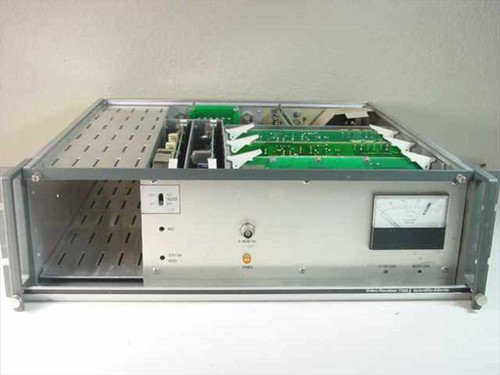

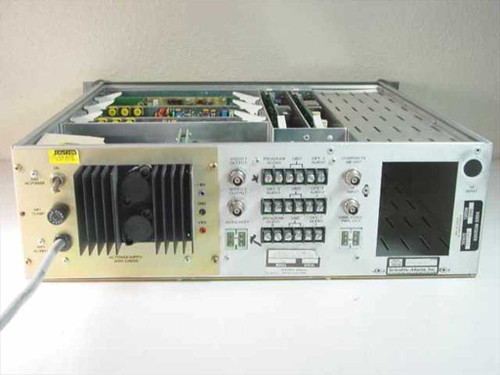

Scientific Atlanta 7500 CFG Satcom Video Receiver – front panel three-quarter view showing analog meter, power indicator, and installed circuit boards with top cover removed Scientific Atlanta 7500 CFG Video Receiver – rear panel showing AC power supply assembly 229000 with heatsink, audio screw terminal blocks, BNC video outputs, and Scientific-Atlanta branding label
