Description
Scientific Atlanta 262200 IF Filter Amplifier Module Assy 262204 High Low Alarms
Intermediate frequency (IF) filter amplifier module with integrated high/low level alarm functions. Designed for signal conditioning and monitoring in telecom and broadband distribution systems.
Specifications & What's Included
- Model: 262200 / Assembly: 262204
- Type: IF Filter Amplifier Module (plug-in card form factor)
- Connectors: SMA/TNC-style coax (IF Input, IF Output, Output Monitor)
- Gain Control: Automatic Level Control (ALC) and manual gain adjustment
- Alarms: High/Low level detection
- Manufactured: United States
- Module only; no chassis included
Applications
IF amplifier modules were standard in cable headend equipment, RF distribution systems, and telecom signal processing chains. This unit handles intermediate frequency signals in broadband and CATV systems where gain control and signal threshold monitoring are required. Typically installed in Scientific Atlanta modular chassis or compatible 19-inch rack systems.
Condition: Used

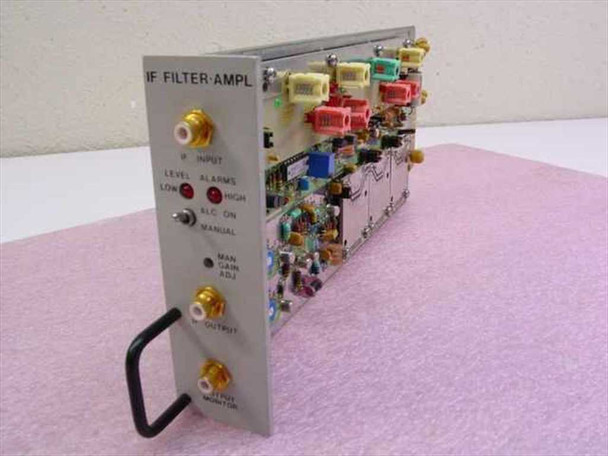

This Scientific Atlanta 262200 IF Filter Amplifier module (Assy 262204) has been inspected and is in good used condition. The front panel, connectors, and controls all appear intact with no obvious damage. The SMA-style IF Input, IF Output, and Output Monitor connectors show normal contact wear consistent with prior use. The PCB and shielded filter sections are clean and intact. Some light surface wear and minor scuffing on the module faceplate are consistent with normal service life. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta 262200 IF Filter Amplifier module (Assy 262204) has been inspected and is in good used condition. The front panel, connectors, and controls all appear intact with no obvious damage. The SMA-style IF Input, IF Output, and Output Monitor connectors show normal contact wear consistent with prior use. The PCB and shielded filter sections are clean and intact. Some light surface wear and minor scuffing on the module faceplate are consistent with normal service life. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
262200 |
MPN: |
262200 |
Secondary Model: |
262204 |
Type: |
IF Filter Amplifier Module |
SKU: |
31643 |
Assembly Number: |
262204 |
Form Factor: |
Card/Module (plug-in card) |
Alarm Type: |
High/Low Level Alarms |
Gain Control: |
ALC (Automatic Level Control) and Manual Gain Adjust |
Signal Type: |
IF (Intermediate Frequency) |
Connectors: |
SMA/TNC-style coax — IF Input, IF Output, Output Monitor |
Condition: |
Used – Inspected |
Seller Notes: |
Module only; no chassis included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Scientific Atlanta 262200 IF Filter Amplifier, Assy 262204 — inspected and in good used condition. Front panel connectors and controls intact. PCB and filter sections clean. Normal surface wear on faceplate. |
