Description

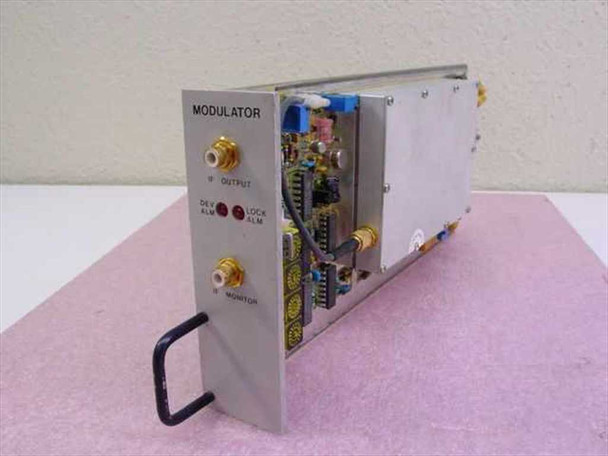

Scientific Atlanta 7550 Wideband Modulator 262224 PN262224H Plug-In Module
Wideband IF modulator plug-in card for Scientific Atlanta 7550 series equipment. This module handles IF signal modulation and includes front panel alarm indicators for device and lock status monitoring.
Specifications & What's Included
- Model: Scientific Atlanta 7550
- Part Number: 262224 / PN262224H
- Type: Wideband IF Modulator Plug-In Module
- Form Factor: Plug-In Module / Card
- Connectors: SMA (IF Output, IF Monitor)
- Front Panel Indicators: DEV ALM, LOCK ALM (LED)
- Manufactured: United States, PCB date code 1-23-84
- Includes: Module only
Applications
Wideband modulators are used in cable television, satellite, and broadband distribution systems for upconverting intermediate frequency signals to RF. The Scientific Atlanta 7550 series was deployed in legacy telecom and CATV headend equipment through the 1980s and 1990s. This module fits directly into compatible 7550 chassis and requires proper IF input source and RF output termination.
Condition: Used
This Scientific Atlanta 7550 Wideband Modulator plug-in module (PN262224H) has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The front panel SMA connectors appear clean, and the LED alarm indicators show no physical damage. The internal PCB shows normal aging consistent with the unit's era (PCB dated 1-23-84) but no obvious damage or missing components were noted. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta 7550 Wideband Modulator plug-in module (PN262224H) has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The front panel SMA connectors appear clean, and the LED alarm indicators show no physical damage. The internal PCB shows normal aging consistent with the unit's era (PCB dated 1-23-84) but no obvious damage or missing components were noted. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
7550 |
MPN: |
262224 |
Secondary Model: |
PN262224H |
Type: |
Wideband IF Modulator Plug-In Module |
SKU: |
31646 |
Form Factor: |
Plug-In Module / Card |
Connectors: |
SMA (IF Output, IF Monitor) |
Front Panel Indicators: |
DEV ALM, LOCK ALM (LED) |
Front Panel Ports: |
IF Output (SMA), IF Monitor (SMA) |
PCB Date Code: |
1-23-84 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Module only; pulled from a working environment. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Scientific Atlanta 7550 Wideband Modulator (PN262224H) pulled from a working environment where it was in use and functional. Inspected and in good used condition. SMA connectors and PCB appear intact. |
