CKD

CKD LCG-1230S5D Linear Slide Cylinder Double Acting 12mm Bore 30mm Stroke

(No reviews yet) Write a Review
SKU:
48162
MPN:
LCG-1230S5D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

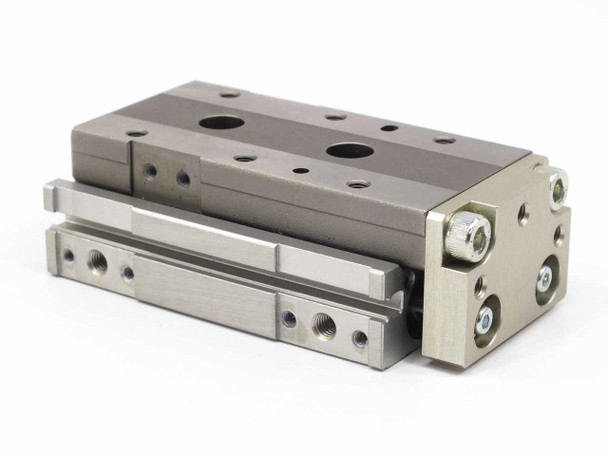

  • CKD LCG-1230S5D linear slide cylinder — three-quarter front view showing slide table and body
  • CKD LCG-1230S5D linear slide cylinder — top and side view with model label visible on body
  • CKD LCG-1230S5D label close-up showing model number and CKD Japan branding

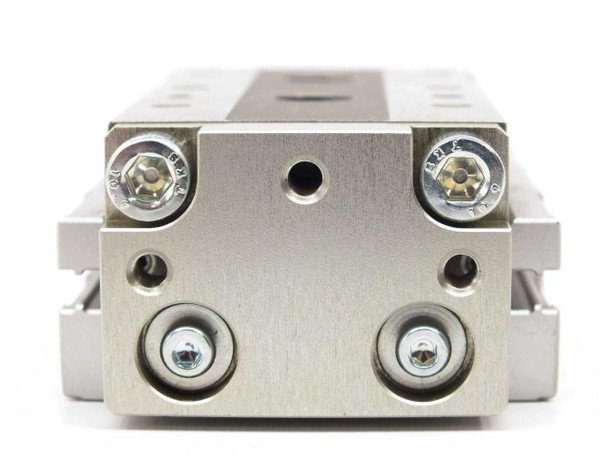

  • CKD LCG-1230S5D — end view showing dual port fittings and mounting holes

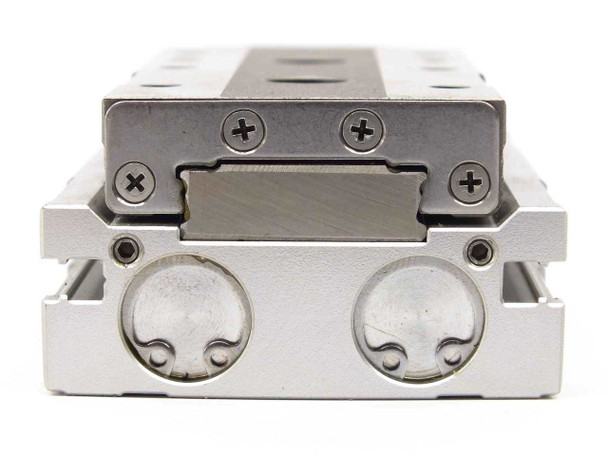

  • CKD LCG-1230S5D — opposite end view showing slide table mounting surface and fasteners

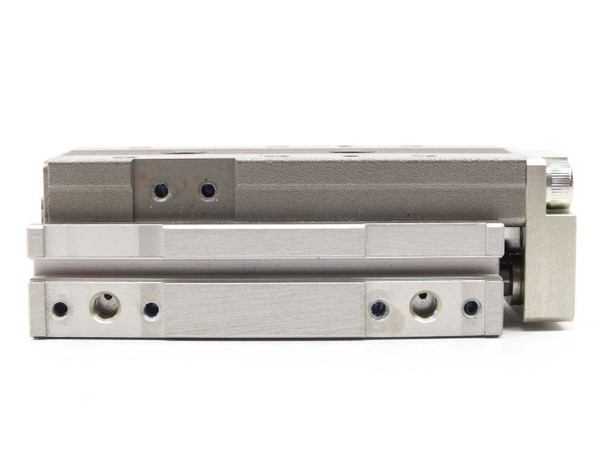

  • CKD LCG-1230S5D — side profile view showing full cylinder length and guide rail

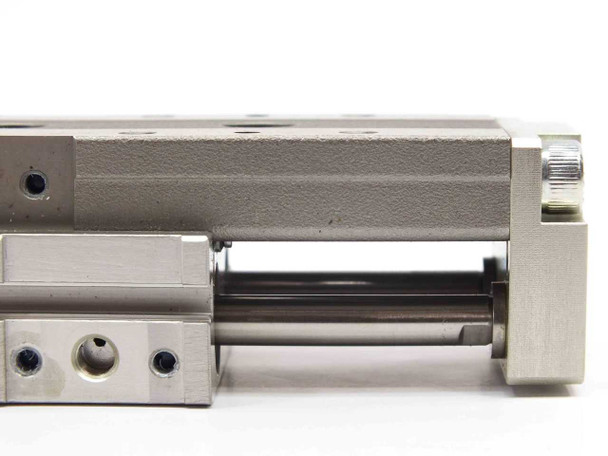

  • CKD LCG-1230S5D — opposite side profile showing rod end and pneumatic port fitting
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

CKD LCG-1230S5D Linear Slide Cylinder Double Acting 12mm Bore 30mm Stroke

Double acting linear slide cylinder with integrated ball bearing guide rails. Compact unit combining pneumatic actuation with precision linear motion in a single assembly.

Specifications & What's Included

  • Model: LCG-1230S5D
  • Type: Double Acting Linear Slide Cylinder
  • Bore: 12 mm
  • Stroke: 30 mm
  • Guide: Linear Ball Bearing Slide
  • Rod: Single Rod
  • Materials: Aluminum / Steel
  • Origin: Japan
  • Cylinder only; no accessories included

Applications

Linear slide cylinders are used in automation and industrial equipment where controlled linear motion and clamping are required. These units integrate pneumatic cylinders with precision linear bearings for positioning applications in manufacturing machinery, assembly equipment, and process automation. The compact form factor and ball bearing guidance make them suitable for repetitive motion tasks demanding smooth operation and accuracy over extended service life.

Condition: Used
This CKD LCG-1230S5D Linear Slide Cylinder has been inspected and appears to be in good used condition. The body, slide table, and guide rails show normal wear consistent with prior industrial use, with no cracks, deformation, or damage visible. Port fittings and mounting surfaces are intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CKD
Model:
LCG-1230S5D
MPN:
LCG-1230S5D
Type:
Double Acting Linear Slide Cylinder
SKU:
48162
Bore Size:
12 mm
Stroke Length:
30 mm
Actuation Type:
Double Acting
Rod Configuration:
Single Rod
Guide Type:
Linear Ball Bearing Slide
Body Material:
Aluminum / Steel
Country/Region of Manufacture:
Japan
Form Factor:
Compact Slide Unit
Condition:
Used – Inspected
Seller Notes:
Cylinder only; no additional accessories observed.
Condition Notes:
CKD LCG-1230S5D Linear Slide Cylinder inspected and in good used condition. Body, slide table, and guide rails show normal wear; no damage observed. Port fittings and mounting surfaces intact.
View AllClose

Related Products

Related Products

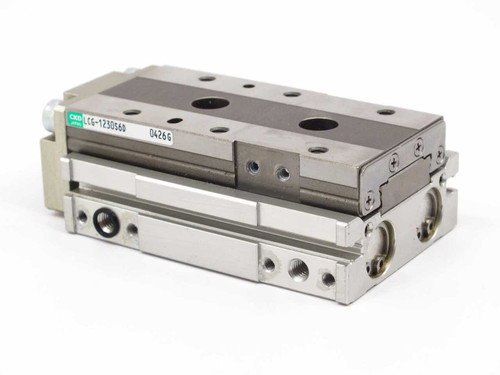

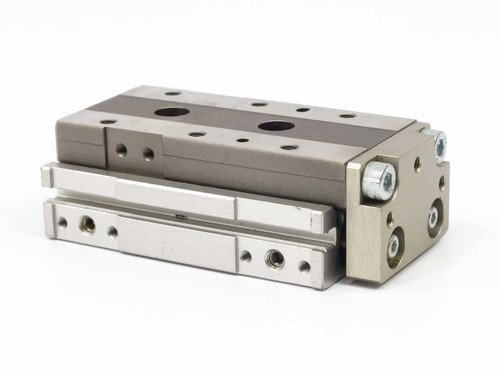

CKD LCG-1230S6D linear slide cylinder — three-quarter front view showing slide body and guide rail CKD LCG-1230S6D linear slide cylinder — top and side view with green CKD label and date code 0426G visible
