The Koganei CS-TBDA16x30 is a compact double acting pneumatic linear cylinder with a twin bore configuration, featuring a 16 mm bore diameter and 30 mm stroke. It uses compressed air to extend and retract the piston rod in both directions, making it a push-pull actuator suited for precise, repeatable linear motion in automated equipment. The body is machined aluminum and is manufactured in Japan by Koganei Corporation.

Specifications & What's Included

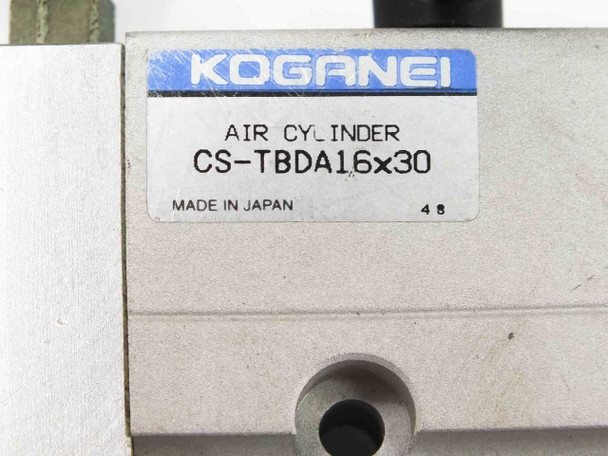

• Model: CS-TBDA16x30
• Manufacturer: Koganei Corporation (Made in Japan)
• Cylinder Type: Double Acting (air-driven extend and retract)
• Bore Configuration: Twin bore
• Bore Diameter: 16 mm
• Stroke Length: 30 mm
• Body Material: Aluminum
• Port/Fitting Type: Push-in pneumatic fittings (blue and black, visible in photos)
• Includes: Attached push-in fittings and pneumatic tubing as shown

Applications

Koganei's CS-TBDA series double acting cylinders are used in industrial automation and precision machinery applications where compact, guided linear motion is required. The twin bore design provides inherent anti-rotation and lateral stability without an external guide, which makes this style of cylinder common in semiconductor handling equipment, electronic assembly automation, pick-and-place systems, and light manufacturing fixtures. Koganei Corporation is a Japanese manufacturer known for compact pneumatic components used extensively in Asian and global semiconductor fab and automation environments. Double acting cylinders of this bore size are standard actuators in tight-space automation cells where a single-axis push-pull motion needs to be fast, repeatable, and low-maintenance.
