CKD

CKD LCG-1230S6D Linear Slide Cylinder Double Acting Single Rod 12mm 30mm

(No reviews yet) Write a Review
SKU:
48163
MPN:
LCG-1230S6D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

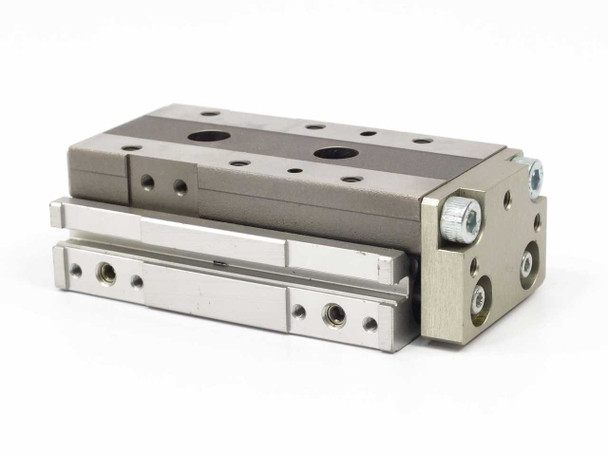

  • CKD LCG-1230S6D linear slide cylinder — three-quarter front view showing slide body and guide rail
  • CKD LCG-1230S6D linear slide cylinder — top and side view with green CKD label and date code 0426G visible
  • CKD LCG-1230S6D label close-up showing model number, CKD Japan branding, and date code 0426G

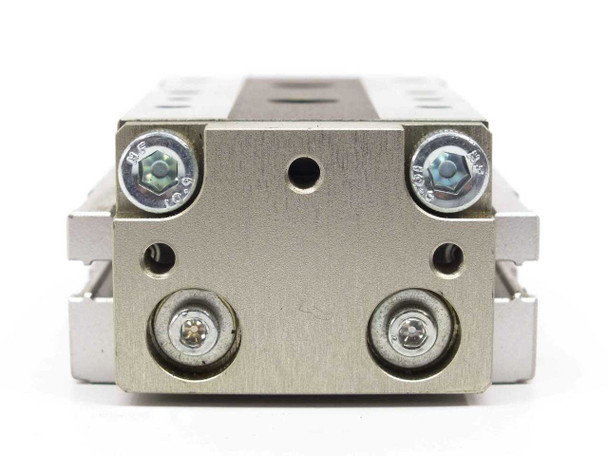

  • CKD LCG-1230S6D — end view showing two pneumatic port fittings and mounting holes
  • CKD LCG-1230S6D — opposite end view showing cylinder body underside and port fittings

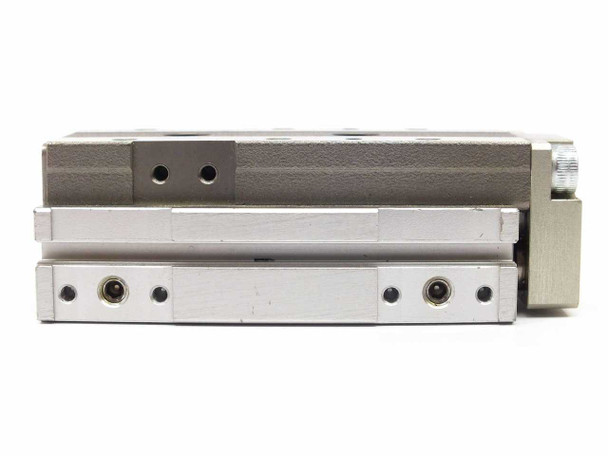

  • CKD LCG-1230S6D — side profile view showing overall height and guide rail construction

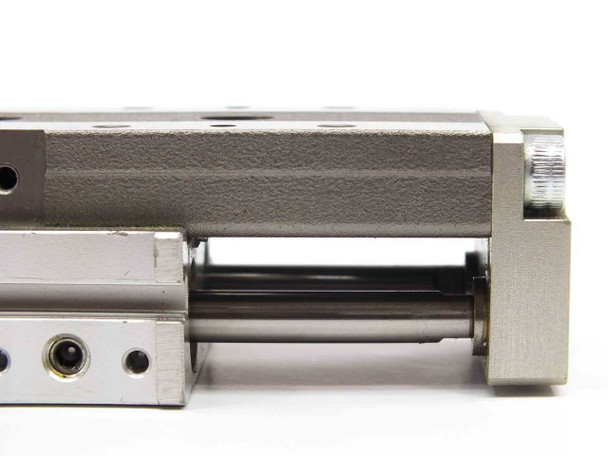

  • CKD LCG-1230S6D — close-up side view with single rod extended, showing rod and guide detail
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

CKD LCG-1230S6D Linear Slide Cylinder Double Acting Single Rod 12mm 30mm

Pneumatic linear slide cylinder from CKD's LCG series. Double acting design with single rod, 12mm bore, and 30mm stroke length. Designed for controlled linear motion in industrial automation systems.

Specifications & What's Included

  • Brand: CKD
  • Model: LCG-1230S6D
  • Type: Linear Slide Cylinder
  • Action: Double Acting
  • Rod Type: Single Rod
  • Bore: 12mm | Stroke: 30mm
  • Actuator: Pneumatic
  • Origin: Japan
  • Unit only; no accessories included

Applications

Linear slide cylinders are used in manufacturing and assembly equipment for positioning, clamping, and material handling tasks. The LCG series is common in automotive production lines, packaging machinery, and general factory automation. Double acting cylinders provide powered extension and retraction, making them suitable for repetitive industrial processes requiring controlled linear motion.

Condition: Used
This CKD LCG-1230S6D Linear Slide Cylinder has been inspected and is in good condition. The unit shows normal wear consistent with prior industrial use. The slide body, guide rail, and visible hardware appear intact with no cracks or significant damage noted. The pneumatic port fittings are present and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CKD
Model:
LCG-1230S6D
MPN:
LCG-1230S6D
Type:
Linear Slide Cylinder
SKU:
48163
Action Type:
Double Acting
Rod Type:
Single Rod
Bore Size:
12 mm
Stroke Length:
30 mm
Actuator Type:
Pneumatic
Series:
LCG
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no accessories included.
Condition Notes:
CKD LCG-1230S6D Linear Slide Cylinder has been inspected and is in good used condition. Normal wear from prior industrial use. Slide body, guide rail, and port fittings intact. Please contact us with any questions.
