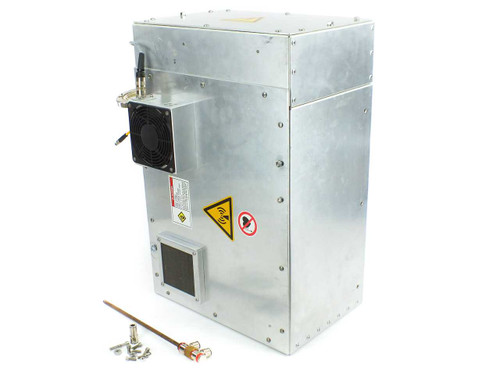

Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching
Aurion
$2,000.00Was: $4,000.00Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching Network RF impedance matching network designed for 30 kW sputtering and PVD deposition systems. Matches source impedance to load impedance for efficient power transfer in plasma...52215- SKU:
- 52215
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 75.00 LBS
- Brand:
- Aurion Anlagentechnik
- Model:
- B-MBT-48
- MPN:
- B-MBT-48
- Type:
- RF Impedance Matching Network (Matchbox)
- SKU:
- 52215
- Product Family:
- Matchbox Prodik T300
- Order Number:
- 301253
- Customer Order Ref:
- 61109881
- Power Rating:
- 30 kW
- Application:
- RF Sputtering / PVD Deposition
- Input Voltage (X3):
- Up to 277V
- Control Voltage (X4):
- 24V
- Interface / Control:
- RS-232 (X5), P-Bus (X7)
- Cooling:
- Water-cooled (SW3.14 Flow & Return fittings)

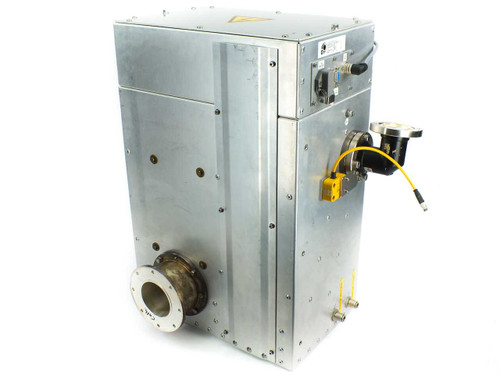

- RF Output Connector:
- Large coaxial flange (cathode side)
- Tune Capacitor:
- Comet CVHI-2500AW/15-ADUB, 200-2500pF, 15/9kV
- Load Capacitor:
- Comet CVBA-500BC/7-BEA-L, 5-500pF, 7/4.2kV
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Standalone Enclosure / Benchtop
- Dimensions:
- 23" x 20" x 13"
- Seller Notes:
- Includes mounting hardware, copper probe rod, and water cooling push-fit fittings.
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- This Aurion B-MBT-48 Matchbox Prodik T300 30kW RF impedance matching network has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional operation.
$2,000.00Was: $4,000.00 -
Siemens HMX3B600 600A 600V 3-Pole Molded Case Circuit Breaker w/ Enclosure Knob
Siemens
$1,556.00Was: $5,000.00Siemens HMX3B600 600A 600V 3-Pole Molded Case Circuit Breaker w/ Enclosure Knob From the manufacturer: HMX3B600, Siemens, VL Series, Type HMX, 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, 40°C, bolt-on, complete with non-interchangeable...52214- SKU:
- 52214
- Weight:
- 42.00 LBS
$1,556.00Was: $5,000.00 -

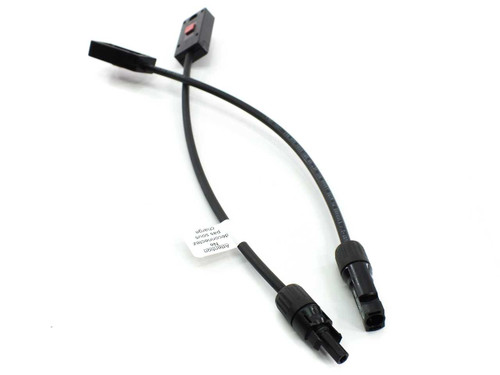

Onamba PVU-B48-022 MC4 Solar Panel J-Box Cable 14AWG Pre-Soldered Male Female
Onamba
$5.50Was: $25.00Onamba PVU-B48-022 MC4 Solar Panel J-Box Cable 14AWG Pre-Soldered Male Female Pre-soldered MC4 junction box cable assembly for solar panel wiring. Connects male and female MC4 connectors with integrated J-box terminals and includes snap-in plastic covers...52213- SKU:
- 52213
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Onamba
- Model:
- PVU-B48-022
- MPN:
- PVU-B48-022
- Type:
- Pre-Soldered MC4 Solar Panel Junction Box Cable
- SKU:
- 52213
- Seller Notes:
- Includes 1x M/F cable pair with J-boxes and 2 snap-in plastic junction box covers
- Country/Region of Manufacture:
- Japan
- Wire Gauge (AWG):
- 14 AWG
- Cable Length:
- 11 inches (approx. 279 mm)

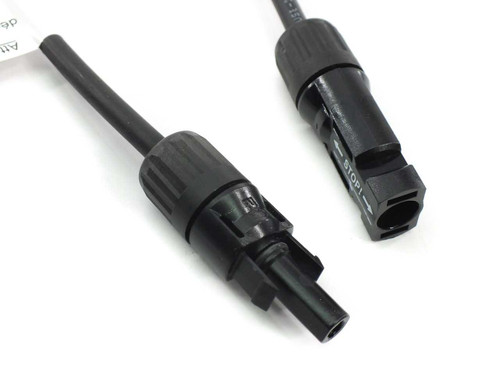

- Connector Type:
- MC4 Male / Female
- Rated Voltage (UL):
- DC 600V
- Rated Voltage (Other):
- DC 1000V
- Max Rated Current (Without Diode):
- 10A (Other) / 20A (UL) @ 75°C
- Max Rated Current (With Diode):
- 3.5A (Other) / 1.5A (UL) @ 75°C
- Diode:
- None — area provided to add your own
- Wire Size Range:
- 2.0–2.5 mm²
- Cable O.D. Range:
- 6.2–6.6 mm
- Protection Degree:
- IP65 / IP67 (with potting)
- Flame Class:
- 5VA
- Insulation Material:
- PPE/PPO
- Contact Material:
- Brass (tin plated)
- Wire Type:
- PV Wire 14AWG 90C Wet or Dry 600V
- Conformity Standard:
- UL1703 — Certificate No. E212185
- Application:
- Solar Panel Junction Box Wiring
- Condition:
- New – Open Box
- Condition Notes:
- Onamba PVU-B48-022 MC4 solar J-Box cables are new, unused, open box. Includes M/F pair with junction boxes and 2 snap-in covers. Not installed or put into service. Minor handling marks possible.
$5.50Was: $25.00 -

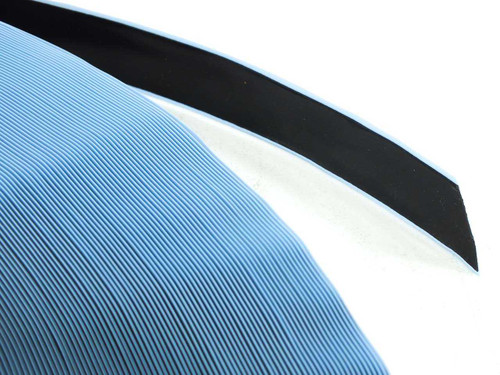

Quanex Solargain 614-7528-P93 PV Butyl Edge Tape Primed 19mm x 0.71mm 155m Roll
Quanex
$23.40Was: $60.00Quanex Solargain 614-7528-P93 PV Butyl Edge Tape Primed 19mm x 0.71mm 155m Roll Butyl rubber edge sealant tape designed for photovoltaic module perimeter sealing. This polyisobutylene (PIB) tape with integrated desiccant prevents moisture ingress and...52212- SKU:
- 52212
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Quanex
- Product Line:
- Solargain
- Model:
- Solargain Edge Tape
- MPN:
- 614-7528-P93
- Secondary MPN:
- 504225
- Set Code:
- LP02
- SKU:
- 52212
- Type:
- Butyl Edge Sealant Tape
- Material:
- Polyisobutylene (PIB) Butyl Rubber
- Width:
- 19mm (0.748 in)
- Thickness:
- 0.71mm
- Length per Roll:
- 155m (508 ft) approx — see label note
- Label Length:
- 5610 ft / 1710 m (full box; 1 roll listed)
- Surface Treatment:
- Primed
- Integrated Desiccant:
- Yes
- Voltage Rating:
- 1500V
- Standards Compliance:
- UL 1703 Section 42A
- Application:
- PV Module Edge Seal
- Compatible Module Types 1:
- Thin Film (CdTe, CIGS, Perovskite)
- Compatible Module Types 2:
- Crystalline Silicon (c-Si) PV Modules
- Compatible Module Types 3:
- BIPV, Perovskite/c-Si Tandem, Smart Glass
- Country/Region of Manufacture:
- United States
- Manufacture Date Code:
- 20160524
- Expiration Date:
- 2016-11-23
- Quantity:
- 1 Roll
- Condition:
- Open Box / New Old Stock — see condition notes
- Condition Notes:
- Quanex Solargain 614-7528-P93 butyl PV edge tape, new/unused but open box and past printed expiration date (mfg 2016-05-24, exp 2016-11-23). Roll appears intact. Buyer should verify suitability. 1 roll from original box of 11.
$23.40Was: $60.00 -
Quanex Solargain Edge Tape 614-3922-893 PV Butyl 10mm x 182m Roll
Quanex
$21.00Was: $60.00Quanex Solargain Edge Tape 614-3922-893 PV Butyl 10mm x 182m Roll Polyisobutylene (PIB) butyl edge seal tape for photovoltaic module perimeters. Provides moisture barrier and electrical isolation with integrated desiccant. Specifications & What's...52211- SKU:
- 52211
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Quanex
- Model:
- Solargain Edge Tape
- MPN:
- 614-3922-893
- Secondary Model:
- 504221
- SKU:
- 52211
- Type:
- PV Butyl Edge Seal Tape
- Material:
- Polyisobutylene (PIB) Butyl Rubber
- Features:
- Integrated desiccant, electrical isolation
- Width:
- 10mm
- Thickness:
- 0.56mm
- Roll Length:
- 182m (597 ft)
- Color:
- Black
- Voltage Compatibility:
- Up to 1500V
- Certifications:
- UL 1703 Section 42A
- Set Code:
- SET LP02
- Quantity:
- 1 Roll (sold individually)
- Country/Region of Manufacture:
- United States
- Compatible With 1:
- Thin film PV modules (CdTe, CIGS, Perovskite)
- Compatible With 2:
- Crystalline silicon PV modules
- Compatible With 3:
- Building Integrated Photovoltaic (BIPV) IG units
- Compatible With 4:
- Perovskite/c-Si tandem cell PV modules
- Compatible With 5:
- Smart Tinting / Dynamic Glass Systems
- Application:
- Edge sealing for photovoltaic modules
- Seller Notes:
- Single roll removed from vacuum-sealed mylar bag; original box of 19 rolls.
- Condition Notes:
- New, unused Quanex Solargain Edge Tape 614-3922-893 PV butyl roll. Rolls are vacuum-sealed in mylar bags within original box; removed at shipment. Unused and in new condition.
$21.00Was: $60.00 -
Trumpf Huttinger 0372600 MOP 2 Channel Master Oscillator 13.56MHz RF Deposition
Trumpf Huttinger
$1,774.00Was: $5,500.00Trumpf Huttinger 0372600 MOP 2 Channel Master Oscillator 13.56MHz RF Deposition 13.56 MHz Overall Dimensions: 19" x 15" x 3.5" -- 10 LBS Condition: UsedThis used oscillator has been inspected and it appears to be in good condition. It powers on...52209- SKU:
- 52209
- Weight:
- 15.00 LBS
$1,774.00Was: $5,500.00 -
VAT X-VAT100-40496 56" Long Valve Port for High Vacuum Chamber - SS Air Actuated
VAT
$1,034.00Was: $4,500.00VAT Valve Actuators X-VAT100-40496 Mounted to a Stainless Steel Valve Cover 3X VAT Valve Actuators Model: X-VAT100-40496 Overall Dimensions: 56" Long x 17" Tall x 4" Wide -- 131 LBS Condition: UsedThese used actuators has been inspected and it...52207- SKU:
- 52207
- Weight:
- 151.00 LBS
$1,034.00Was: $4,500.00 -
Deltatherm WT-Gruppe HYD11-100 RKV 11.2 Industrial Heating Cooling Unit 480V 3Ph
Deltatherm
$15,240.00Was: $45,000.00Deltatherm WT-Gruppe HYD11-100 RKV 11.2 Industrial Heating Cooling Unit 480V 3Ph Floor-standing industrial heating and cooling unit manufactured in Germany (2012–2013). Delivers 30 kW cooling capacity and 7.78–9 kW heating capacity with precision...52198- SKU:
- 52198
- Availability:
- This item requires freight shipping. Please contact us for a shipping quote and to arrange delivery or local pickup.
- Weight:
- 9,999.00 LBS
- Brand:
- Deltatherm
- Model:
- WT-Gruppe
- Secondary Model:
- HYD11-100
- MPN:
- HYD11-100
- SKU:
- 52198
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes HYD11-100 cabinet, RKV 11.2 chiller, TM-W90-9/15-40 temp controller, 2 manuals
- Country of Manufacture:
- Germany
- Form Factor:
- Floor Standing / Skid-Mounted
- Year of Manufacture:
- 2012–2013
- Machine Number:
- 14-23236
- Power Requirements:
- 480V, 3-Phase, 60Hz
- Cooling Capacity:
- 30 kW (RKV 11.2); 30.01 kW (HYD11-100 label)
- Heating Capacity:
- 7.78 kW (HYD11-100); 9 kW (TM-W90)
- Refrigerant:
- R407C, 25 kg charge
- Compressor Power:
- 22 kW, 32 Amps
- Temperature Range:
- 2.5°C to +25°C (RKV 11.2)
- Condenser Type:
- Air-cooled axial, 3 x 500 mm fans
- Supply Air Flow:
- 2100 m³/h at 520 Pa total pressure
- Supply Fan Speed:
- 2611 rpm nominal / 3560 rpm max
- Supply Fan Motor Power:
- 1.10 kW
- Filter Class:
- F5 polypropylene, 592 x 592 mm, max 250 Pa
- HYD11-100 Power (Cabinet):
- 400V / 2.37A nominal
- RKV 11.2 Power:
- 480V 3-Phase 60Hz, 45A (63A protection circuit)
- TM-W90 Power:
- 480V 3-Phase 60Hz, 10 kW (16A)
- Cooling Water Pump:
- 40 L/min, 3 Bar, 1 kW (TM-W90)
- Cooling Water Pump Model:
- MXH 803/60 A-S
- WT-Gruppe Connected Load:
- 6.5 kW at 480V 60Hz, 12.61A
- Humidifier:
- Walter Meier CP 3 Pro 5
- Air Intake Fan:
- Gebhardt RLM E6-2528-2W-11-C
- Drive:
- Danfoss VLT HVAC Drive
- Droplet Separator:
- ROX PPTV Droplet Separator
- Shipping Method:
- Freight required — contact seller for quote
- Application:
- Industrial HVAC, precision temperature and humidity control
- Compatible With:
- Industrial cleanroom, manufacturing, process cooling environments
- Condition Notes:
- This Deltatherm WT-Gruppe industrial heating and cooling system — comprising the HYD11-100 heating/cooling/humidifying cabinet, the RKV 11.2 cooling water heat exchanger/chiller, and the TM-W90-9/15-40 temperature controller — was extracted from a
$15,240.00Was: $45,000.00
