Description

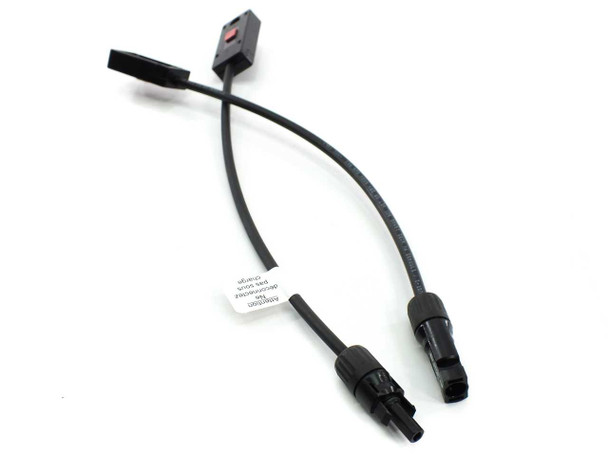

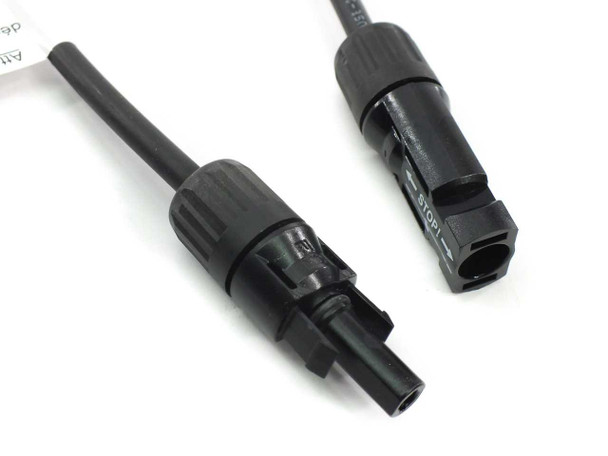

Onamba PVU-B48-022 MC4 Solar Panel J-Box Cable 14AWG Pre-Soldered Male Female
Pre-soldered MC4 junction box cable assembly for solar panel wiring. Connects male and female MC4 connectors with integrated J-box terminals and includes snap-in plastic covers.
Specifications & What's Included
- One male/female MC4 cable pair with J-boxes and 2 snap-in covers
- 14 AWG PV wire, 11 inches (279 mm) length
- Rated DC 600V (UL) / DC 1000V (Other)
- Max current 20A UL @ 75°C without diode; 1.5A UL @ 75°C with diode
- Brass tin-plated contacts; PPE/PPO insulation
- IP65/IP67 protection; UL1703 certified (E212185)
- Manufactured in Japan
Applications
MC4 junction box cables are standard interconnect components in residential and commercial photovoltaic systems. These assemblies terminate at solar panel junction boxes and link to combiner boxes or inverter DC inputs. Compatible with standard MC4-equipped solar arrays and charge controllers using 14 AWG wiring configurations.
Condition: New
These Onamba PVU-B48-022 pre-soldered 14AWG MC4 solar panel junction box cables are new and unused, sold as open box. Each set includes one male/female cable pair with junction boxes and two snap-in plastic covers. The cables have not been installed or put into service. Minor cosmetic marks from handling or storage may be present, but the cables and connectors are new and unused. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
These Onamba PVU-B48-022 pre-soldered 14AWG MC4 solar panel junction box cables are new and unused, sold as open box. Each set includes one male/female cable pair with junction boxes and two snap-in plastic covers. The cables have not been installed or put into service. Minor cosmetic marks from handling or storage may be present, but the cables and connectors are new and unused. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Onamba |
Model: |
PVU-B48-022 |
MPN: |
PVU-B48-022 |
Type: |
Pre-Soldered MC4 Solar Panel Junction Box Cable |
SKU: |
52213 |
Seller Notes: |
Includes 1x M/F cable pair with J-boxes and 2 snap-in plastic junction box covers |
Country/Region of Manufacture: |
Japan |
Wire Gauge (AWG): |
14 AWG |
Cable Length: |
11 inches (approx. 279 mm) |
Connector Type: |
MC4 Male / Female |
Rated Voltage (UL): |
DC 600V |
Rated Voltage (Other): |
DC 1000V |
Max Rated Current (Without Diode): |
10A (Other) / 20A (UL) @ 75°C |
Max Rated Current (With Diode): |
3.5A (Other) / 1.5A (UL) @ 75°C |
Diode: |
None — area provided to add your own |
Wire Size Range: |
2.0–2.5 mm² |
Cable O.D. Range: |
6.2–6.6 mm |
Protection Degree: |
IP65 / IP67 (with potting) |
Flame Class: |
5VA |
Insulation Material: |
PPE/PPO |
Contact Material: |
Brass (tin plated) |
Wire Type: |
PV Wire 14AWG 90C Wet or Dry 600V |
Conformity Standard: |
UL1703 — Certificate No. E212185 |
Application: |
Solar Panel Junction Box Wiring |
Condition: |
New – Open Box |
Condition Notes: |
Onamba PVU-B48-022 MC4 solar J-Box cables are new, unused, open box. Includes M/F pair with junction boxes and 2 snap-in covers. Not installed or put into service. Minor handling marks possible. |
