Onamba PVU-B48-022 MC4 Solar Junction Box 14AWG 600V Male Female Pairs Qty 60

(No reviews yet) Write a Review
SKU:
52050
MPN:
PVU-B48-022
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout
  • Onamba PVU-B48-022 MC4 solar junction box pairs – full open carton showing 60 sets bundled together

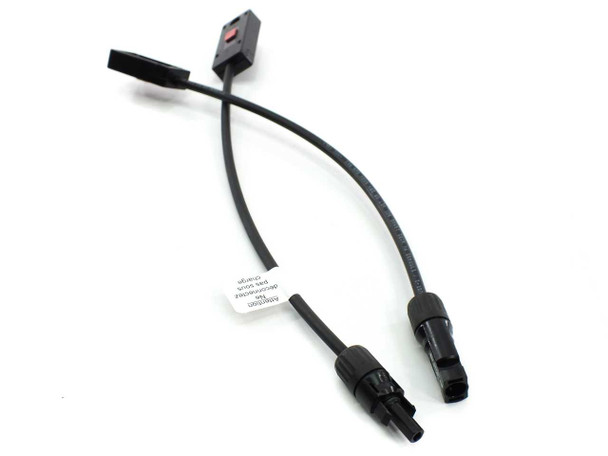

  • Onamba PVU-B48-022 MC4 junction box pair – male and female J-boxes with 14AWG PV cable leads on white background

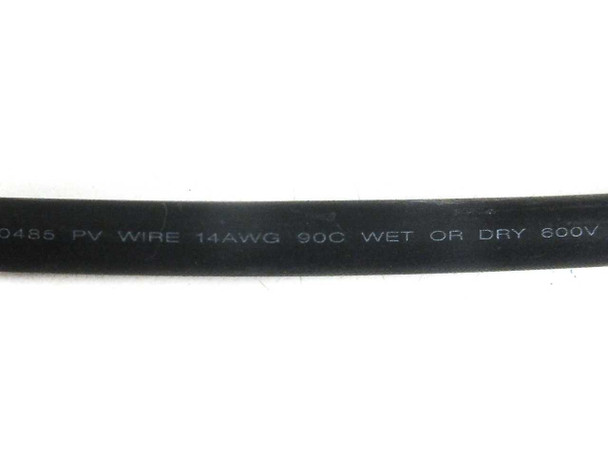

  • 14AWG PV wire cable marking – label reads PV WIRE 14AWG 90C WET OR DRY 600V
  • Onamba MC4 junction box connectors close-up – male plug and female socket connector ends shown
  • Onamba PVU-B48-022 junction boxes open – internal terminal and contact hardware visible on multiple units
  • Onamba MC4 solar J-box pairs – group of units showing red push-button release tabs and open contact chambers
  • Onamba PVU-B48-022 MC4 junction box – single male unit open showing brass contact terminal with red release tab
  • Onamba PVU-B48-022 MC4 junction box pairs – second carton open showing units wrapped in bubble pack
  • Onamba PVU-B48-022 original shipping carton label – shows part number PVU-B48-022, qty 60, date 1/31/2013, assembled in Mexico, rated voltage and current data
$187.00
Was: $375.00
Current Stock: 29

Sold Out

Description

Onamba PVU-B48-022 MC4 Solar Junction Box 14AWG 600V Male Female Pairs Qty 60

The Onamba PVU-B48-022 is a photovoltaic interconnecting junction box (J-box) designed for thin-film solar panel applications. Each set consists of one male and one female MC4-style junction box with pre-attached 14AWG PV wire cable leads, providing the positive and negative interconnection points needed to wire solar panels into a PV array. This listing is for a full carton of 60 male/female pairs, new old stock from the original manufacturer carton.

Specifications & What's Included

  • Part Number: PVU-B48-022
  • Manufacturer: Onamba Co., Ltd.
  • Connector Type: MC4
  • Application: Thin-film photovoltaic / solar panel interconnection
  • Number of Terminals: 1
  • Wire Gauge: 14AWG (PV wire, 90°C, wet or dry, 600V — printed on cable jacket)
  • Wire Size Range: 2.0–2.5 mm²
  • Cable O.D. Range: 6.2–6.6 mm
  • Rated Voltage (UL): DC 600V
  • Rated Voltage (Other/IEC): DC 1000V
  • Max Rated Current @ 75°C — Without Diode: 10A (Other) / 20A (UL)
  • Max Rated Current @ 75°C — With Diode: 3.5A (Other) / 1.5A (UL)
  • Designed Operating Current: 3.5A / 4A
  • Diode: None included
  • Protection Degree: IP65 standard; IP67 with potting compound applied
  • Flame Class: 5VA
  • Insulation Material: PPE/PPO
  • Contact Material: Brass (tin plated)
  • Junction Box Dimensions (W × D × H): 62 × 30 × 14.6 mm
  • Certifications: UL1703, Certificate No. E212185
  • Country of Assembly: Mexico
  • Quantity: 60 male/female pairs (60 complete sets)
  • Each set includes: 1 male J-box with cable, 1 female J-box with cable, 2 snap-in plastic covers

Applications

MC4 photovoltaic junction boxes are used to terminate and interconnect the wiring from individual solar panels within a PV array. The PVU-B48-022 was developed specifically for thin-film solar panel modules, which were widely deployed in utility-scale and commercial rooftop installations during the early 2010s. The male/female MC4 connector pairs allow panels to be strung together in series or parallel configurations quickly and without tools, with the IP65/IP67 protection rating making them suitable for outdoor installation environments. These junction boxes are commonly used in replacement, repair, and new installation applications for thin-film PV systems, and are sought by solar contractors, panel refurbishers, and PV system integrators working with compatible thin-film modules.

Condition: Used
These Onamba PVU-B48-022 MC4 Solar Panel Junction Boxes are new old stock (NOS) — unused and uninstalled, pulled directly from the original manufacturer carton. The box of 60 male/female pairs appears to be in new condition with no signs of use or installation. The original shipping carton label is intact and legible, confirming part number, quantity of 60, and a manufacture date of January 2013. Each set includes one male junction box, one female junction box with 14AWG PV cable leads attached, and two snap-in plastic covers. Units show no visible damage; connector contacts appear clean and intact based on our inspection. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
