Onamba

Onamba PVU-B48-022 Staubli MC4 Solar Junction Box 11in Cable 10 Sets IP65

(No reviews yet) Write a Review
SKU:
52416
MPN:
PVU-B48-022
Condition:
New
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Onamba PVU-B48-022 Staubli MC4 solar junction box cable sets — three bundled groups overview
  • Single Onamba PVU-B48-022 MC4 cable set spread out with snap-in plastic junction box cover beside it
  • Onamba PVU-B48-022 MC4 junction box cable set with labels visible and snap-in cover
  • Close-up of PV wire jacket printing: 14AWG 90C Wet or Dry 600V on Onamba MC4 cable
  • Two bundled Onamba PVU-B48-022 MC4 cable sets with snap-in plastic covers stacked beside each
  • Bundle of Onamba PVU-B48-022 MC4 male connectors with snap-in junction box covers in foreground
  • Close-up of Onamba PVU-B48-022 Staubli MC4 male connector ends with snap-in covers

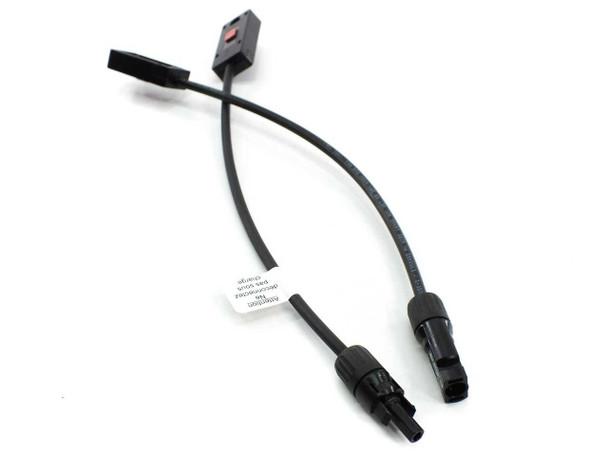

  • Single Onamba PVU-B48-022 MC4 male-female cable pair showing Y-split configuration with label
  • Onamba PVU-B48-022 MC4 junction box open showing internal contact area with snap-in cover beside it

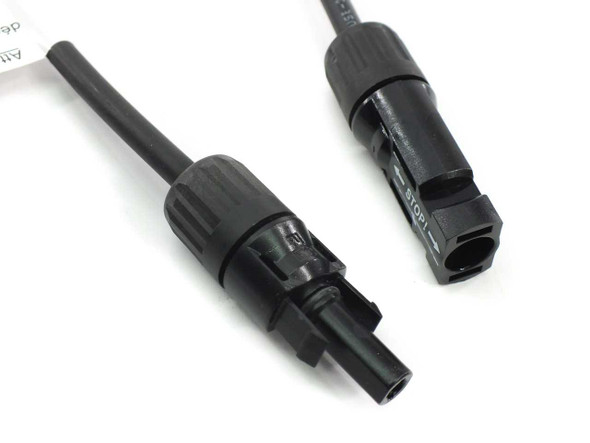

  • Close-up of Staubli MC4 male and female connector ends on Onamba PVU-B48-022 cable
$46.10
Was: $250.00
Current Stock: 49

Sold Out

Description

Onamba PVU-B48-022 Staubli MC4 Solar Junction Box 11in Cable 10 Sets IP65

Solar PV junction box sets with pre-assembled MC4 connector cables for photovoltaic system wiring. Each set includes a male/female connector pair with 11-inch cable and matching J-box covers.

Specifications & What's Included

  • 10 sets: 10 male/female MC4 cable pairs (11 inches/280mm each) plus 20 snap-in plastic J-box covers
  • Rated voltage: DC 600V (UL), DC 1000V (other)
  • Maximum current: 20A at 75°C (UL, no diode)
  • Wire gauge: 14 AWG PV wire, 90°C rated, wet/dry
  • Connector material: brass, tin-plated
  • Protection degree: IP65/IP67 with potting
  • Compliant with UL1703 standard

Applications

Used in residential and commercial solar PV systems for interconnecting photovoltaic panels and components. Compatible with Solopower SP3 and SP1 panels and general DIY/commercial solar installations. Junction boxes provide weatherproof connection points with individual positive and negative configurations for system wiring.

Condition: Open Box
These Onamba PVU-B48-022 Staubli MC4 solar junction box sets are new and unused open-box stock. The units are in new condition with no signs of prior use or installation. Original packaging may not be included or may be opened, but the product itself is uninstalled and new. Each set consists of a male/female cable pair with junction boxes and snap-in plastic covers. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Onamba
Model:
PVU-B48-022
MPN:
PVU-B48-022
Type:
Solar PV Junction Box with MC4 Connectors
SKU:
52416
Connector Type:
Staubli MC4 Male and Female
Cable Length:
11 inches (approx. 280mm)
Quantity:
10 Sets (10x Male/Female cable pairs)
Includes:
10 M/F cable pairs, 20 snap-in plastic J-box covers
Rated Voltage:
UL: DC600V; Other: DC1000V
Max Rated Current (No Diode):
10A (Other) / 20A (UL) at 75°C
Max Rated Current (With Diode):
3.5A (Other) / 1.5A (UL) at 75°C
Diode:
None — area provided to add your own
Wire Size Range:
2.0–2.5 mm²
Cable OD Range:
6.2–6.6 mm
Wire Gauge:
14 AWG, PV Wire, 90°C, Wet or Dry, 600V
Protection Degree:
IP65 / IP67 (with potting)
Flame Class:
5VA
Insulation Material:
PPE/PPO
Contact Material:
Brass (tin plated)
Conformity Standard:
UL1703 Certificate No. E212185
Compatible With:
Solopower SP3 and SP1 Solar Panels
Compatible With 2:
General DIY and commercial solar PV systems
Polarity Configuration:
Individual Positive and Negative (separate J-boxes)
Country/Region of Manufacture:
Japan
Seller Notes:
10 sets: 10x M/F 11-in cable pairs with J-boxes + 20 snap-in covers. New open-box.
Condition Notes:
Onamba PVU-B48-022 Staubli MC4 solar junction box sets — new, unused open-box stock. No prior installation. Original packaging may be absent or opened. Product is in new condition. 10 sets included.
View AllClose

Related Products

Related Products

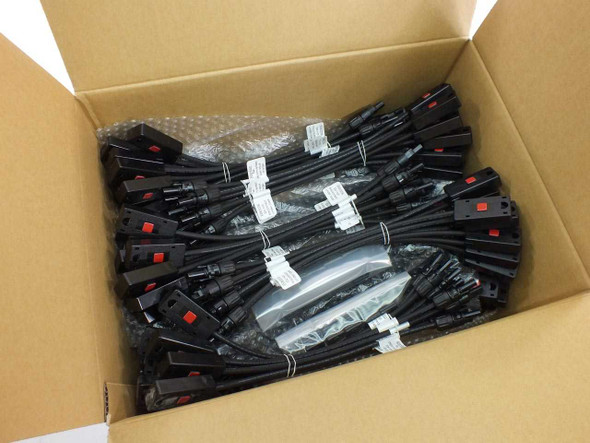

Onamba PVU-B48-022 MC4 solar junction box sets — full carton of 50 pairs packed in open cardboard shipping box Onamba PVU-B48-022 MC4 solar PV junction box pair — one male and one female J-box with attached 14AWG cables
