Stäubli

Staubli MC4 Solar Panel Cable Pair Male Female 14 AWG PV Wire 11in 600V

(No reviews yet) Write a Review
SKU:
52646
MPN:
MC4
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
0.45 LBS
Shipping:
Calculated at Checkout
  • Staubli MC4 solar cable pair showing male and female connectors with 11-inch black PV wire leads
  • Close-up of Staubli MC4 male and female connectors — female shows 'Do not disconnect under load' safety label

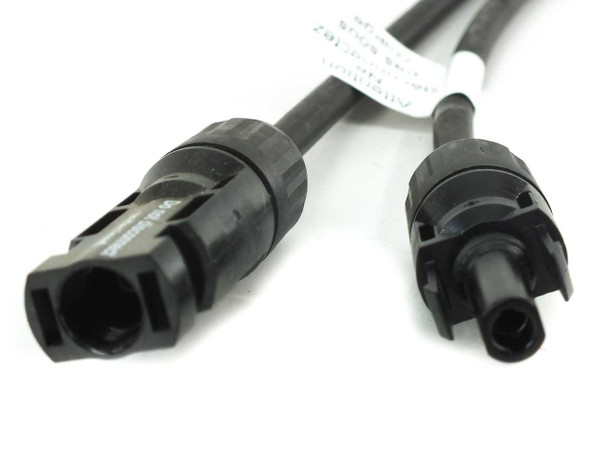

  • Staubli MC4 male and female connector ends side by side showing pin and socket contacts

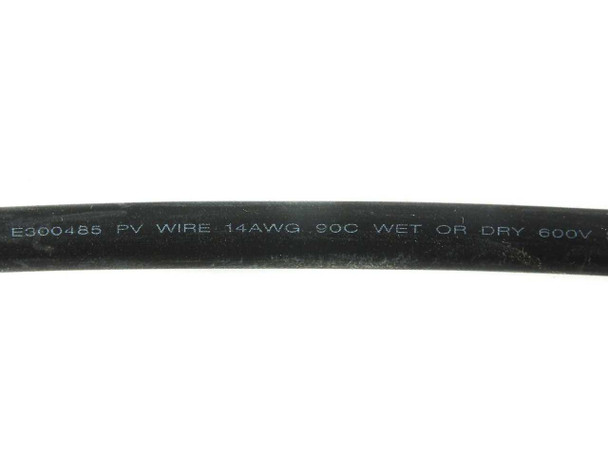

  • Cable jacket close-up showing printed marking: E300485 PV WIRE 14AWG 90C WET OR DRY 600V

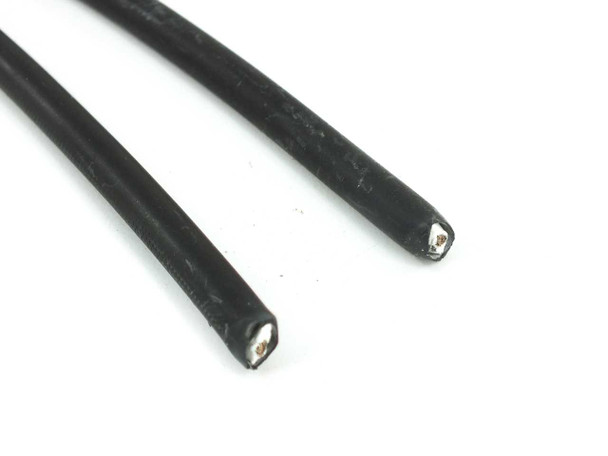

  • Both cable ends shown flush-cut with white insulation layer visible beneath black jacket

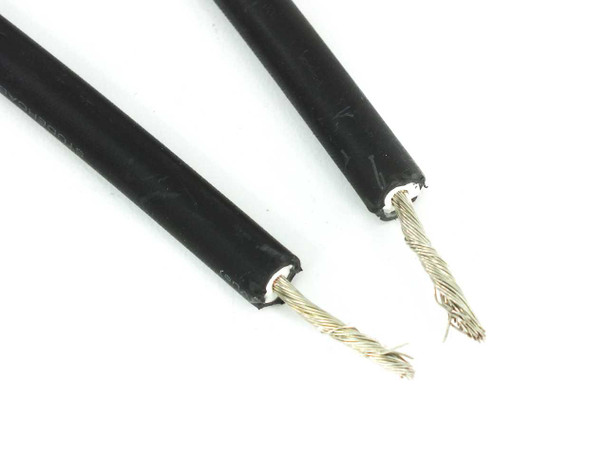

  • Both cable ends with conductor wire exposed showing stranded copper construction
$4.00
Was: $10.00
Current Stock: 73

Sold Out

Description

Staubli MC4 Solar Panel Cable Pair Male Female 14 AWG PV Wire 11in 600V

This is a single pair of MC4 connector cables for photovoltaic solar systems. The set includes one male and one female MC4 connector with 11 inches of 14 AWG PV wire rated for 600V operation.

Specifications & What's Included

  • Brand: Staubli
  • Model: MC4
  • Wire Gauge: 14 AWG
  • Length: 11 Inches
  • Voltage Rating: 600V
  • Temperature Rating: 90°C
  • Wire Type: PV Wire (wet/dry rated)
  • Quantity: 1 pair (1 male + 1 female connector)
  • Manufactured in Switzerland

Applications

MC4 connectors are standard in residential and commercial photovoltaic systems for connecting solar panels to charge controllers, combiner boxes, and inverter systems. These cables are used in string configurations to link multiple panels or connect panel strings to balance-of-system components. The MC4 standard is widely used across the solar industry for its secure connection design and weatherproof capabilities.

Condition: New
This Staubli MC4 Solar Panel Cable Pair is new and unused. The wire ends are cut flush from the factory — they have not been pre-stripped. The photo set includes an image with the conductor exposed for reference only; the actual cable ends as shipped are flush-cut with insulation intact. Both the male and female MC4 connectors are in new condition with no wear or damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Staubli
Model:
MC4
MPN:
MC4
Type:
Solar Panel PV Cable Pair with MC4 Connectors
SKU:
52646
Connector Type:
MC4 (Male and Female)
Wire Gauge:
14 AWG
Wire Length:
11 Inches
Voltage Rating:
600V
Temperature Rating:
90°C
Wire Type:
PV Wire — Wet or Dry rated
Wire Listing Code:
E300485
Quantity:
1 Pair (1 Male + 1 Female)
Wire End Condition:
Flush cut — ends not pre-stripped
Compatible With:
Solar panels, charge controllers, combiner boxes
Application:
Photovoltaic (PV) solar panel wiring
Country/Region of Manufacture:
Switzerland
Seller Notes:
1 pair — 1 male + 1 female MC4 connector; wire ends are cut flush
Condition Notes:
Staubli MC4 Solar Cable Pair is new and unused. Wire ends are flush-cut (not pre-stripped). Exposed-wire photo is for reference only. Male and female MC4 connectors are in new condition. Please contact us with questions.
View AllClose

Related Products

Related Products

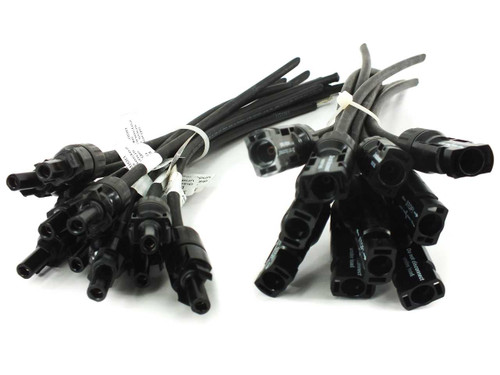

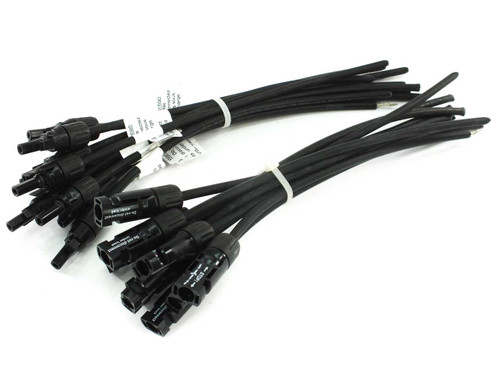

Stäubli MC4 solar panel cable sets lot of 10 male and female pairs bundled together, 14 AWG black PV wire with white zip ties Stäubli MC4 solar cable sets separated into male connector bundle (left) and female connector bundle (right), showing both connector styles
Add to Cart
Quick view

Stäubli MC4 Solar Panel Cable Sets 14 AWG 11in PV Wire 600V Lot of 10 Pairs

Stäubli

$38.90
Was: $100.00
Stäubli MC4 Solar Panel Cable Sets 14 AWG 11in PV Wire 600V Lot of 10 Pairs MC4 connector pigtail cable sets used for solar panel wiring. Each set includes one male and one female MC4 connector with...
52647
SKU:
52647
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Stäubli
Model:
MC4
MPN:
MC4
Type:
Solar Panel Cable Set / MC4 Connector Pigtail
SKU:
52647
Connector Type:
MC4 (Male and Female)
Wire Gauge:
14 AWG
Wire Length:
11 inches (approx. 28 cm)
Wire Diameter:
1/4 in (6.5 mm)
Voltage Rating:
600V
Temperature Rating:
90°C
Wire Type:
PV Wire – Wet or Dry, UL E300485
Wire Insulation:
PV Wire 14AWG 90C Wet or Dry 600V
Cable Jacket Marking:
STUDERCABLES.COM SWITZERLAND
UL Rating:
UL 4703 FLEX 125 600/1000V
Quantity:
Lot of 10 Male/Female Pairs (20 connectors total)
Gender:
Male and Female (one of each per set)
Application:
Solar Panel PV System Wiring
Compatible With:
Standard MC4-compatible solar panels and inverters
Country/Region of Manufacture:
Switzerland
Condition:
New – Old Stock from Solopower Portland OR facility
Seller Notes:
Lot of 10 male/female MC4 cable sets, new old stock from Solopower
Condition Notes:
Stäubli MC4 solar cable sets, 14 AWG, 11in — brand new old stock from Solopower Portland OR facility closure. Connectors unused; cable ends are cut/stripped from factory prep. No original packaging. Lot of 10 pairs.

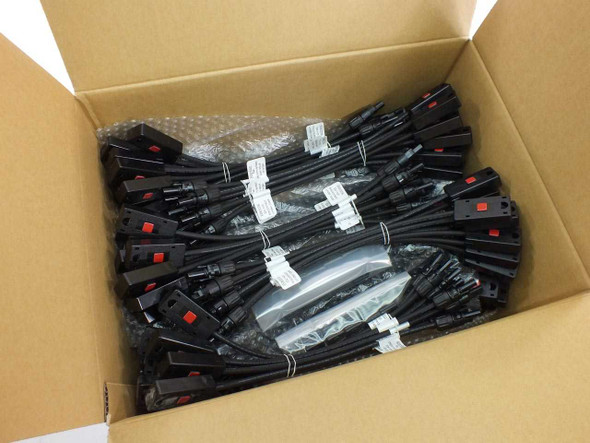

Onamba PVU-B48-022 MC4 solar junction box pairs – full open carton showing 60 sets bundled together Onamba PVU-B48-022 MC4 junction box pair – male and female J-boxes with 14AWG PV cable leads on white background
Add to Cart
Quick view

Onamba PVU-B48-022 MC4 Solar Junction Box 14AWG 600V Male Female Pairs Qty 60

Onamba

$187.00
Was: $375.00
Onamba PVU-B48-022 MC4 Solar Junction Box 14AWG 600V Male Female Pairs Qty 60 The Onamba PVU-B48-022 is a photovoltaic interconnecting junction box (J-box) designed for thin-film solar panel...
52050
SKU:
52050
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Brand:
Onamba
Model:
PVU-B48-022
MPN:
PVU-B48-022
Type:
Photovoltaic MC4 Solar Panel Junction Box
SKU:
52050
Connector Type:
MC4
Wire Gauge:
14AWG
Rated Voltage (UL):
DC 600V
Rated Voltage (Other):
DC 1000V
Max Rated Current (No Diode, Other):
10A
Max Rated Current (No Diode, UL):
20A
Max Rated Current (With Diode, Other):
3.5A
Max Rated Current (With Diode, UL):
1.5A
Designed Current:
3.5A / 4A
Diode:
None
Wire Size Range:
2.0–2.5 mm²
Cable O.D. Range:
6.2–6.6 mm
Protection Degree:
IP65 / IP67 (with potting)
Flame Class:
5VA
Insulation Material:
PPE/PPO
Contact Material:
Brass (tin plated)
Number of Terminals:
1
Dimensions (W x D x H):
62 x 30 x 14.6 mm
Certifications:
UL1703 Certificate No. E212185
Application:
Thin Film Photovoltaic / Solar Panel
Quantity:
60 male/female pairs (60 sets)
Set Contents:
1 male J-box + 1 female J-box with cables, 2 snap-in covers
Condition:
Used – New Old Stock
Country/Region of Manufacture:
Mexico
Seller Notes:
Box of 60 male/female MC4 J-box pairs; new old stock, assembled in Mexico
Condition Notes:
Onamba PVU-B48-022 MC4 Solar Junction Boxes — new old stock, unused. Box of 60 male/female pairs in original carton, dated Jan 2013. Each set: 1 male + 1 female J-box w/ 14AWG cables and 2 snap-in covers.

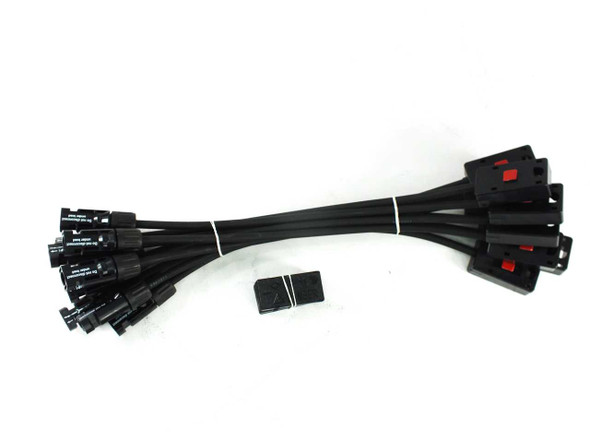

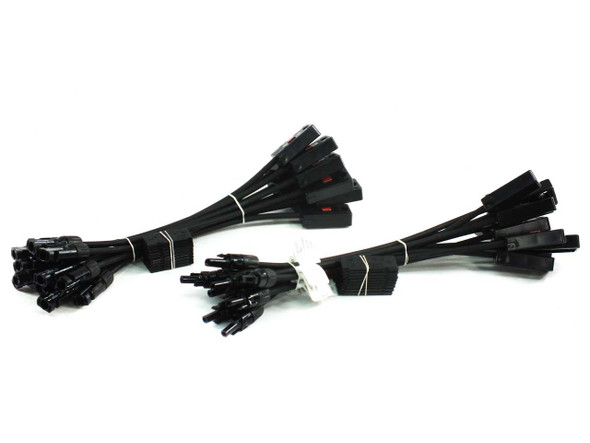

Onamba PVU-B48-022 Staubli MC4 solar junction box cable sets — three bundled groups overview Single Onamba PVU-B48-022 MC4 cable set spread out with snap-in plastic junction box cover beside it
