Deltatherm

Deltatherm WT-Gruppe HYD11-100 RKV 11.2 Industrial Heating Cooling Unit 480V 3Ph

(No reviews yet) Write a Review
SKU:
52198
MPN:
WT-Gruppe
Condition:
Used
Availability:
This item requires freight shipping. Please contact us for a shipping quote and to arrange delivery or local pickup.
Weight:
9,999.00 LBS
Shipping:
Calculated at Checkout

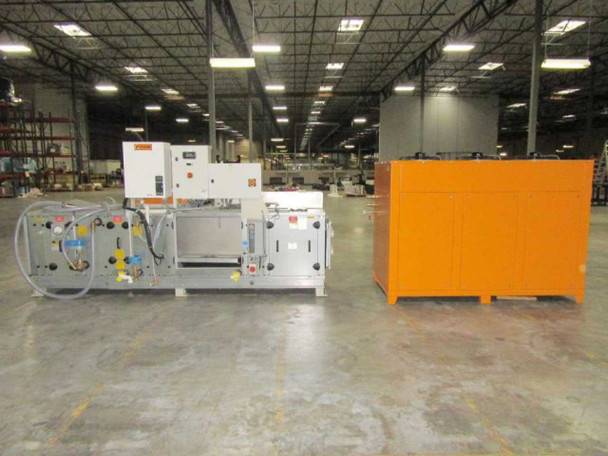

  • Deltatherm WT-Gruppe HYD11-100 heating cooling unit and RKV 11.2 orange chiller cabinet on warehouse floor, full system overview

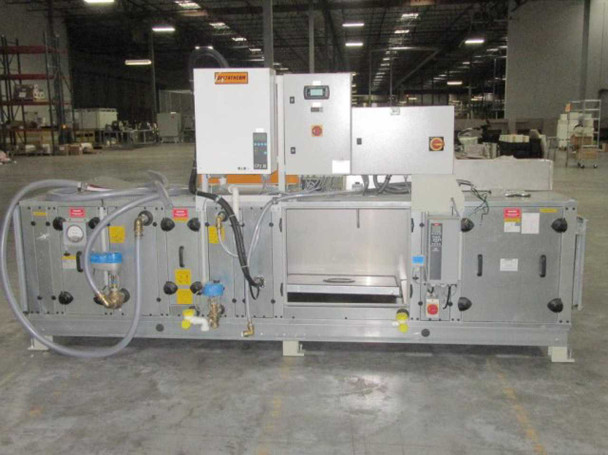

  • Deltatherm HYD11-100 industrial heating cooling humidifying cabinet front view showing control panel, fluid manifolds, and access sections
  • Deltatherm RKV 11.2 orange cooling water heat exchanger front view with mesh ventilation panels and compressor housing
  • Deltatherm RKV 11.2 chiller top view showing three 500 mm axial condenser fans on orange enclosure
  • Deltatherm HYD11-100 cabinet full front-angle view with control enclosure, fluid connections, and duct outlet ports visible

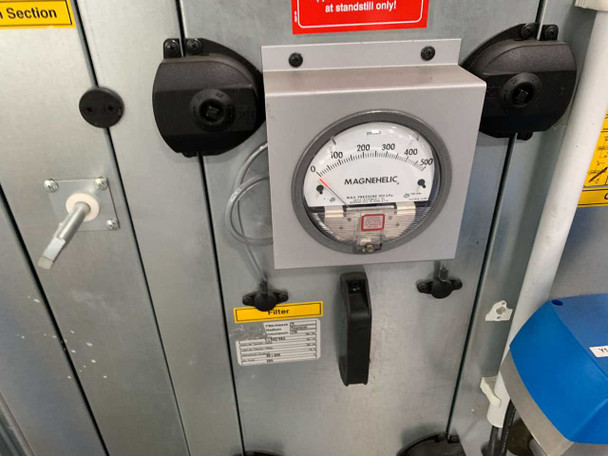

  • HYD11-100 cabinet door detail showing Magnehelic differential pressure gauge and filter section warning labels
  • Deltatherm WT-Gruppe dual electrical control panel enclosures with Eaton disconnect switches and digital controller display
  • HYD11-100 cabinet section detail showing Heat Exchanger Cooler identification label with water connection diagram
  • HYD11-100 cabinet section detail showing Heat Exchanger Heater identification label with water connection diagram
  • Supply Air Fan nameplate: Zuluft, Baujahr 2012, Freirad, 2100 m³/h at 520 Pa, 400V/2.37A, 1.10 kW, 2611/3560 rpm
  • Filter section nameplate: F5 class, polypropylene medium, 2100 m³/h, 592x592 mm, 40–200 Pa operating / 250 Pa max pressure
  • HYD11-100 Droplet Eliminator section door with red standstill-only warning label and black quarter-turn fasteners
  • Deltatherm HYD11-100 rear/side view showing stainless steel duct housing with multiple round duct outlet ports and orange chiller unit
  • Deltatherm CE nameplate: WT-Gruppe type, Masch.Nr. 14-23236, Baujahr 01/2013, 480V 60Hz, 6.5 kW, 12.61A, Made in Germany
  • HYD11-100 module nameplate: Typ HYD11 100, Fabr.Nr. 423701, Baujahr 2012, 2100 m³/h / 520 Pa, 400V/2.37A, heating 7.78 kW, cooling 30.01 kW

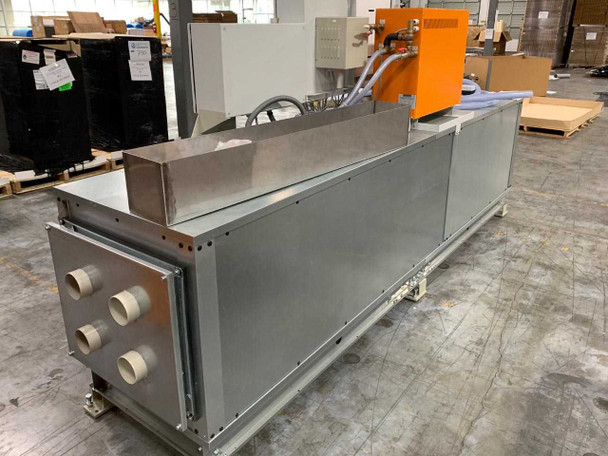

  • Deltatherm HYD11-100 side view showing full-length stainless duct cabinet with orange chiller unit mounted on top at rear
  • Deltatherm RKV 11.2 orange chiller side view showing refrigerant piping, service valves, and bolted panel construction
  • Deltatherm RKV 11.2 orange chiller front view with control panel, red E-stop, and pressure gauge on front face

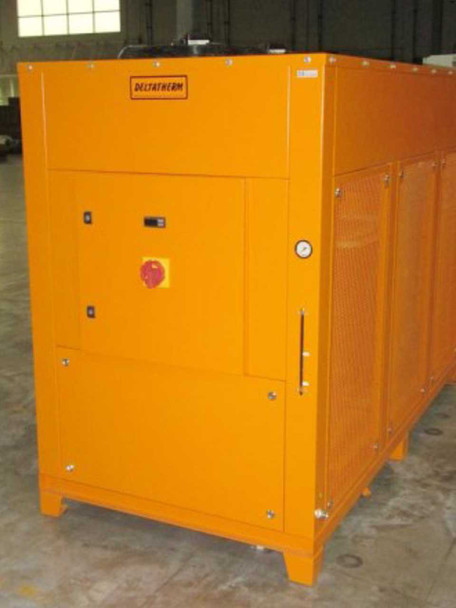

  • Deltatherm RKV 11.2 orange chiller rear view showing brass water inlet/outlet connections and mesh condenser panels
  • Deltatherm RKV 11.2 orange chiller three-quarter front view with condenser fans visible on top and side service panels
  • Deltatherm WT-Gruppe Heating Cooling Unit - HYD11-100, RKV 11.2, TM-W90-9/15-40
$15,240.00
Was: $45,000.00
Current Stock: 1

Sold Out

Description

Deltatherm WT-Gruppe HYD11-100 RKV 11.2 Industrial Heating Cooling Unit 480V 3Ph

Floor-standing industrial heating and cooling unit manufactured in Germany (2012–2013). Delivers 30 kW cooling capacity and 7.78–9 kW heating capacity with precision temperature control from 2.5°C to +25°C.

Specifications & What's Included

  • Model: WT-Gruppe HYD11-100 with RKV 11.2 chiller
  • Power: 480V, 3-Phase, 60Hz; 22 kW compressor (32A), 45A circuit protection
  • Cooling: 30 kW; Heating: 7.78–9 kW
  • Refrigerant: R407C, 25 kg charge
  • Air-cooled axial condenser with three 500 mm fans; 2100 m³/h airflow at 520 Pa
  • Temperature controller: TM-W90-9/15-40
  • Cooling water pump: 40 L/min, 3 Bar, 1 kW
  • Humidifier: Walter Meier CP 3 Pro 5
  • Includes HYD11-100 cabinet, RKV 11.2 chiller unit, and 2 manuals

Applications

Used in industrial cleanroom, manufacturing, and process cooling environments requiring stable temperature and humidity control. Suitable for precision production areas, testing facilities, and equipment cooling systems that demand consistent environmental conditions. The unit operates within standard industrial electrical infrastructure and integrates with compatible building management and climate control systems.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Deltatherm WT-Gruppe industrial heating and cooling system — comprising the HYD11-100 heating/cooling/humidifying cabinet, the RKV 11.2 cooling water heat exchanger/chiller, and the TM-W90-9/15-40 temperature controller — was extracted from a working industrial facility. The system appears in good overall cosmetic condition based on our inspection; the stainless HYD11-100 cabinet shows minimal surface wear, and the orange RKV 11.2 chiller enclosure presents cleanly with no visible major damage. Two manuals are included. This is a large, complex system that requires freight shipping; it is not suitable for standard parcel delivery. Please contact us for a shipping quote, to arrange local pickup at our facility, or to schedule an in-person viewing before purchase. Please view our full photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Deltatherm
Model:
WT-Gruppe
Secondary Model:
HYD11-100
MPN:
HYD11-100
SKU:
52198
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes HYD11-100 cabinet, RKV 11.2 chiller, TM-W90-9/15-40 temp controller, 2 manuals
Country of Manufacture:
Germany
Form Factor:
Floor Standing / Skid-Mounted
Year of Manufacture:
2012–2013
Machine Number:
14-23236
Power Requirements:
480V, 3-Phase, 60Hz
Cooling Capacity:
30 kW (RKV 11.2); 30.01 kW (HYD11-100 label)
Heating Capacity:
7.78 kW (HYD11-100); 9 kW (TM-W90)
Refrigerant:
R407C, 25 kg charge
Compressor Power:
22 kW, 32 Amps
Temperature Range:
2.5°C to +25°C (RKV 11.2)
Condenser Type:
Air-cooled axial, 3 x 500 mm fans
Supply Air Flow:
2100 m³/h at 520 Pa total pressure
Supply Fan Speed:
2611 rpm nominal / 3560 rpm max
Supply Fan Motor Power:
1.10 kW
Filter Class:
F5 polypropylene, 592 x 592 mm, max 250 Pa
HYD11-100 Power (Cabinet):
400V / 2.37A nominal
RKV 11.2 Power:
480V 3-Phase 60Hz, 45A (63A protection circuit)
TM-W90 Power:
480V 3-Phase 60Hz, 10 kW (16A)
Cooling Water Pump:
40 L/min, 3 Bar, 1 kW (TM-W90)
Cooling Water Pump Model:
MXH 803/60 A-S
WT-Gruppe Connected Load:
6.5 kW at 480V 60Hz, 12.61A
Humidifier:
Walter Meier CP 3 Pro 5
Air Intake Fan:
Gebhardt RLM E6-2528-2W-11-C
Drive:
Danfoss VLT HVAC Drive
Droplet Separator:
ROX PPTV Droplet Separator
Shipping Method:
Freight required — contact seller for quote
Application:
Industrial HVAC, precision temperature and humidity control
Compatible With:
Industrial cleanroom, manufacturing, process cooling environments
Condition Notes:
Deltatherm WT-Gruppe HYD11-100 heating/cooling system pulled from a working facility. Includes RKV 11.2 chiller, TM-W90 temp controller, and 2 manuals. Good cosmetic condition. Freight shipping required. Contact us for a quote.
