Lneya

Lneya Sundi-1A15 Cooling Heating Chiller -10°C to 200°C 20kW 208V 3-Phase R404A

(No reviews yet) Write a Review
SKU:
53166
MPN:
Sundi-1A15
Condition:
Used
Availability:
Usually ships within 5-7 business days due to size and freight requirements. Contact us for shipping options.
Weight:
452.00 LBS
Shipping:
Calculated at Checkout
  • Lneya Sundi-1A15 cooling and heating chiller front three-quarter view showing stainless steel cabinet, touchscreen HMI, and lower condenser grille with casters

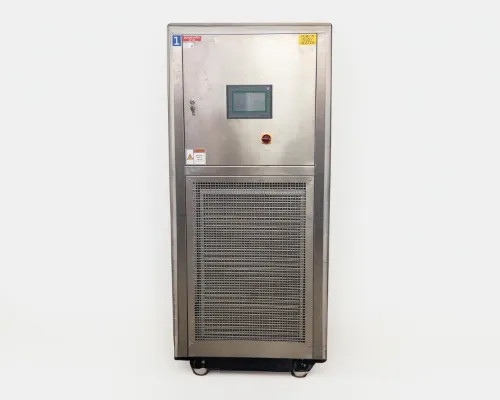

  • Lneya Sundi-1A15 chiller direct front view showing full stainless steel enclosure, HMI panel, emergency stop button, and lower mesh condenser section

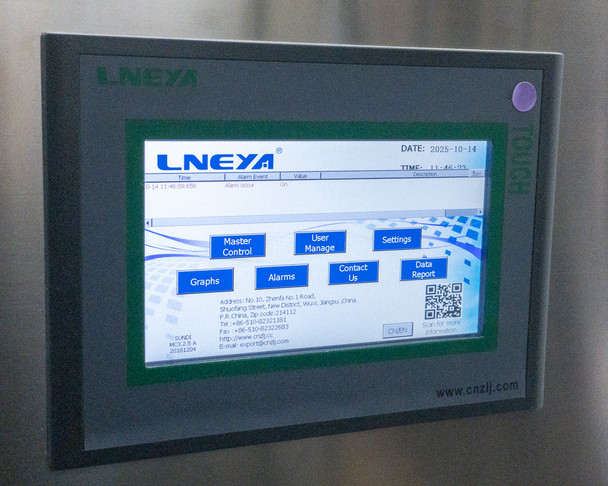

  • Lneya LNEYA touchscreen HMI main menu screen showing Master Control, User Manage, Settings, Graphs, Alarms, Contact Us, and Data Report buttons with date displayed
  • Lneya Sundi-1A15 HMI control screen showing medium return temperature, outlet temperature, process temp, and setting temp fields with Start, Stop, and Air Venting controls
  • Close-up of Sundi-1A15 upper cabinet corner showing Duratherm G-LV heat transfer fluid label, LNEYA branding tag, and factory specification sticker

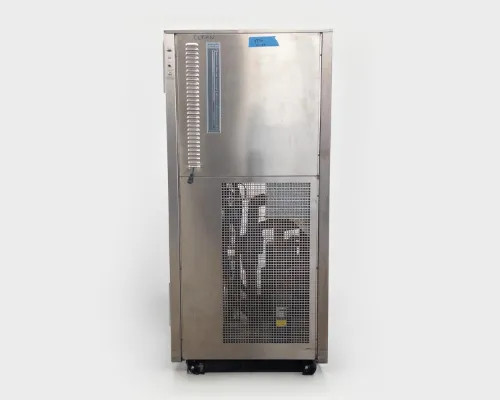

  • Lneya Sundi-1A15 right side panel view showing vented louvers, upper access panel with blue tape, and lower compressor section with mesh guard
  • Rear view of MCGS touchscreen HMI panel showing wiring connections, CE and FC certification labels, and mounting bracket assembly

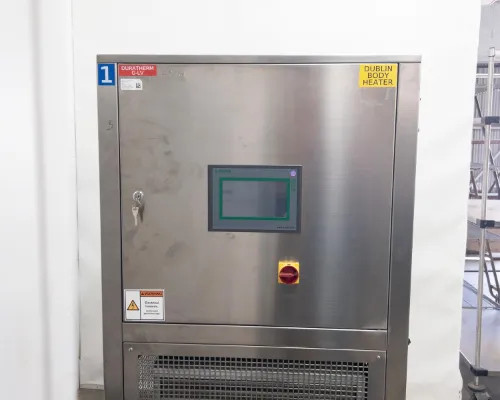

  • Lneya Sundi-1A15 chiller front view with door closed, Duratherm G-LV and Dublin Body Heater labels visible, touchscreen behind locked panel door with key lock
  • Right side panel detail showing RS485 port, USB port, Pt100 sensor connector, and Level/Lighting connector on stainless steel panel with Dublin Body Heater label
  • Lneya Sundi-1A15 top-front three-quarter view showing HMI touchscreen, emergency stop mushroom button, warning labels, and Dublin Body Heater label on side panel
  • Close-up of 5-pin industrial power plug connector housing showing markings: 5100P9W, 100-130V, 10PT, 120/208 VAC
  • Interior electrical panel view showing JGX-3-4ZT60Z solid state relay block, terminal strips, wiring harness, and DIN rail mounted components

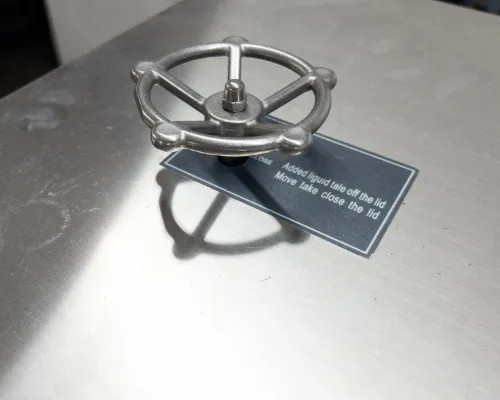

  • Top surface of Sundi-1A15 showing stainless steel handwheel valve and instructional tag reading 'Added liquid take off the lid, Move lake close the lid'
  • Top fill port detail on Sundi-1A15 showing circular fill cap with G-LV Only and Duratherm G-LV red labels indicating required heat transfer fluid
  • Upper electrical enclosure interior showing circuit breakers, PLC modules, contactors, DIN rail wiring, and control components on left side panel
  • Lneya Sundi-1A15 left side view showing clean stainless steel panels, upper vent louvers, lower condenser mesh, and caster wheels

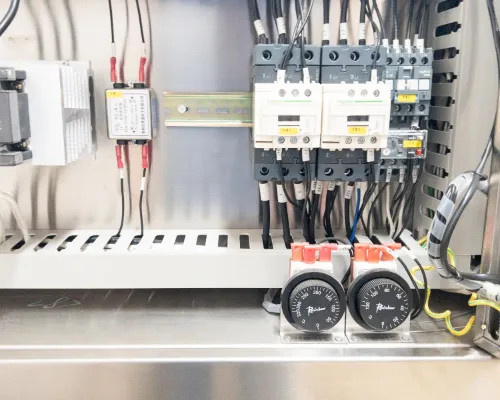

  • Lower electrical panel interior showing Schneider contactors, Ranco thermostats, terminal blocks, and multi-phase wiring with orange actuator handles
  • Lneya Sundi-1A15 factory specification label showing: Model SUNDI-1A15, Temp Range -10 to 200°C, Heating Power 15kW, Pump Max 75L/min 2.5bar, Refrigerant R404A 2.2KG, Power AC 208V 60Hz 20kW 3phase, Factory No. 8127958, Production Date 2018-12, cooling capacity values, dimensions 750x800x1850mm, weight 300KG, LNEYA product certification qualified

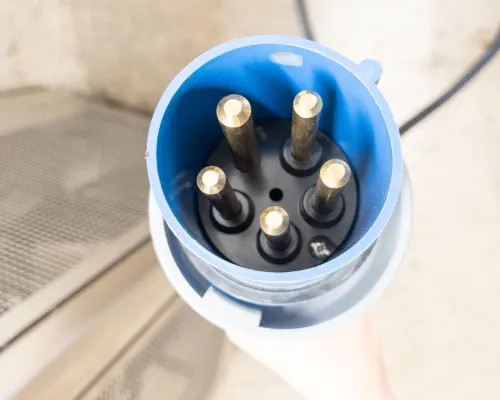

  • Close-up top view of 5-pin industrial twist-lock plug face showing five brass pins and center ground pin in blue connector body
  • Second factory specification label on opposite side panel showing identical SUNDI-1A15 specs, LNEYA certification sticker, and partial handwritten inventory notation
  • Lneya Sundi-1A15 Cooling & Heating Chiller -10°C - +200°C, AC 208V 60hz 20kW 3ph
  • Lneya Sundi-1A15 Cooling & Heating Chiller -10°C - +200°C, AC 208V 60hz 20kW 3ph
  • Lneya Sundi-1A15 Cooling & Heating Chiller -10°C - +200°C, AC 208V 60hz 20kW 3ph
$15,000.00
Was: $30,000.00
Current Stock: 1

Sold Out

Description

Lneya Sundi-1A15 Cooling Heating Chiller -10°C to 200°C 20kW 208V 3-Phase R404A

Floor-standing dual-function chiller and heater for process temperature control. Operates across -10°C to +200°C with 20kW total power output and R404A refrigerant system.

Specifications & What's Included

  • Temperature Range: -10°C to +200°C
  • Cooling Capacity: 15kW (at 200°C and 100°C); 10kW (at 0°C); 9kW (at -10°C)
  • Heating Power: 15kW
  • Power: 208V AC 60Hz, 3-Phase, 20kW total
  • Pump Flow: Max 75 L/min at 2.5 bar
  • Refrigerant: R404A (2.2kg)
  • Control: MCGS touchscreen HMI with LNEYA software; RS485, USB, Pt100 sensor ports
  • Dimensions: 750 x 800 x 1850 mm
  • Includes: 5-pin industrial twist-lock power cable

Applications

Used in chemical processing, pharmaceutical manufacturing, laboratory environments, and industrial settings requiring precise temperature control. These units circulate heat transfer fluid (Duratherm G-LV compatible) through external systems for heating and cooling operations. Commonly integrated with reactors, test chambers, and process equipment requiring stable setpoint maintenance across wide temperature ranges.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Lneya Sundi-1A15 Cooling and Heating Chiller has been inspected and is in good used condition. It was pulled from a working environment where it was actively in service. The stainless steel cabinet shows normal surface wear consistent with industrial use. The touchscreen HMI panel is intact and the display is undamaged. The Duratherm G-LV fluid labels and all panel markings are present and legible. The RS485, USB, and Pt100 ports on the side panel appear undamaged. The power cable with 5-pin industrial twist-lock connector is included. Minor scuffing and tape residue are visible on the exterior panels. The factory specification label confirms production date December 2018 and the unit carries factory QC certification (inspector #12, qualified). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lneya (Wuxi Guanya Refrigeration Technology)
Model:
Sundi-1A15
MPN:
SUNDI-1A15
SKU:
53166
Condition:
Used – Pulled from Working Environment
Form Factor:
Floor Standing / Freestanding Cabinet
Temperature Range:
-10°C to +200°C
Heating Power:
15kW
Total Power:
20kW
Power Requirements:
AC 208V 60Hz, 3-Phase
Refrigerant:
R404A, 2.2kg
Pump Max Flow:
Max 75 L/min, 2.5 bar
Cooling Capacity at 200°C:
15kW
Cooling Capacity at 100°C:
15kW
Cooling Capacity at 0°C:
10kW
Cooling Capacity at -10°C:
9kW
Dimensions (mm):
750 x 800 x 1850
Factory No.:
8127958
Production Date:
2018-12
Heat Transfer Fluid:
Duratherm G-LV
Interface / Connectivity:
RS485, USB, Pt100 sensor port
HMI / Control:
MCGS touchscreen HMI with LNEYA software
Power Connector:
5-pin industrial twist-lock, 100-130V / 120/208V AC
Country of Manufacture:
China
Application:
Chemical processing, pharmaceutical, lab, industrial
Certifications:
CE (contactor), FC (HMI panel); factory QC certified
Seller Notes:
Includes power cable with 5-pin industrial connector. Fluid reservoir cap and handwheel visible. No additional accessories confirmed.
Condition Notes:
Lneya Sundi-1A15 Cooling & Heating Chiller pulled from active service. Good used condition; normal surface wear. HMI and ports intact. Includes 5-pin industrial power cable. Factory QC certified (2018-12). Please contact us with questions.
