Description
Lneya Sundi-225-2TN Cooling Heating Chiller 208V 1Ph 2.5KW -25 to 200C
Dual-purpose process temperature control unit for heating and cooling applications. Maintains temperatures from -25°C to +200°C with variable cooling capacity and 2.5 KW heating output.
Specifications & What's Included
- Power: 208V / 60Hz / 1 Phase / 50 FLA
- Temperature Range: -25°C to +200°C
- Heating Power: 2.5 KW
- Cooling Capacity: 2.5 KW (200°C), 2.9 KW (100°C), 2 KW (20°C), 1.5 KW (0°C), 1 KW (-20°C)
- Pump Flow Rate: 15 L/min, 1 bar
- Refrigerant: R404A, 1.8 KG

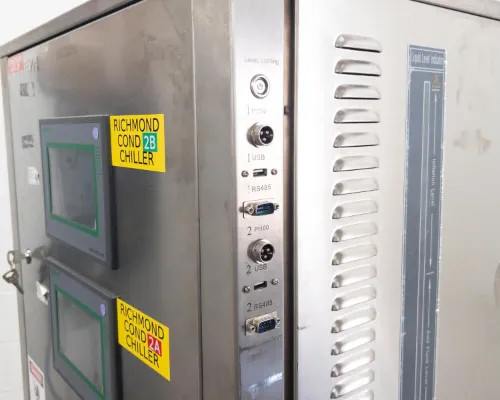

- Interface: Dual Touchscreen HMI, USB, RS485, Ethernet
- Dimensions: 650 x 700 x 1750 mm

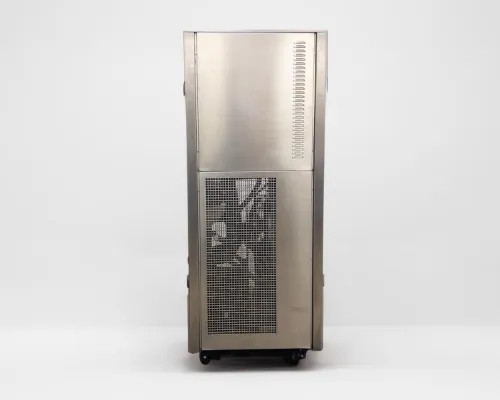

- Freestanding floor unit on casters
- Keys included; Duratherm XLT-120 fluid
Applications
These chillers are used in chemical processing, pharmaceutical manufacturing, laboratory testing, and semiconductor production environments where precise fluid temperature control is required. The unit accommodates both heating and cooling cycles, supporting Duratherm XLT-120 and similar heat transfer fluids. Typical use includes reactor temperature management, test chamber conditioning, and process fluid circulation across industrial and research settings.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

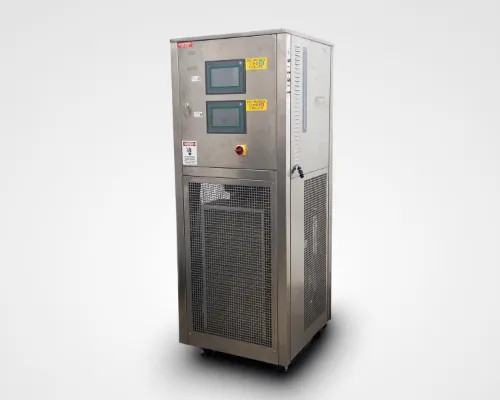

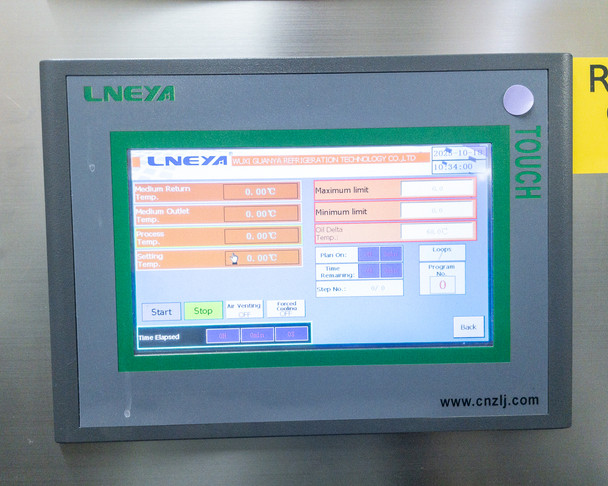

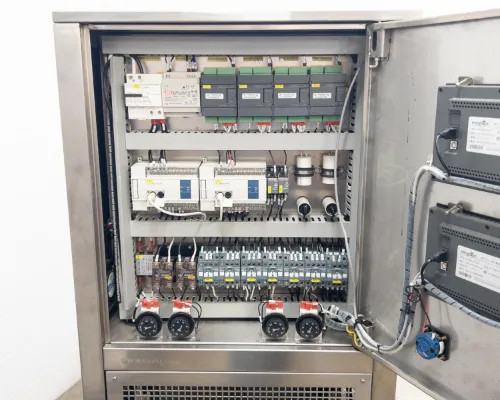

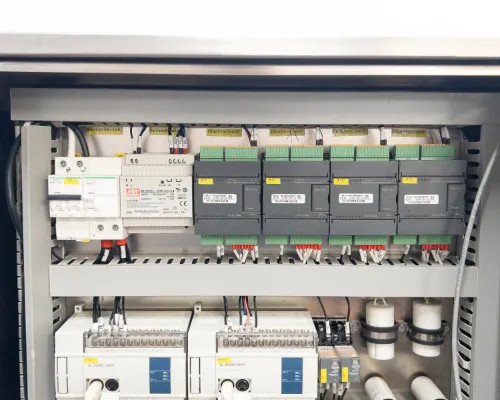

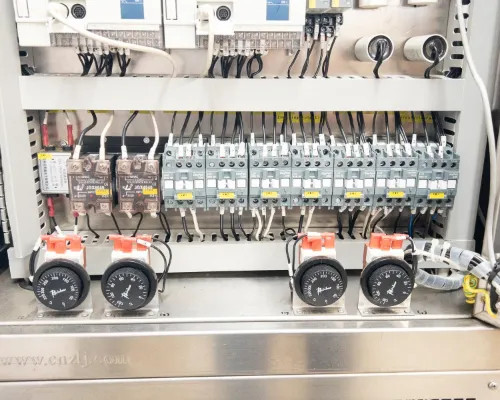

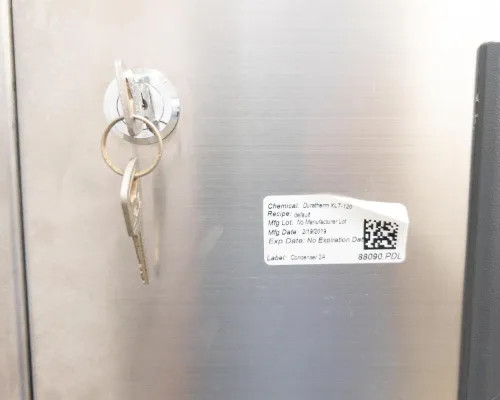

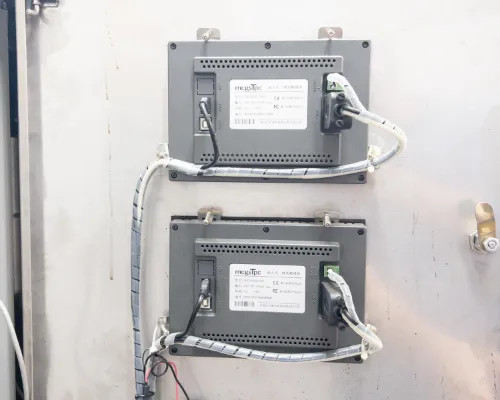

This Lneya Sundi-225-2TN cooling and heating chiller has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The stainless steel enclosure shows light surface scuffing and smudging consistent with industrial use, most notably on the side panels and door. Both LNEYA touchscreen HMI displays are present and intact. The unit retains its keys, and fluid line fittings are visible on the side. Asset tags and a chemical service label (Duratherm XLT-120, dated 2019) are affixed to the cabinet. Internal control components including DIN-rail PLCs and I/O modules appear intact and undisturbed. The unit has not been powered or bench-tested at our facility. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Lneya (Wuxi Guanya Refrigeration Technology) |
Model: |
Sundi-225-2TN |
MPN: |
SUNDI-225-2TN |
SKU: |
53165 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes keys; chemical label shows Duratherm XLT-120 |
Country of Manufacture: |
China |
Form Factor: |
Freestanding Floor Unit on Casters |
Power Requirements: |
208V / 60Hz / 1 Phase / 50 FLA |
Temperature Range: |
-25°C to +200°C |
Heating Power: |
2.5 KW |
Cooling Capacity: |
200°C: 2.5KW; 100°C: 2.9KW; 20°C: 2KW; 0°C: 1.5KW; -20°C: 1KW |
Refrigerant: |
R404A, 1.8 KG |
Pump Flow Rate: |
15 L/min, 1 bar |
Factory No: |
8127727 |
Production Date: |
2018-08 |
Dimensions (mm): |
650 x 700 x 1750 |
Interface Type: |
Dual Touchscreen HMI, USB, RS485, Ethernet |
Application: |
Chemical, pharmaceutical, lab, semiconductor process temp control |
Compatible Chemical: |
Duratherm XLT-120 (as labeled on unit) |
Certifications: |
CE |
Condition Notes: |
Lneya Sundi-225-2TN cooling heating chiller inspected, in good used condition. Pulled from working environment. Light surface scuffing on panels. Keys included. Not bench-tested at our facility. Please contact us with questions. |
