Lneya

Lneya Sundi-255 Cooling Heating Recirculation Chiller -25°C +200°C 208V 3Ph

(No reviews yet) Write a Review
SKU:
53164
MPN:
Sundi-255
Condition:
Used
Availability:
Usually ships within 3-5 business days — please contact us for freight arrangements on this large unit.
Weight:
665.00 LBS
Shipping:
Calculated at Checkout

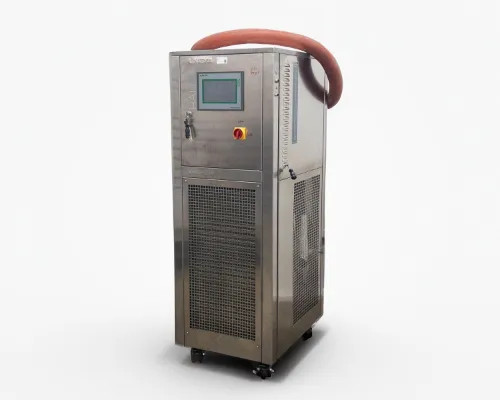

  • Lneya Sundi-255 recirculation chiller front-left three-quarter view showing stainless steel cabinet, HALIO touchscreen, emergency stop button, and orange silicone hose looped over the top

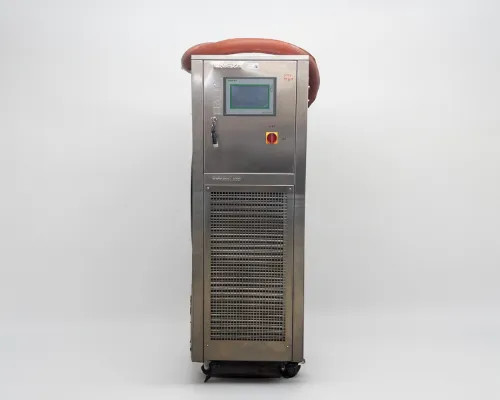

  • Lneya Sundi-255 recirculation chiller front view showing LNEYA branding, HALIO touchscreen panel, key switch, and ON/OFF power rotary switch

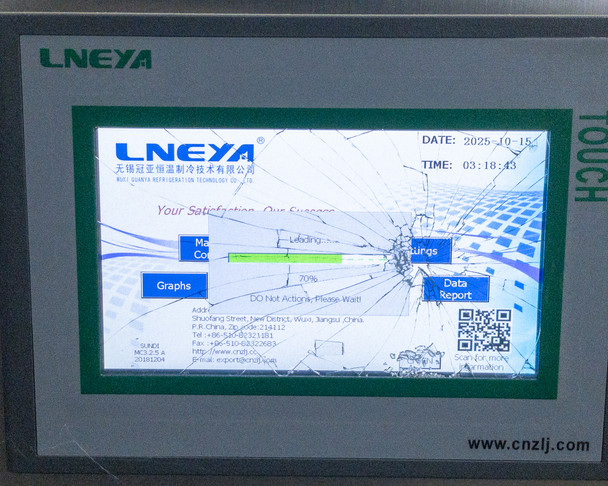

  • Close-up of cracked Lneya HALIO touchscreen displaying LNEYA startup screen with loading progress bar — screen glass is shattered

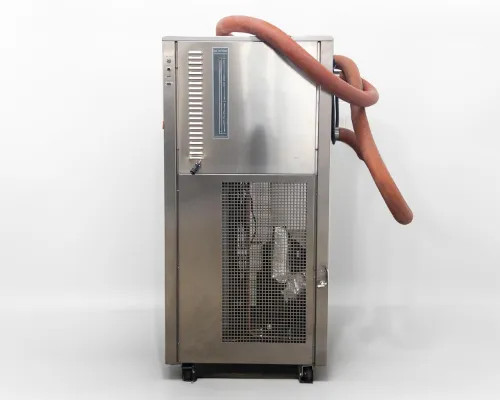

  • Left side view of Lneya Sundi-255 showing ventilation louvers, fluid plumbing connections, and lower compressor compartment with mesh guard
  • Front panel detail showing LNEYA HALIO touchscreen, key lock, USB port, DB9 serial connector, and orange hose routing over cabinet top

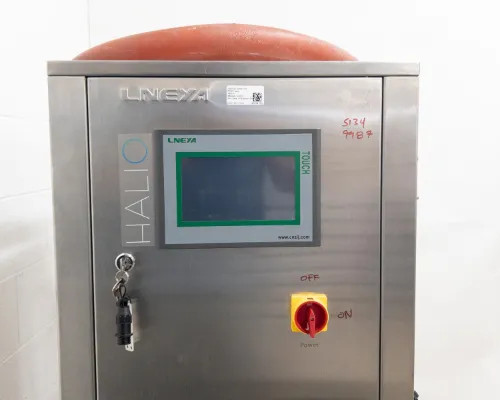

  • Front panel close-up showing LNEYA nameplate, HALIO touchscreen label, product barcode label, and handwritten inventory notation
  • Close-up of LNEYA embossed nameplate on stainless front panel with partially legible product label showing model Sundi-255 and manufacture date

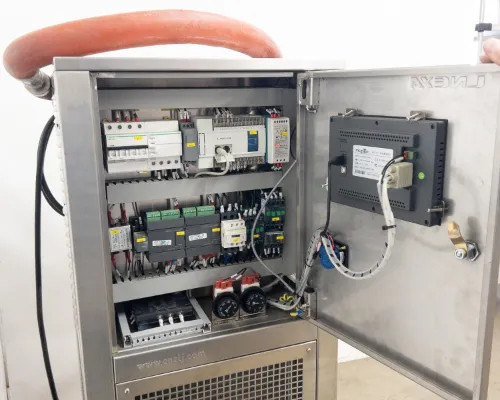

  • Interior electrical cabinet open showing circuit breakers, contactors, PLC modules, and MagaTPC HMI panel mounted on door interior

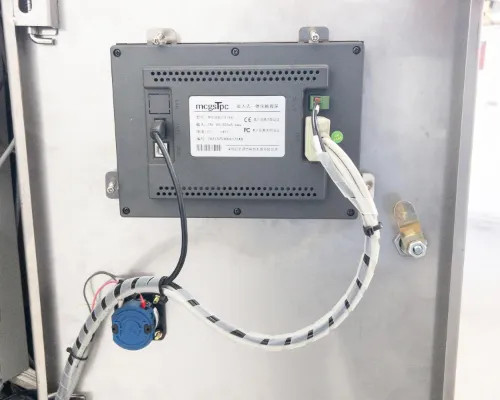

  • Rear of MagaTPC touchscreen HMI module showing wiring connections, FC and CE certification marks, and fluid fitting at right
  • Interior electrical panel close-up showing terminal blocks, Schneider contactors, solid-state relay (LHEX-3-90402), and two Jadvar analog gauges in lower drawer

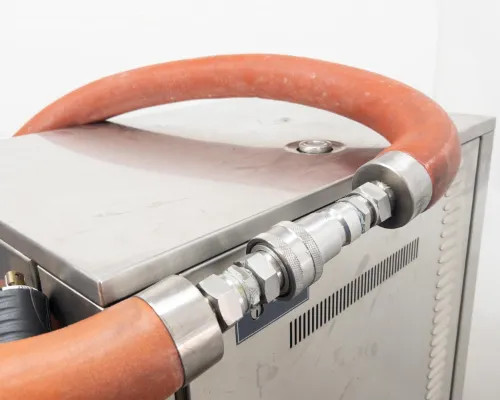

  • Close-up of top-panel hose connections showing orange silicone hose with stainless steel quick-connect fittings and exhaust valve area
  • Interior electrical panel upper section showing Schneider circuit breakers, PLC (IL PANEL PLC label visible), Mean Well power supply, and relay modules
  • Right side view of Lneya Sundi-255 showing ventilation mesh panel, lower compressor compartment, and orange silicone hose with quick-connect fittings
  • Rating plate close-up reading: Model Sundi-255, Temp Range -10 to 200°C (note: range per label), Heating Power 5.5kW, Pump Flow 55L/min, Refrigerant R404A, Power 208V 60Hz 3Phase, Dimensions 550x680x1450mm, CE mark
  • Rear view of Lneya Sundi-255 showing back panel, ventilation mesh, fluid ports, and orange silicone hose routing

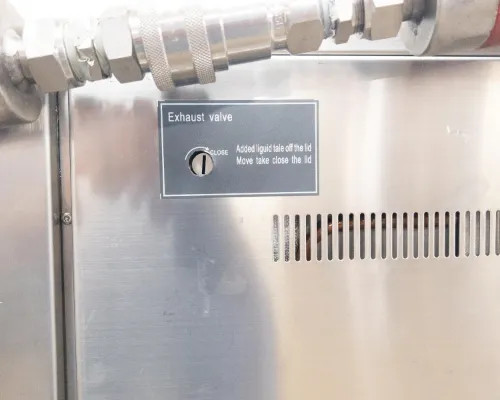

  • Close-up of top panel exhaust valve labeled 'Exhaust valve / GLOBE' with instructional text for liquid fill and lid operation

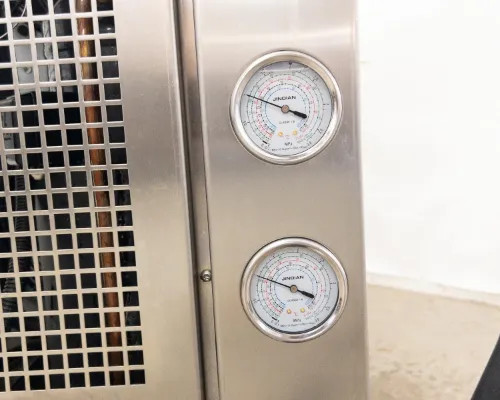

  • Two Jadvar analog refrigerant pressure gauges (high side and low side) panel-mounted on right side of Lneya Sundi-255

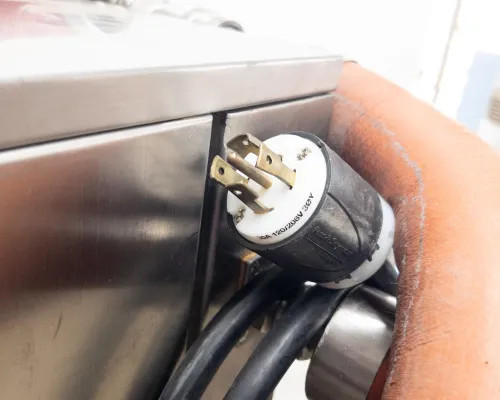

  • Close-up of NEMA L15-30P twist-lock power plug (208-240V, 30A, 3-phase) with black power cable

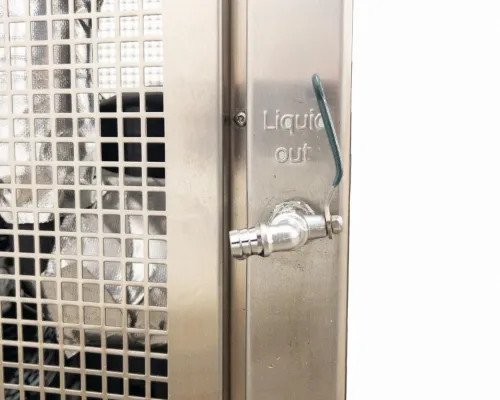

  • Close-up of stainless 'Liquid out' port with ball valve and quick-connect fitting on right side lower panel of Lneya Sundi-255
$5,500.00
Was: $11,000.00
Current Stock: 1

Sold Out

Description

Lneya Sundi-255 Cooling Heating Recirculation Chiller -25°C +200°C 208V 3Ph

Recirculation chiller for process temperature control across industrial and laboratory applications. Capable of both heating and cooling with a temperature range from -25°C to +200°C.

Specifications & What's Included

  • Model: Sundi-255 | Power: 208V, 60Hz, 3-Phase (30A NEMA L15-30P)
  • Cooling Capacity: 5.5 kW @ 20°C, 4.5 kW @ -5°C, 2.8 kW @ -20°C
  • Heating Power: 5.5 kW | Pump Flow: 55 L/min
  • Refrigerant: R404A | Dimensions: 550 × 680 × 1450mm (freestanding cabinet on casters)
  • Two panel-mounted Jadvar analog pressure gauges (high/low side)
  • Includes silicone circulation hose with stainless quick-connect fittings

Applications

Recirculation chillers are used for maintaining precise process temperatures in reactors, lab equipment, semiconductor manufacturing, and industrial test systems. This unit supports both cooling and heating cycles, making it suitable for temperature cycling protocols and process control requiring tight thermal management.

Condition: For Parts or Not Working
This Lneya Sundi-255 Cooling and Heating Recirculation Chiller powers on, but the touchscreen (LNEYA HALIO / MagaTPC HMI panel) is cracked and does not function. As a result, the unit cannot be operated or fully tested in its current state and is being sold as-is for parts or repair. The stainless steel cabinet exterior is in good cosmetic shape with typical light surface wear. The orange silicone circulation hose and stainless quick-connect fittings are included. The electrical cabinet interior appears intact with no obviously missing components. Both analog refrigerant pressure gauges are present and intact. The power cord terminates in a NEMA L15-30P 3-phase twist-lock plug. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LNEYA
Model:
Sundi-255
MPN:
Sundi-255
Type:
Cooling & Heating Recirculation Chiller
SKU:
53164
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes circulation hose. Powers on; touchscreen cracked and non-functional.
Country/Region of Manufacture:
China
Temperature Range:
-25°C to +200°C
Power Supply:
208V, 60Hz, 3-Phase
Heating Power:
5.5 kW
Cooling Capacity at 20°C:
5.5 kW
Cooling Capacity at -5°C:
4.5 kW
Cooling Capacity at -20°C:
2.8 kW
Pump Flow Rate:
55 L/min
Refrigerant:
R404A
Dimensions:
550mm x 680mm x 1450mm
Form Factor:
Freestanding / Cabinet on Casters
Display / Interface:
LNEYA HALIO touch screen (MagaTPC HMI — cracked/non-functional)
Phase:
Three Phase
Frequency:
60 Hz
Certifications:
CE
Application / Use Case:
Process temperature control, lab, reactor, industrial cooling/heating
Included Accessories:
Silicone circulation hose with stainless quick-connect fittings
Refrigerant Gauges:
Two Jadvar analog pressure gauges (high/low side), panel-mounted
Exhaust Valve:
Globe-type exhaust valve, top panel
Liquid Out Port:
Stainless quick-connect ball valve, labeled 'Liquid out'
Power Connector:
NEMA L15-30P twist-lock plug (208-240V, 30A, 3-phase)
Condition Notes:
Lneya Sundi-255 Recirculation Chiller powers on but touchscreen is cracked and non-functional. Sold as-is for parts or repair. Includes circulation hose and fittings. Cabinet exterior in good cosmetic condition.
