Yingli Energy

Yingli Energy YL240P-29b 240W Polycrystalline Solar Panel PV Module 29.5V 8.14A

(No reviews yet) Write a Review
SKU:
52911
MPN:
YL240P-29B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
125.00 LBS
Shipping:
Calculated at Checkout

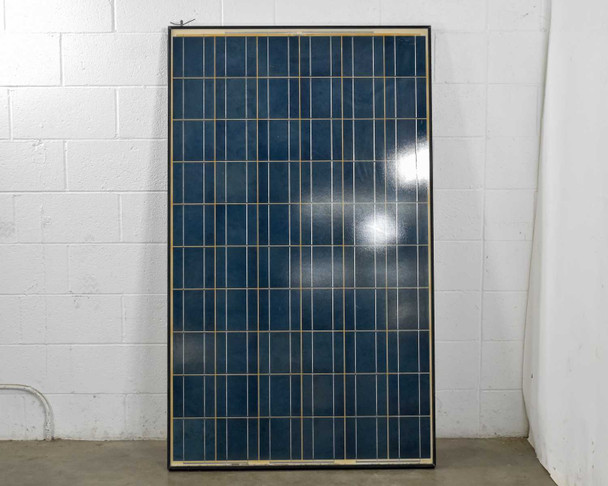

  • Yingli Energy YL240P-29b 240W polycrystalline solar panel – full front face showing 60-cell blue PV array with aluminum frame, leaning against wall
  • Yingli Energy YL240P-29b rating plate label showing module type, rated power 240W, Vmp 29.5V, Imp 8.14A, Voc 37.5V, Isc 8.65A, and max system voltage
  • Close-up of upper edge of Yingli YL240P-29b solar panel showing aluminum frame corner and top row of polycrystalline cells
  • Barcode label on Yingli YL240P-29b solar panel frame showing serial number 114109010627

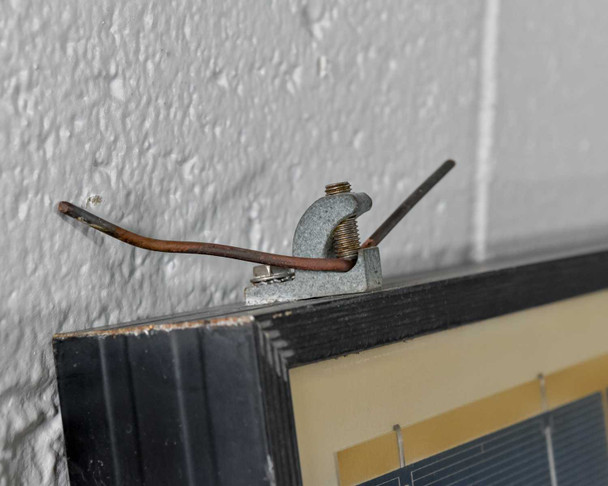

  • Close-up of mounting hardware on top edge of Yingli solar panel frame showing cut cable end that requires new MC4 connector
  • Rear view of Yingli YL240P-29b solar panel showing white backsheet, aluminum frame, junction box, and two output cables looped at top
  • Close-up of ZJRH PV-JB1700 IP65-rated junction box on rear of Yingli YL240P-29b solar panel with dual cable exits
  • Close-up of MC4-style connector on one output cable of Yingli YL240P-29b solar panel — cable end is cut and requires a new MC4 connector
  • Corner detail of Yingli YL240P-29b solar panel rear frame showing second MC4-style output connector in good condition
$100.00
Was: $325.00
Current Stock: 13

Sold Out

Description

Yingli Energy YL240P-29b 240W Polycrystalline Solar Panel PV Module 29.5V 8.14A

Polycrystalline silicon solar panel rated for 240W peak power output. Generates DC electricity when exposed to sunlight for use in grid-tied or off-grid photovoltaic systems.

Specifications & What's Included

  • Model: YL240P-29b | Power Output: 240W (Peak)
  • Voltage at Pmax: 29.5V | Current at Pmax: 8.14A
  • Open-Circuit Voltage: 37.5V | Short-Circuit Current: 8.65A
  • Module Efficiency: 14.69% | 60 Polycrystalline Cells
  • Connector: MC4 (one cable requires new connector crimped on)
  • Max System Voltage: 1000VDC | Max Series Fuse: 15A
  • Dimensions: 64.96" x 38.98" x 1.97" | Anodized Aluminum Frame
  • Wind Load: 2400Pa | Snow Load: 5400Pa | Fire Rating: Class C

Applications

Polycrystalline modules of this type are used in residential and commercial grid-tied PV arrays, utility-scale installations, and off-grid systems. This 240W panel was standard in mid-2000s solar deployments and integrates into systems using 1000V combiner boxes and standard MC4 connectors. Compatible with most traditional PV racking, inverters, and system architectures from that era.

Condition: Used
This Yingli Energy YL240P-29b 240W polycrystalline solar panel was recently removed from a working solar installation during a system upgrade. The panel itself is in good used condition — the cells, frame, and glass appear intact with no visible cracking or delamination. One of the two output cables has been cut and will need a new MC4 connector crimped on before the panel can be reconnected; the second cable and MC4 connector appear intact. The rear junction box (ZJRH PV-JB1700, IP65-rated) is present and undamaged. The aluminum frame shows typical outdoor service wear. Please review our photos carefully and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Yingli Energy
Model:
YL240P-29b
MPN:
YL240P-29b
Type:
Polycrystalline Solar Panel / PV Module
SKU:
52911
Country/Region of Manufacture:
China
Power Output:
240W (Peak)
Cell Type:
Polycrystalline Silicon
Number of Cells:
60
Voltage at Pmax (Vmp):
29.5V
Current at Pmax (Imp):
8.14A
Open-Circuit Voltage (Voc):
37.5V
Short-Circuit Current (Isc):
8.65A
Max System Voltage:
1000VDC (UL)
Max Series Fuse Rating:
15A
Module Efficiency:
14.69%
Power Tolerance:
0 to +3%
Connector Type:
MC4 (one cable cut — needs new MC4 connector)
Junction Box:
ZJRH PV-JB1700, IP65
Frame:
Anodized Aluminum Alloy
Dimensions:
64.96" x 38.98" x 1.97"
Fire Rating:
Class C
Wind/Snow Load Rating:
Wind 2400Pa / Snow 5400Pa
Seller Notes:
One output cable is cut and needs a new MC4 connector crimped on.
Condition Notes:
Yingli YL240P-29b 240W solar panel removed from a working system during an upgrade. Panel, glass, and frame are intact. One output cable is cut and needs a new MC4 connector. Second cable and junction box are intact.
View AllClose

Related Products

Related Products

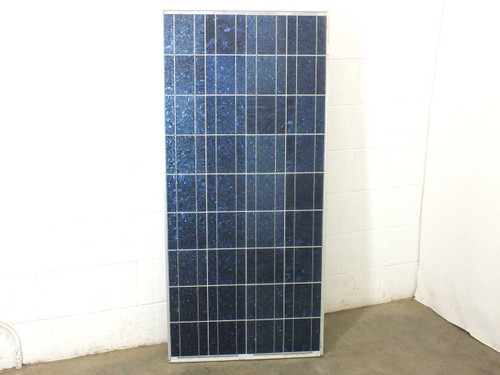

Kyocera KC120-1 120W solar panel – front face showing polycrystalline cell grid, aluminum frame Kyocera KC120-1 solar panel – rear view showing white backsheet and junction box with output cable
