Description

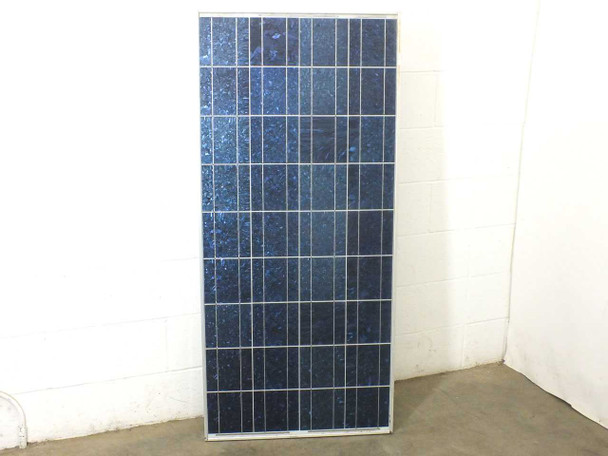

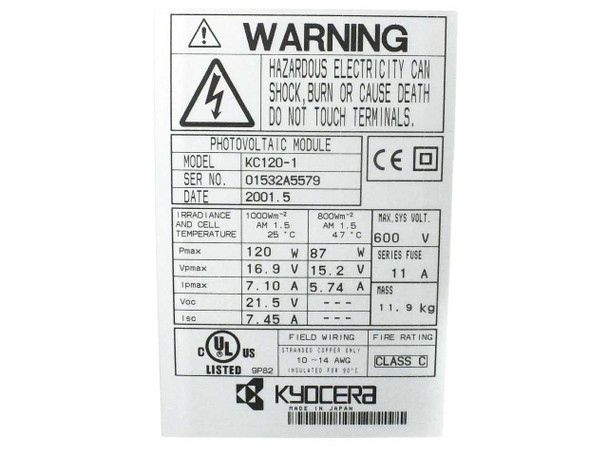

Kyocera KC120-1 120W Solar Panel 12V 16.9V Vmp 7.1A 21.5V Voc Polycrystalline PV
Polycrystalline solar panel rated at 120W peak power. This module converts sunlight to DC electricity for charging batteries or feeding power into solar systems.
Specifications & What's Included
- Peak Power (Pmax): 120W
- Nominal Voltage: 12V
- Max Power Voltage (Vmp): 16.9V at 7.10A
- Open Circuit Voltage (Voc): 21.5V
- Max System Voltage: 600V
- Cell Type: Polycrystalline Silicon
- Dimensions: 25.7" × 56.1" × 1.4"
- Certifications: UL Listed, CE
- Manufactured: May 2001
- Panel only; pigtail output cable attached at junction box; no mounting hardware included
Applications
Suitable for 12V battery charging systems, off-grid installations, and grid-tie configurations. Commonly used in RV, marine, and remote power applications. Compatible with charge controllers and inverters rated for 12-48V systems. Designed for long-term outdoor operation.
Condition: Used

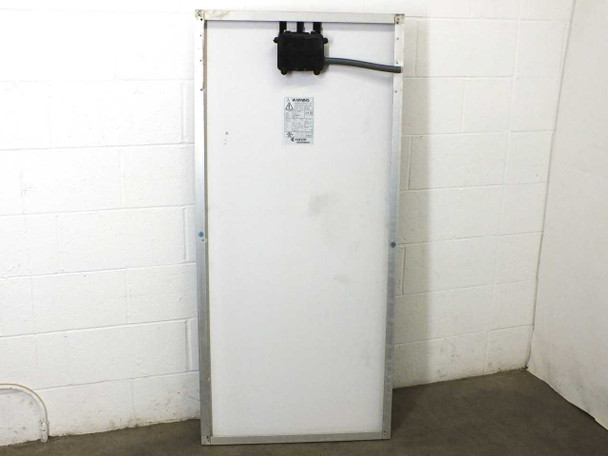

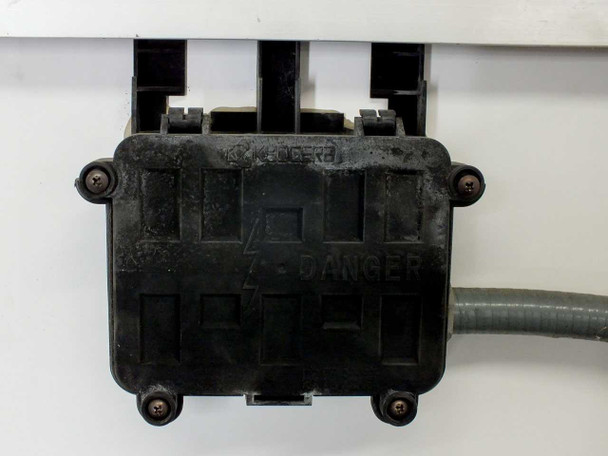

This Kyocera KC120-1 120W polycrystalline solar panel has been tested and is in working order. It came out of a functioning solar system that was upgraded to newer panels. The cells are intact with no visible cracks or delamination. The aluminum frame is straight and undamaged. The junction box on the rear is secure with the output lead attached. The cell surface shows some light soiling and minor weathering consistent with outdoor use — normal for a panel of this age and nothing that affects output. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Kyocera KC120-1 120W polycrystalline solar panel has been tested and is in working order. It came out of a functioning solar system that was upgraded to newer panels. The cells are intact with no visible cracks or delamination. The aluminum frame is straight and undamaged. The junction box on the rear is secure with the output lead attached. The cell surface shows some light soiling and minor weathering consistent with outdoor use — normal for a panel of this age and nothing that affects output. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Kyocera |
Model: |
KC120-1 |
MPN: |
KC120-1 |
Type: |
Polycrystalline Solar Panel / Photovoltaic Module |
SKU: |
52517 |
Condition: |
Used – Inspected and Tested |
Peak Power (Pmax): |
120W |
Nominal Voltage: |
12V |
Max Power Voltage (Vmp): |
16.9V |
Max Power Current (Imp): |
7.10A |
Open Circuit Voltage (Voc): |
21.5V |
Short Circuit Current (Isc): |
7.45A |
Max System Voltage: |
600V |
Series Fuse Rating: |
11A |
Cell Technology: |
Polycrystalline Silicon |
Dimensions: |
25.7" x 56.1" x 1.4" (W x L x D) |
Fire Rating: |
Class C |
Certifications: |
UL Listed, CE |
Country/Region of Manufacture: |
Japan |
Date of Manufacture: |
2001.5 (May 2001) |
Application: |
Battery Charging, Off-Grid Solar, Grid-Tie Systems |
Seller Notes: |
Panel only; no mounting hardware included. Pigtail output cable attached at junction box. |
Condition Notes: |
Kyocera KC120-1 120W solar panel. Tested and in working order. Pulled from a functioning solar system upgraded to new panels. Cells intact, frame straight, junction box secure. Light surface soiling/weathering consistent with outdoor use. |
