Description
Schuco S 180-SPU-4 Solar Panel 180W 24V Polycrystalline MC4 Photovoltaic Module
The Schuco S 180-SPU-4 is a 180-watt polycrystalline silicon photovoltaic module rated at 24 volts nominal, designed for rack-mounted installation in grid-tied and off-grid solar power systems. It features a standard MC4 (Multicontact Type 4) output connector, an anodized aluminum frame, and a maximum system voltage rating of 600V DC. Made in Japan and UL listed, this is a full-size residential and commercial-grade panel from Schuco's SPU series.
Specifications & What's Included
- Model: Schuco S 180-SPU-4
- Cell Type: Polycrystalline Silicon
- STC Power Rating (Pmax): 180W
- PTC Power Rating: 161.6W
- Warranted Minimum Pmax: 171W
- Peak Efficiency: 13%
- Power Tolerance: -5% / +5%
- Number of Cells: 50
- Open Circuit Voltage (Voc): 30.4V
- Max Power Voltage (Vmp): 24.2V
- Short Circuit Current (Isc): 8.03A
- Max Power Current (Imp): 7.45A
- Temp. Coefficient of Power: -0.45%/K
- Temp. Coefficient of Voltage: -0.104V/K
- Series Fuse Rating: 15A
- Minimum Bypass Diode (If): 12.5A
- Maximum System Voltage: 600V DC
- Output Connector: MC4 (Multicontact Connector Type 4)
- Dimensions: 65.3 in L × 32.8 in W × 1.8 in D (1,658 × 834 × 46 mm)
- Power per Unit Area: 12.1 W/ft² (130.2 W/m²)
- Installation Method: Rack-Mounted
- Certifications: UL Listed (3MA9 E245011), Fire Rating Class C
- Country of Manufacture: Japan
- Includes: Panel with attached MC4 output cable leads
Applications
The Schuco S 180-SPU-4 is a standard full-size photovoltaic module suitable for rooftop, ground-mount, and rack-mounted solar installations. At 180W / 24V, it is commonly used in residential and small commercial grid-tied systems, off-grid battery charging setups, and RV or marine solar arrays requiring a 24V nominal configuration. The 600V maximum system voltage rating makes it compatible with typical string inverter configurations used in North American residential and commercial installations. Schuco (now part of the Viessmann Group) produced the SPU series as part of their solar building integration line during the 2000s and early 2010s — these panels remain in active use in both permanent installations and replacement/expansion applications. The MC4 connector is the industry-standard locking DC connector used on virtually all modern solar panels, making this module straightforward to integrate into new or existing systems.

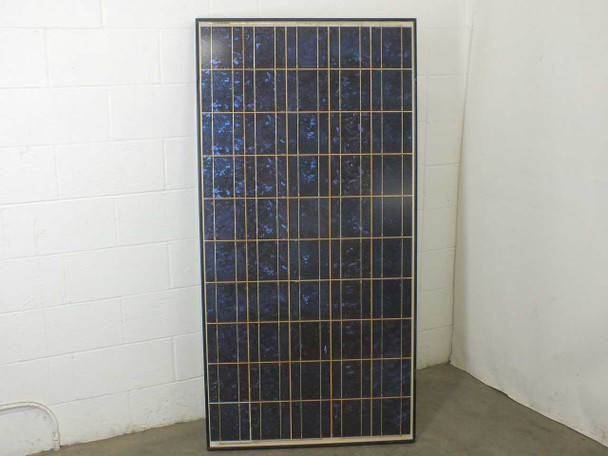

This Schuco S 180-SPU-4 180W polycrystalline solar panel has been tested and is in working order. The front cell surface shows some surface-level marks and light debris visible in the close-up photos — consistent with prior outdoor use — but the cells and frame appear structurally sound with no cracks or broken cells observed. The aluminum frame is intact. The rear backsheet is clean and undamaged, and the MC4 output cable leads are present and connected. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Schuco |
Model: |
S 180-SPU-4 |
MPN: |
S 180-SPU-4 |
Type: |
Polycrystalline Solar Panel / Photovoltaic Module |
SKU: |
52516 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes attached MC4 output cable leads. Tested and in working order. |
Country/Region of Manufacture: |
Japan |
Cell Type: |
Polycrystalline Silicon |
Maximum Power (Pmax): |
180W (STC) |
PTC Power Rating: |
161.6W |
Warranted Min. Pmax: |
171W |
Open Circuit Voltage (Voc): |
30.4V |
Max Power Voltage (Vmp): |
24.2V |
Short Circuit Current (Isc): |
8.03A |
Max Power Current (Imp): |
7.45A |
Series Fuse Rating: |
15A |
Maximum System Voltage: |
600V |
Peak Efficiency: |
13% |
Number of Cells: |
50 |
Power Tolerance: |
-5% / +5% |
Temp. Coefficient of Power: |
-0.45%/K |
Temp. Coefficient of Voltage: |
-0.104V/K |
Output Connector Type: |
MC4 (Multicontact Connector Type 4) |
Dimensions (L x W x D): |
65.3 x 32.8 x 1.8 in (1658 x 834 x 46 mm) |
Installation Method: |
Rack-Mounted |
Certifications: |
UL Listed (3MA9 E245011), Fire Rating Class C |
Form Factor: |
Flat Panel / Rack-Mounted |
Power per Unit Area: |
12.1 W/ft² (130.2 W/m²) |
Condition Notes: |
Schuco S 180-SPU-4 180W polycrystalline solar panel. Tested and in working order. Surface marks on cells from prior use; no cracked or broken cells observed. Frame intact, MC4 leads present. |
