SMC CDM2L32-750A-C73C Pneumatic Cylinder 32mm Bore 750mm Stroke w/ JAF30-10-125
The SMC CDM2L32-750A-C73C is a foot-mount, double-acting pneumatic cylinder from SMC's CDM2 series, featuring a 32 mm bore and a 750 mm (approximately 3-foot) stroke. It is rated for a maximum operating pressure of 1.0 MPa and is equipped with two SMC D-C73C solid-state position sensors mounted along the barrel for end-of-stroke detection. A JAF30-10-125 SMC clevis joint is fitted to the rod end, allowing flexible angular connection to the driven load.
Specifications & What's Included
- Manufacturer: SMC
- Full Model Number: CDM2L32-750A-C73C
- Base Model: CDM2B32-750A
- Series: CDM2 (Compact Cylinder, Standard)
- Bore Diameter: 32 mm
- Stroke Length: 750 mm
- Maximum Operating Pressure: 1.0 MPa
- Action Type: Double Acting
- Mounting Style: Foot Mount (L-bracket style, both ends)
- Barrel Material: Stainless steel tube
- Position Sensors: Two SMC D-C73C solid-state sensors (one per end), with cables attached; labeled X45A-RS8 and X45A-RS11
- Included Accessory: SMC JAF30-10-125 clevis joint / rod end (M10×1.25 thread), with mounting plate

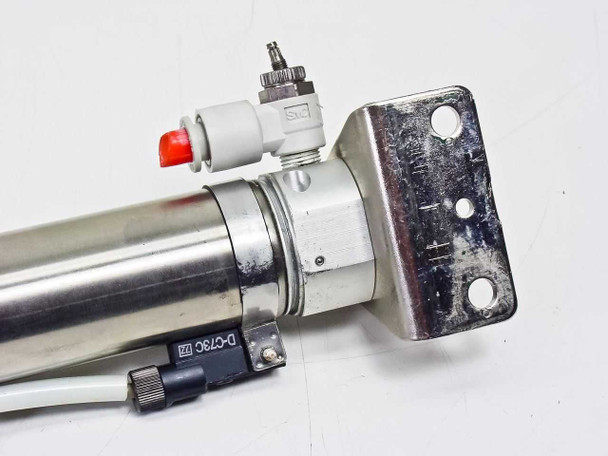

- Port Fittings: SMC push-in speed controller fittings visible at both end caps
- Country of Manufacture: China
Applications
SMC CDM2 series cylinders are standard pneumatic linear actuators used across a wide range of industrial automation and manufacturing applications. With a 32 mm bore and 750 mm stroke, this cylinder is suited for medium-force, long-travel linear motion tasks such as part transfer, clamping, pressing, pushing, and gating operations on automated production lines. The D-C73C position sensors allow easy integration with PLCs and motion controllers for end-of-stroke feedback and sequencing. The JAF30-10-125 clevis joint accommodates slight angular misalignment between the cylinder rod and the driven mechanism, which is common in linkage and pivot-arm setups. SMC is one of the largest pneumatic component manufacturers in the world, and the CDM2 series is a widely deployed platform in semiconductor fabrication, automotive assembly, food processing, packaging machinery, and general factory automation environments.
This SMC CDM2L32-750A-C73C pneumatic cylinder has been inspected and appears to be in good condition. The stainless steel barrel shows light surface marks consistent with normal use but no significant damage. The JAF30-10-125 clevis joint and both D-C73C position sensors are present and attached. The foot mount brackets appear intact and the port fittings show no obvious damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
