Description
Singulus Technologies TC 47 Synchronous Servo Module Georgii Kobold Motor 230V

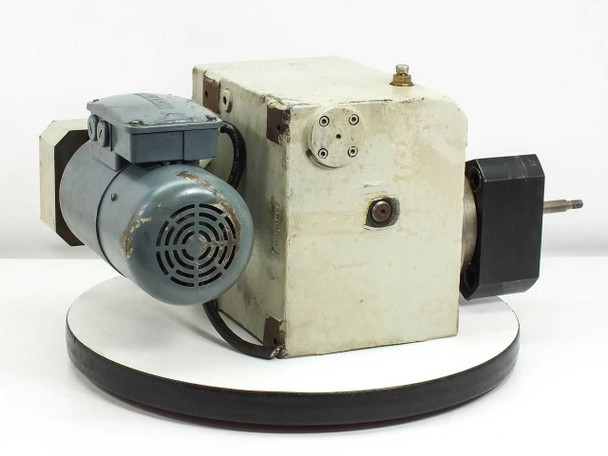

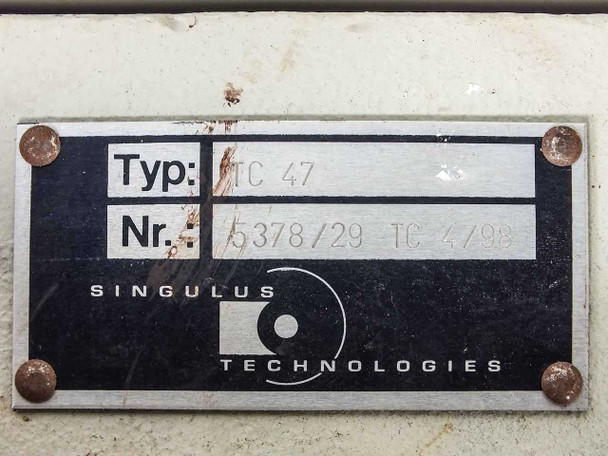

The Singulus Technologies TC 47 is a synchronous servo module used in Singulus disc replication and manufacturing machinery. The unit integrates a Georgii Kobold three-phase induction motor with an internal belt-and-pulley gear reduction drive, delivering controlled rotational output for precision disc handling operations. The TC 47 is identified by the manufacturer's data plate and is a direct Singulus OEM assembly dating from April 1998.
Specifications & What's Included
- Manufacturer: Singulus Technologies
- Model / Type: TC 47
- Serial / Nr.: 5378/29 TC 4/98
- Manufacture Date: April 1998

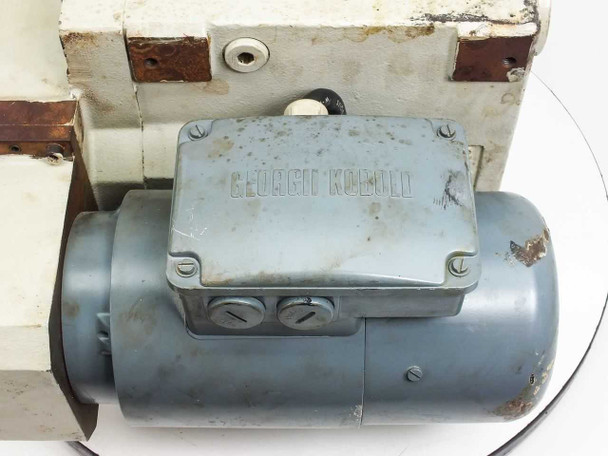

- Motor: Georgii Kobold KOD 588 1B MB/G/S19
- Motor Voltage: 230/400V
- Motor Power: 1.12 kW / 0.19 HP
- Motor Speed: 700 / 850 RPM
- Drive Type: HTD synchronous timing belt and gear reduction drive
- Drive Belt: PowerGrip HTD 375-5M (Gates or equivalent)

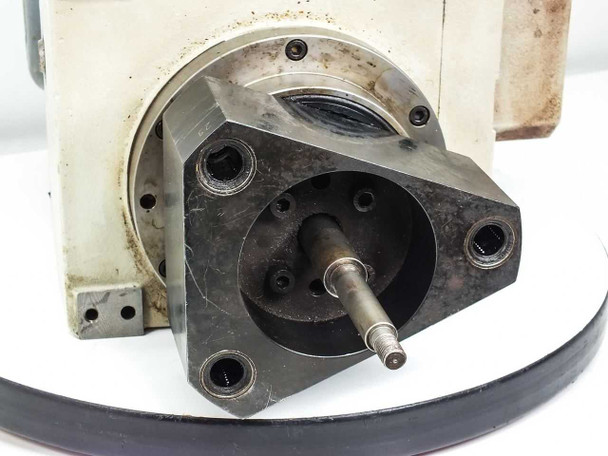

- Output: Machined shaft with flanged face and bolt-pattern mounting

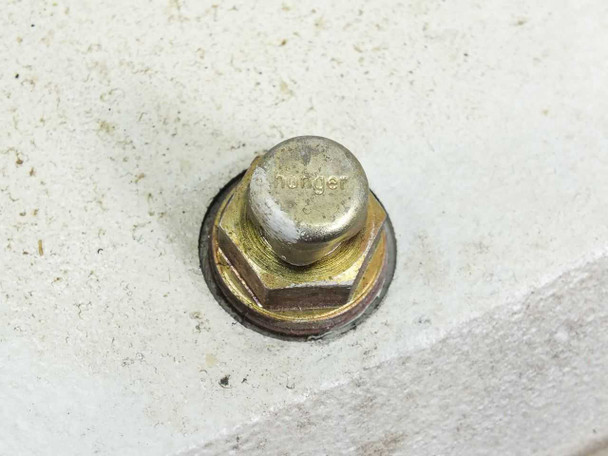

- Oil/Lubrication: Hunger-branded oil plug on housing top

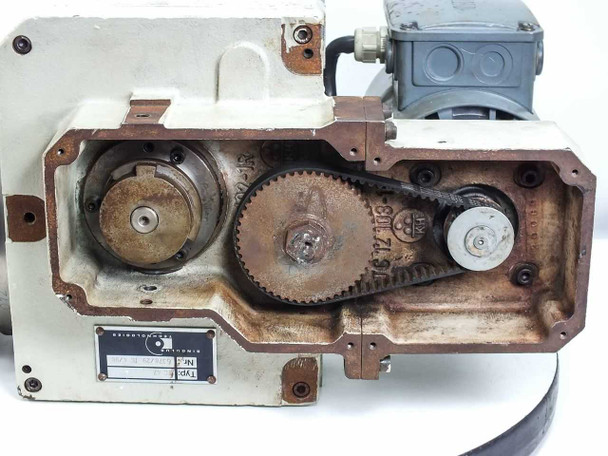

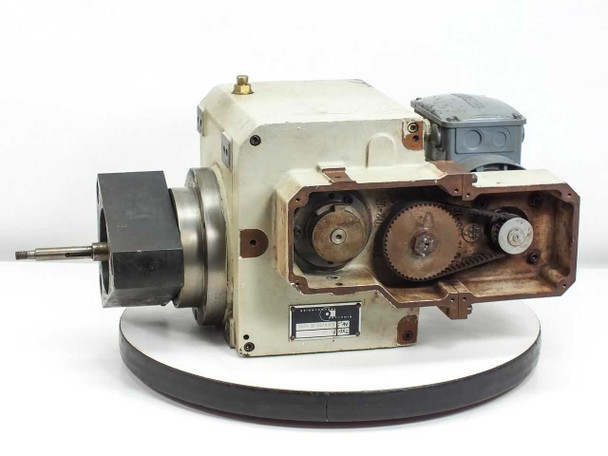

- Note: Side panel for belt and pulley housing is missing (drive train is exposed but intact)
Applications
Singulus Technologies is a German manufacturer known for its automated disc replication systems used in the production of CDs, DVDs, and Blu-ray discs. The TC 47 servo module is an OEM drive assembly from Singulus production-line equipment, where precision synchronous motor drives control disc transport, substrate handling, or similar automated motion tasks within the replication line. Singulus machinery of this era — mid-to-late 1990s — was widely used in commercial disc pressing plants around the world. This type of integrated motor-gearbox module is also relevant to facilities maintaining or refurbishing legacy Singulus lines, or to engineers sourcing a precision synchronous drive assembly for custom industrial automation applications where the motor ratings (230/400V, 1.12 kW, 700–850 RPM) and HTD belt-drive output are suitable.

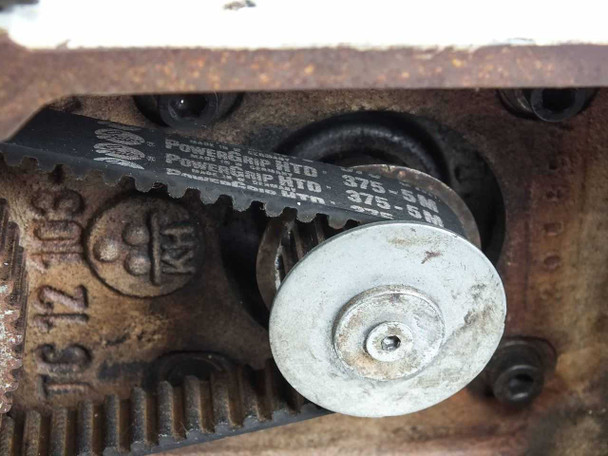

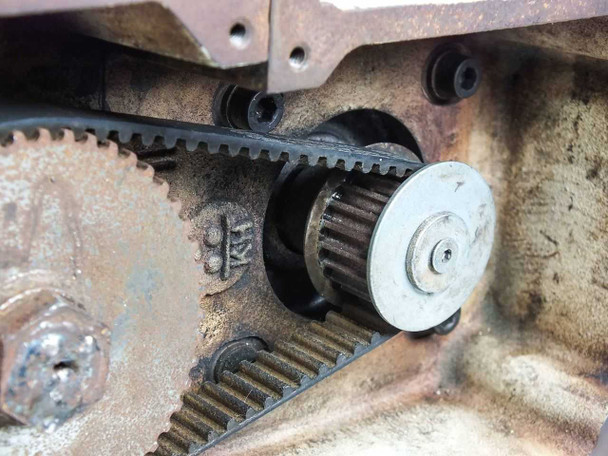

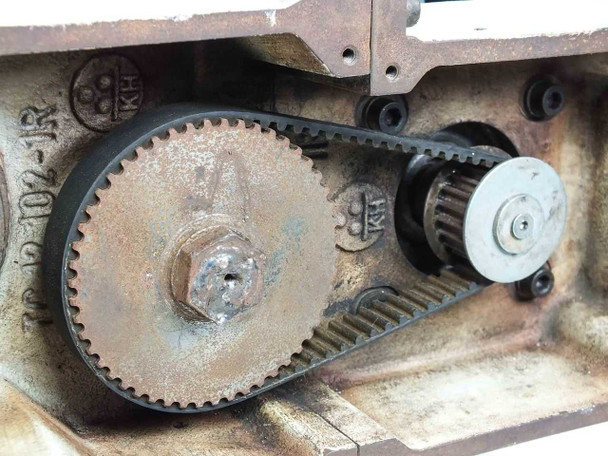

This Singulus Technologies TC 47 Synchronous Servo Module has been inspected and is in good used condition overall. The unit is complete with its Georgii Kobold motor and internal belt-and-pulley drive train intact, but the side panel that covers the belt and pulley housing is missing. The open housing clearly shows the internal gear train, drive sprockets, and PowerGrip HTD 375-5M timing belt, which appear intact. The gears and belt drive components show surface oxidation consistent with the unit's age (manufactured April 1998), and the housing exterior has some rust staining at the edges and mounting corners. The output shaft flange and machined faces are intact with no visible damage. A Hunger-branded oil plug is present on the housing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Singulus Technologies |
Model: |
TC 47 |
MPN: |
5378/29 TC 4/98 |
Type: |
Synchronous Servo Module |
SKU: |
46121 |
Condition: |
Used – Inspected |
Seller Notes: |
Side panel for belt and pulley housing is missing |
Motor Brand: |
Georgii Kobold |
Motor Model: |
KOD 588 1B MB/G/S19 |
Motor Voltage: |
230/400V |
Motor Power Rating: |
1.12 kW / 0.19 HP |
Motor Speed (RPM): |
700 / 850 RPM |
Drive Belt: |
PowerGrip HTD 375-5M synchronous timing belt |
Drive Type: |
Belt and Pulley (HTD timing belt) |
Application: |
DVD / CD disc replication and manufacturing |
Manufacture Date: |
April 1998 |
Country/Region of Manufacture: |
Germany |
Form Factor: |
Standalone Module |
Condition Notes: |
Singulus TC 47 Synchronous Servo Module — inspected, good used condition. Georgii Kobold motor and belt drive train present and intact. Side panel for belt/pulley housing is missing. Surface oxidation on gears/housing; exterior rust staining. |
