Georgii Kobold KOD 568-1B 3-Phase Motor 210-240V 0.25HP w/ Hohner AWA58S Encoder

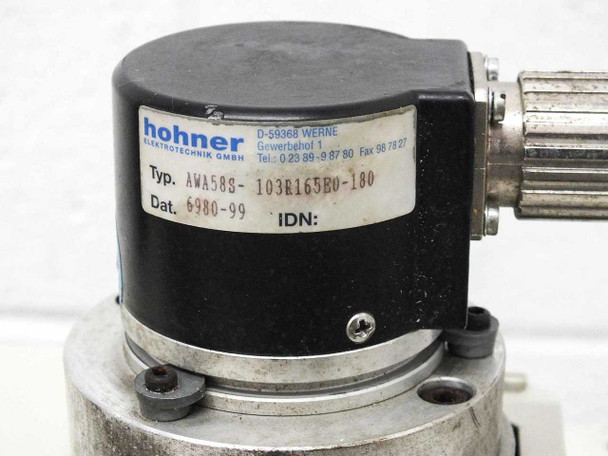

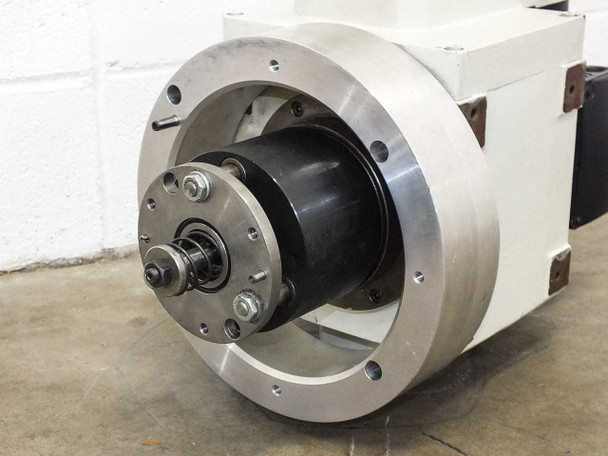

The Georgii Kobold KOD 568-1B is a compact three-phase gearmotor made in Germany by August Heine GmbH & Co. It features an integrated electromagnetic brake (MB15) and mounts a Hohner AWA58S-103R165E0-180 absolute shaft encoder for precise position feedback. The large-diameter output flange is suited to direct mounting on rotary tables, indexing mechanisms, and positioning stages.

Specifications & What's Included

  • Type: KOD 568-1B MB/G/S2/S19/S194/SB/X
  • Ident. No.: 100-670042-1
  • Phase: 3-Phase
  • Voltage: 210–240V (Δ) / 360–420V (Y)
  • Current: 1.2A (Δ) / 0.69A (Y)
  • Power: 0.25 HP
  • Frequency: 50 Hz
  • Insulation: Class F, Tropical
  • Brake: MB15, 8 Nm, 24V = 11W
  • Ambient Temp: 40°C max
  • Standards: VDE 0530
  • Includes: Hohner AWA58S-103R165E0-180 Absolute Shaft Encoder
  • Country of Manufacture: Germany

Applications

Three-phase gearmotors of this type are used in CNC rotary axes, indexing tables, automated positioning systems, and machine tool applications requiring integrated braking and closed-loop position feedback.

View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

Singulus Technologies HC0110S SynchronousServer Module – front and left side view showing circular output spindle hub and mounting brackets Singulus HC0110S SynchronousServer Module – rear view showing Georgii Kobold black motor housing and top-mounted solenoid or brake assembly
Add to Cart
Quick view

Singulus Technologies HC0110S SynchronousServer Georgii Kobold KOD 568 230V 3Ph

Singulus Technologies

$700.00
Was: $1,400.00
Singulus Technologies HC0110S SynchronousServer Georgii Kobold KOD 568 230V 3PhServo module assembly for disc replication equipment. Integrates a Georgii Kobold KOD 568 synchronous motor with HTD...
46108
SKU:
46108
Availability:
Usually ships within 1-2 business days.
Weight:
200.00 LBS
Brand:
Singulus Technologies
Model:
HC0110S
MPN:
HC0110S
Secondary Model:
Georgii Kobold KOD 568 1B MB/G/S2/S19/S194/SB/X
Type:
SynchronousServer Servo Module
SKU:
46108
Condition:
Used – Inspected
Seller Notes:
Module with integrated Georgii Kobold motor and HTD timing belt drive assembly
Country/Region of Manufacture:
Germany
Motor Brand:
Georgii Kobold (August Heine GmbH & Co.)
Motor Model:
KOD 568 1B MB/G/S2/S19/S194/SB/X
Voltage Rating:
230-260V
Phase:
Three Phase
Power Rating:
0.31 HP
Drive Type:
HTD Timing Belt, 450-5M
Connector Type:
Multi-pin industrial connector (Harting-style)
Form Factor:
Freestanding Module / Machine Assembly
Application:
DVD / CD Disc Replication Manufacturing Equipment
Compatible With:
Singulus Technologies disc replication systems
Condition Notes:
Singulus Technologies HC0110S SynchronousServer Module with Georgii Kobold KOD 568 motor. Inspected and in good used condition. Housing shows normal industrial wear. Belt drive and motor intact. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

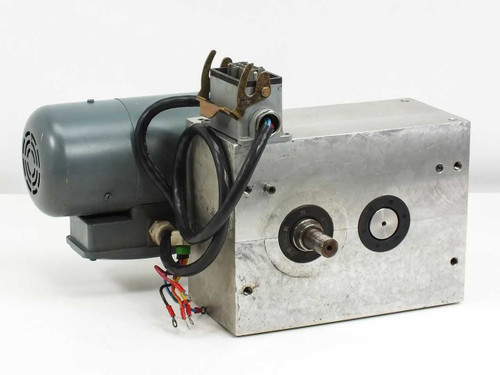

Taktomat IP 80 E parallel shaft indexing drive with Georgii Kobold KOD 446-1A motor — front-right three-quarter view showing input shaft, cam housing, and motor Taktomat IP 80 E indexing drive — rear-left three-quarter view showing output shaft side, motor fan end, and wiring leads
Add to Cart
Quick view

Taktomat IP 80 E Parallel Shaft Indexing Drive Georgii Kobold KOD 446-1A Motor

Taktomat

$425.00
Was: $850.00
Taktomat IP 80 E Parallel Shaft Indexing Drive Georgii Kobold KOD 446-1A MotorCam-controlled parallel shaft indexing drive with integrated three-phase motor. Supplies intermittent indexed motion for...
46118
SKU:
46118
Availability:
Usually ships within 1-2 business days.
Weight:
60.00 LBS
Brand:
Taktomat
Model:
IP 80 E
MPN:
IP 80 E
Secondary Model:
KOD 446-1A MB/G
Type:
Parallel Shaft Indexing Drive
Code:
2-270
Motor Brand:
Georgii Kobold (August Heine GmbH & Co)
Motor Model:
KOD 446-1A MB/G
Motor Ident. Nr.:
10 0534 0001-1
Voltage Rating:
230/400V (Delta/Star)
Power Rating:
0.18 kW
Current Rating:
1.20 / 0.70 A
Frequency:
50/60 Hz
Phase:
Three Phase
Motor Speed:
1400/1700 RPM
Insulation Class:
F
Enclosure Rating:
IP 54
Standard:
VDE 0530
Brake Type:
MB 4
Brake Voltage:
24V DC
Brake Power:
15 W
Brake Torque:
4 Nm
Drive Type:
Cam-Controlled / Kurvengesteuerte
Connector Type:
Heavy-duty multi-pin industrial connector
Country/Region of Manufacture:
Germany
Certifications:
CE
Condition:
Used – Pulled from Working Environment
SKU:
46118
Seller Notes:
Includes indexing drive body, Georgii Kobold motor, and wiring harness with multi-pin connector
Condition Notes:
Taktomat IP 80 E Indexing Drive with Georgii Kobold KOD 446-1A motor. Inspected, in good used condition. Pulled from a working environment where it was in active use and functional. Minor surface wear typical of industrial use. Photos available.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

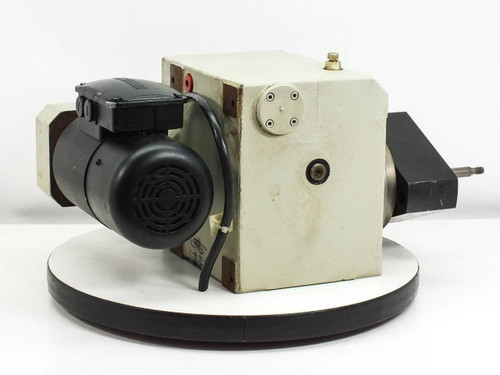

Singulus Technologies TC47 Synchronous Servo Module with Georgii Kobold motor and exposed gear drive — three-quarter front view Singulus Technologies TC47 Servo Module — rear view showing Georgii Kobold motor and mounting plate
Add to Cart
Quick view

Singulus Technologies TC47 Synchronous Servo Module Georgii Kobold KOD 588 230V

Singulus Technologies

$900.00
Was: $1,800.00
Singulus Technologies TC47 Synchronous Servo Module Georgii Kobold KOD 588 230VThe Singulus Technologies TC47 is a synchronous servo module designed for precision rotary drive applications within...
46110
SKU:
46110
Availability:
Usually ships within 1-2 business days.
Weight:
187.00 LBS
Brand:
Singulus Technologies
Model:
TC47
MPN:
7744/147 TC 08/00
Secondary Model:
KOD 588 1B MB/G/S19
Type:
Synchronous Servo Module
SKU:
46110
Motor Brand:
Georgii Kobold
Motor Model:
KOD 588 1B MB/G/S19
Voltage Rating:
230/400V
Power Rating:
1.12 kW / 0.19 HP
Speed (RPM):
700 / 850 RPM
Drive Type:
Belt and Pulley (Toothed Belt)
Proximity Sensor:
Balluff BES 516 (mounted on unit)
Condition:
Used – Inspected; missing side panel for belt/pulley housing
Compatible With:
Singulus DVD/CD disc replication systems
Country/Region of Manufacture:
Germany
Manufacture Date:
August 2000
Seller Notes:
Unit is missing the side panel for belt and pulley housing. Motor and drive train are present.
Form Factor:
Standalone Module / Machine Sub-Assembly
Condition Notes:
Singulus Technologies TC47 Synchronous Servo Module. Inspected, good used condition. Missing side panel for belt/pulley housing; belt drive train exposed. Motor and mechanical components present. Surface corrosion visible on metal parts.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

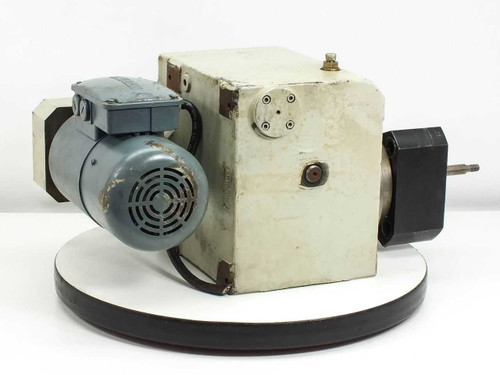

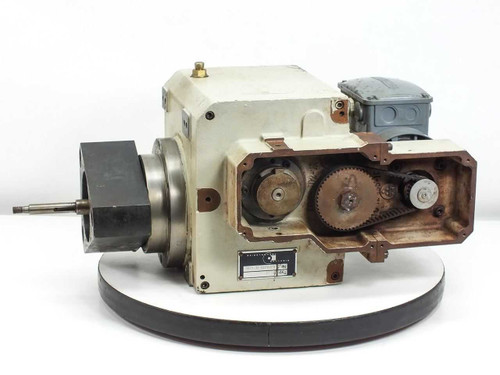

Singulus Technologies TC 47 Synchronous Servo Module – front three-quarter view showing open belt housing with gear train and Georgii Kobold motor Singulus Technologies TC 47 Servo Module – rear three-quarter view showing Georgii Kobold motor mounted on side and output shaft on opposite end
