Singulus Technologies TC47 Synchronous Servo Module Georgii Kobold KOD 588 230V

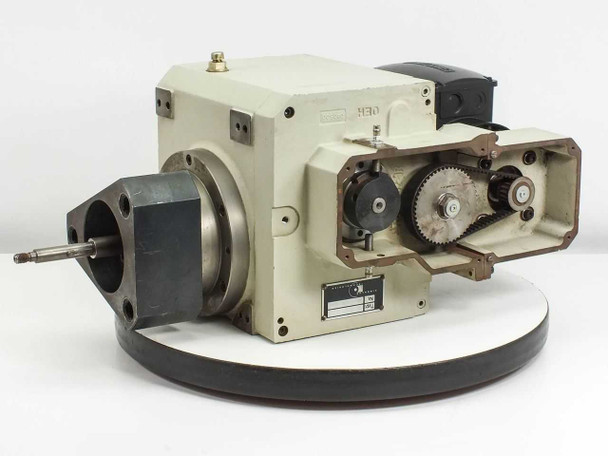

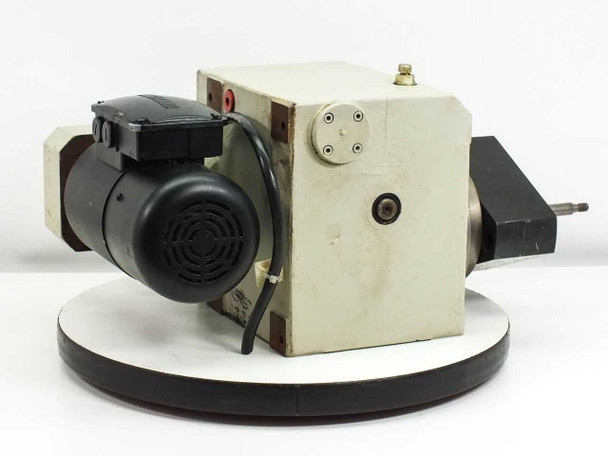

The Singulus Technologies TC47 is a synchronous servo module designed for precision rotary drive applications within Singulus disc replication systems. It integrates a Georgii Kobold KOD 588 synchronous motor with a toothed belt and sprocket drive train to deliver controlled rotational motion to downstream process spindles or transport mechanisms. The unit is manufactured in Germany and dates from August 2000.
Specifications & What's Included
- Manufacturer: Singulus Technologies
- Model / Type: TC47

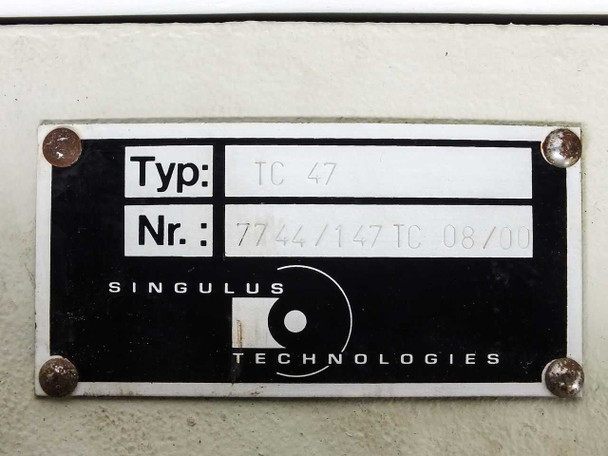

- Serial / Nr.: 7744/147 TC 08/00
- Manufacture Date: August 2000

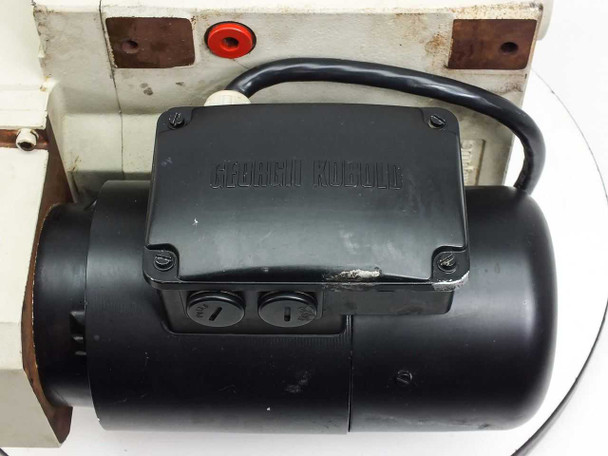

- Motor Brand: Georgii Kobold
- Motor Model: KOD 588 1B MB/G/S19
- Motor Voltage: 230/400V
- Motor Power: 1.12 kW / 0.19 HP
- Motor Speed: 700 / 850 RPM

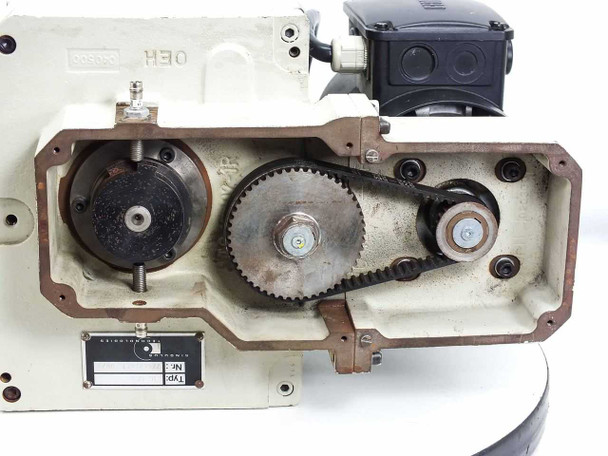

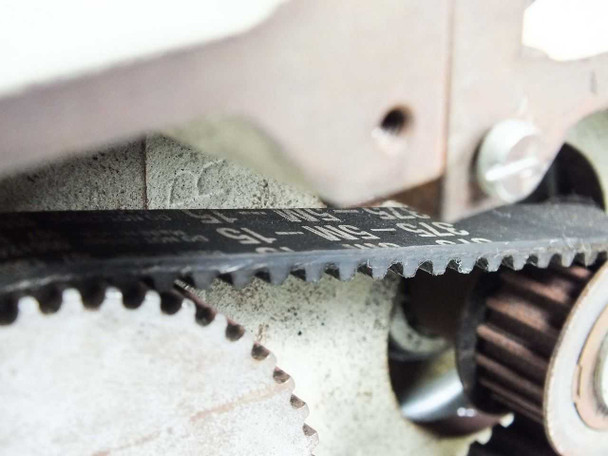

- Drive Type: Toothed timing belt and sprocket (belt drive train)

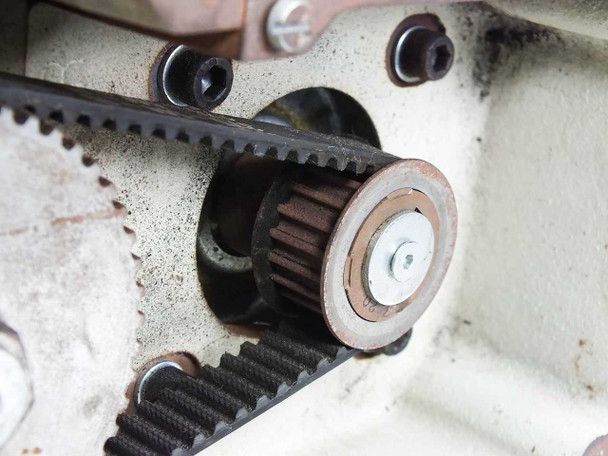

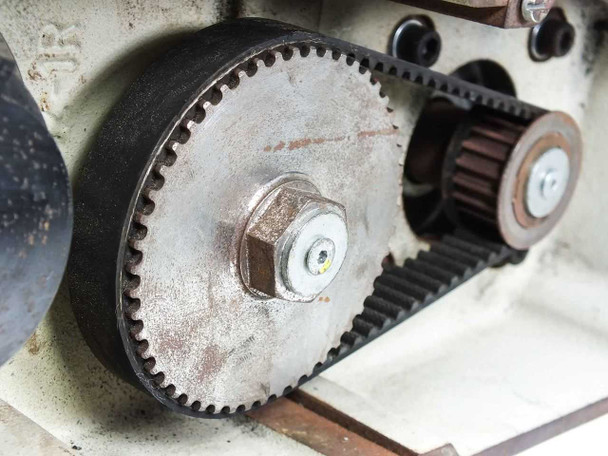

- Sprockets: Large main drive sprocket and smaller idler/tensioner sprocket visible in photos

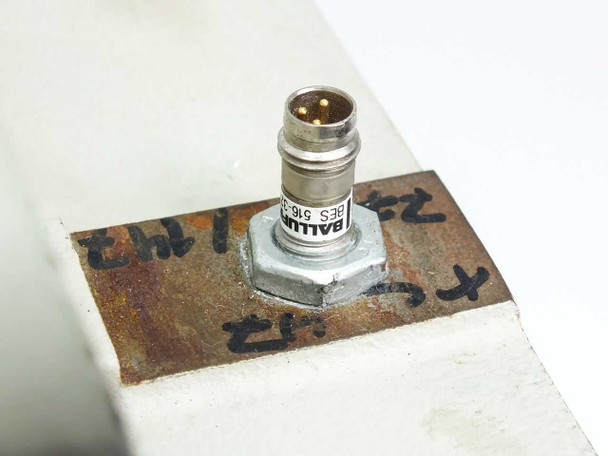

- Proximity Sensor: Balluff BES 516 (mounted on module housing)

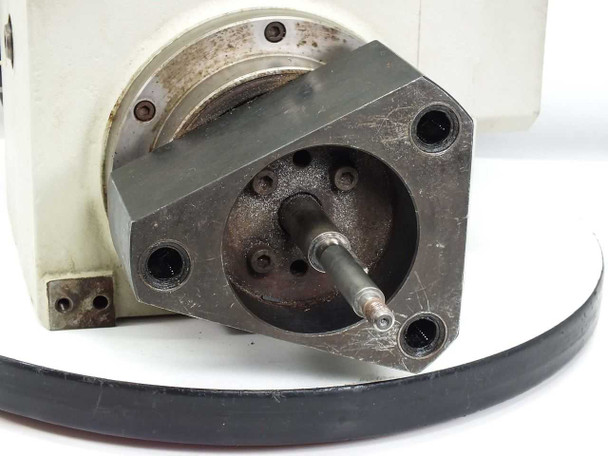

- Output: Shaft with flanged bearing housing

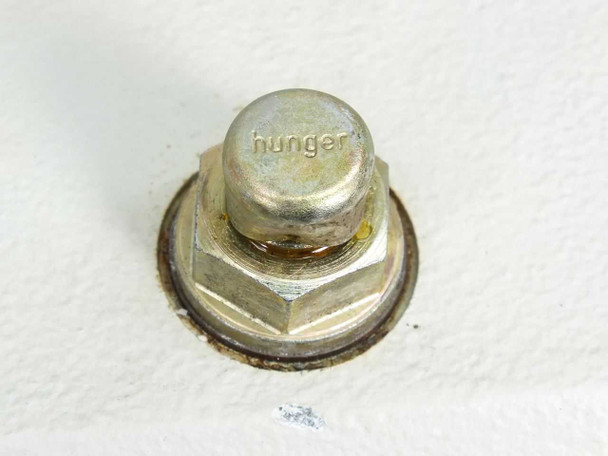

- Oil / Vent Plug: Hunger-branded plug on top of housing
- Note: Side panel for belt and pulley housing is missing — belt drive train is exposed
- Country of Manufacture: Germany
Applications
Singulus Technologies is a German manufacturer known for automated production systems used in optical disc (CD, DVD, Blu-ray) manufacturing, as well as solar cell and pharmaceutical packaging equipment. The TC47 synchronous servo module functions as a precision drive sub-assembly within these automated lines, providing controlled rotational output — typically to a disc transport spindle, stamper drive, or similar mechanism — via a synchronous motor and toothed belt reduction stage. Synchronous motors at this power level are used where consistent speed across load variations is important, such as maintaining disc throughput timing in a high-volume replication line. The Georgii Kobold brand (a German motor manufacturer) is a common supplier to European industrial machinery builders, and their KOD-series compact synchronous motors appear in various precision drive and indexing applications. This module would be of interest to facilities maintaining or repairing Singulus disc replication equipment, as well as integrators sourcing compact synchronous belt-drive assemblies for custom machinery.
This Singulus Technologies TC47 Synchronous Servo Module has been inspected and is in good used condition overall, with one noted deficiency: the side panel that covers the belt and pulley housing is missing, leaving the toothed belt drive train exposed. The motor, belt drive, sprockets, and internal mechanical components are present and intact. The unit shows surface corrosion on several metal components — including the output shaft flange, gear housing area, and the panel around the Balluff proximity sensor — consistent with age and storage. The housing body retains its paint with general shelf wear. The Georgii Kobold KOD 588 motor is present and attached. A Balluff BES 516 proximity sensor is mounted on the housing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Singulus Technologies |
Model: |
TC47 |
MPN: |
7744/147 TC 08/00 |
Secondary Model: |
KOD 588 1B MB/G/S19 |
Type: |
Synchronous Servo Module |
SKU: |
46110 |
Motor Brand: |
Georgii Kobold |
Motor Model: |
KOD 588 1B MB/G/S19 |
Voltage Rating: |
230/400V |
Power Rating: |
1.12 kW / 0.19 HP |
Speed (RPM): |
700 / 850 RPM |
Drive Type: |
Belt and Pulley (Toothed Belt) |
Proximity Sensor: |
Balluff BES 516 (mounted on unit) |
Condition: |
Used – Inspected; missing side panel for belt/pulley housing |
Compatible With: |
Singulus DVD/CD disc replication systems |
Country/Region of Manufacture: |
Germany |
Manufacture Date: |
August 2000 |
Seller Notes: |
Unit is missing the side panel for belt and pulley housing. Motor and drive train are present. |
Form Factor: |
Standalone Module / Machine Sub-Assembly |
Condition Notes: |
Singulus Technologies TC47 Synchronous Servo Module. Inspected, good used condition. Missing side panel for belt/pulley housing; belt drive train exposed. Motor and mechanical components present. Surface corrosion visible on metal parts. |
