Description

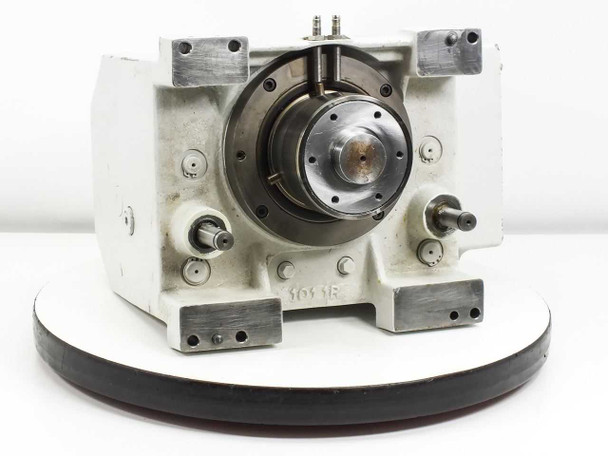

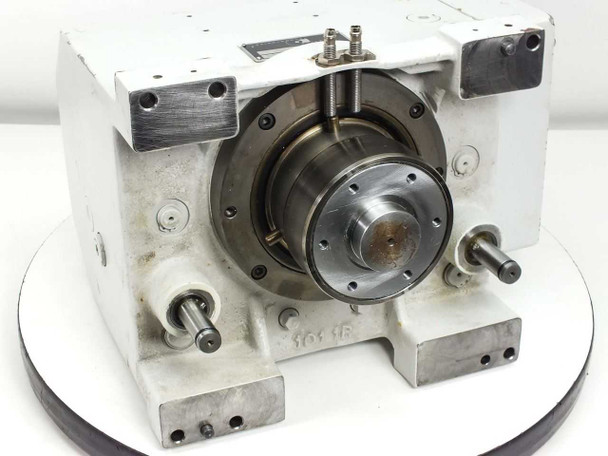

Singulus Technologies TC3-5--03 Synchronous Server Rotary Index Module 101 1R
Rotary index module from Singulus Technologies designed for optical disc manufacturing equipment. This synchronous server module controls precise rotational positioning and indexing using mechanical drive components.
Specifications & What's Included

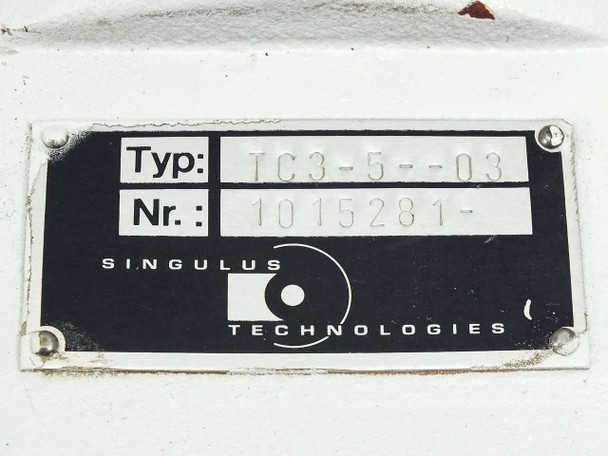

- Model: TC3-5--03 (Secondary: 101 1R)
- Type: Synchronous Server / Rotary Index Module

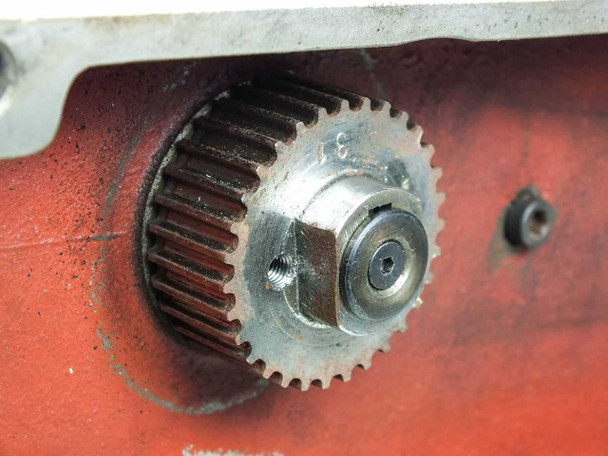

- Drive Components: Spur gear, timing gear, precision rotary output shaft
- Housing: Aluminum alloy body with steel mechanical components

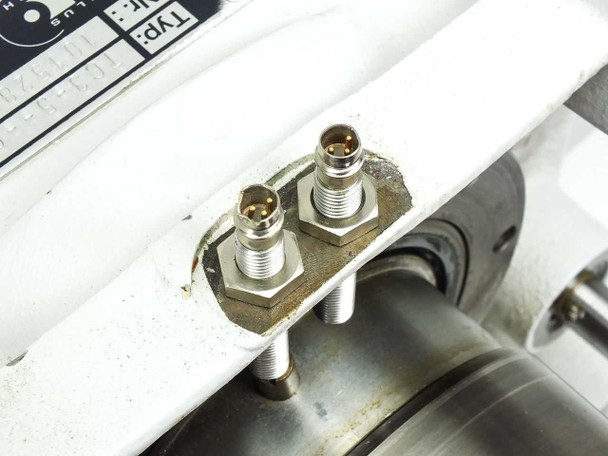

- Connectors: 2x SMA-style coaxial connectors (top-mounted)
- Manufacturer: Singulus Technologies (Germany)
Applications
This module type was used in optical disc manufacturing systems for DVD and CD production. Singulus Technologies equipment typically serves high-volume disc replication and pressing operations. The rotary index function coordinates spindle positioning and mechanical indexing within larger manufacturing automation systems.
Condition: For Parts or Not Working

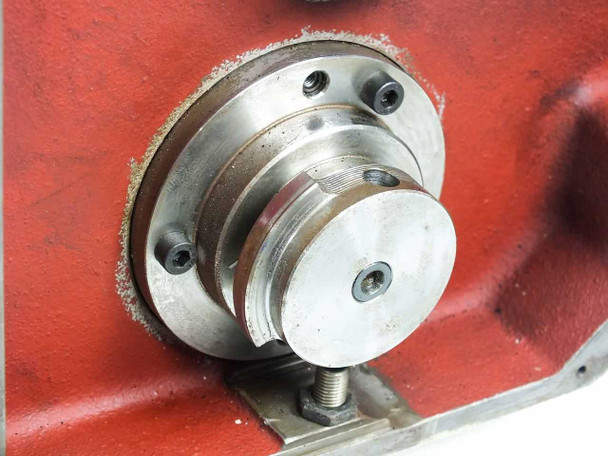

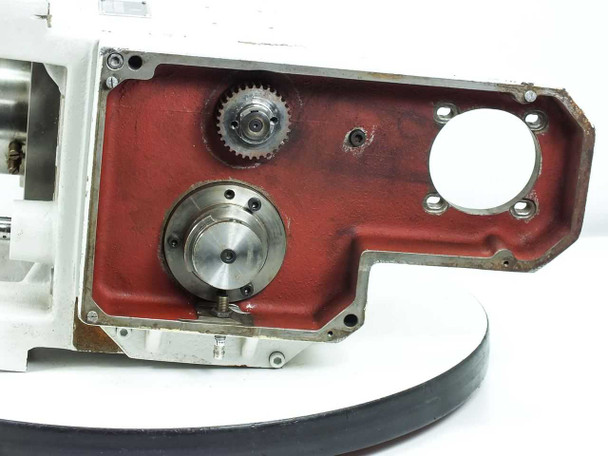

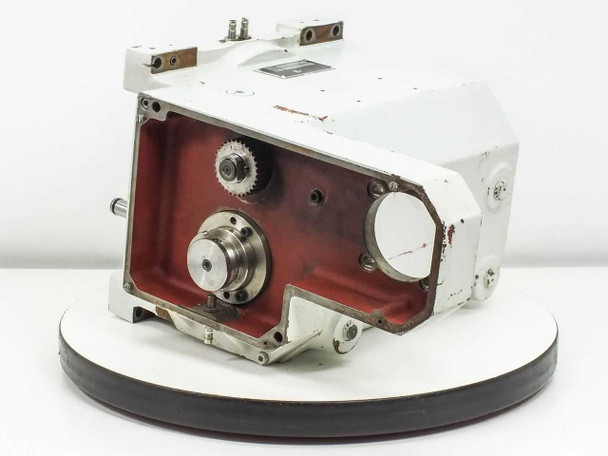

This Singulus Technologies TC3-5--03 Synchronous Server / Rotary Index Module is being sold as-is for parts or repair. It has been visually inspected and appears to be in average to good cosmetic condition overall. The aluminum housing shows general use wear including surface scuffing and some paint chips, most notably on the interior gear cavity walls. The red-painted gear housing interior shows dust accumulation and minor paint wear. Two SMA-style connectors on the top are intact. The gear assembly and rotary output shaft are present and visually intact, though the unit may be missing additional parts and functionality has not been verified. It is not guaranteed to be fully functional. Please view our photo set and contact us if you have any questions.
This Singulus Technologies TC3-5--03 Synchronous Server / Rotary Index Module is being sold as-is for parts or repair. It has been visually inspected and appears to be in average to good cosmetic condition overall. The aluminum housing shows general use wear including surface scuffing and some paint chips, most notably on the interior gear cavity walls. The red-painted gear housing interior shows dust accumulation and minor paint wear. Two SMA-style connectors on the top are intact. The gear assembly and rotary output shaft are present and visually intact, though the unit may be missing additional parts and functionality has not been verified. It is not guaranteed to be fully functional. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Singulus Technologies |
Model: |
TC3-5--03 |
MPN: |
TC3-5--03 |
Secondary Model: |
101 1R |
SKU: |
46171 |
Type: |
Synchronous Server / Rotary Index Module |
Condition: |
As-Is / For Parts or Not Working |
Application: |
DVD / Optical Disc Manufacturing Equipment |
Form Factor: |
Standalone Mechanical Module |
Drive Components: |
Spur gear, timing gear, precision rotary output shaft |
Connector Type: |
SMA-style coaxial connectors (2x, top-mounted) |
Housing Material: |
Aluminum alloy body with steel mechanical components |
Seller Notes: |
Sold as-is for parts or repair. May be missing parts. |
Country/Region of Manufacture: |
Germany |
Condition Notes: |
Singulus TC3-5--03 Rotary Index Module sold as-is for parts or repair. Visually inspected; average to good cosmetic condition. May be missing parts; functionality not verified and not guaranteed. |
